FJ6/ Bare Copper Terminal Bars

Application

Suitable for neutral (N) and protective earth (PE) busbar applications in low-voltage electrical distribution systems.

Designed for current collection and equipotential connection in distribution boards,control panels, and switchgear assemblies.

Key Specifications

	2-way Output Conductor Range: 2*16 mm² Copper Bar Size: 30*10*16 (mm) Order Number: 210911

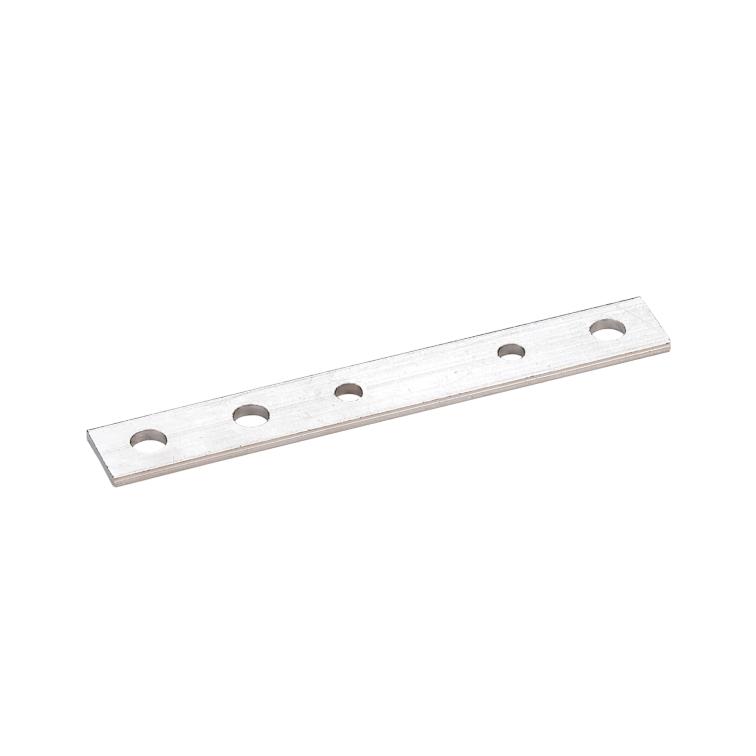

	5-way Overall Dimensions: 140 mm Copper Bar Size: 20*3 (mm) Order Number: 210904

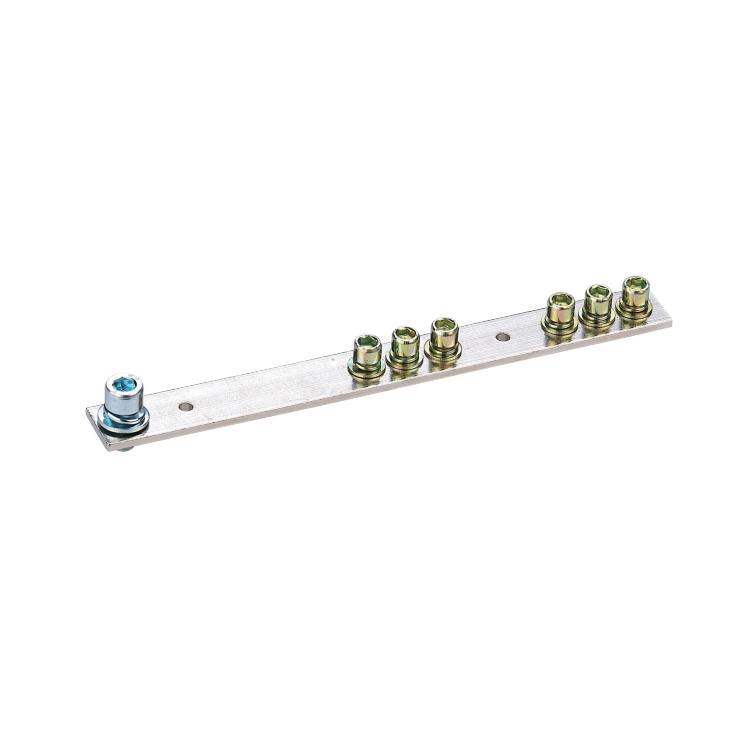

	6-way Input Conductor Range: 10-50 mm² Output Conductor Range: 6*16 mm² Overall Dimensions: 190 mm Copper Bar Size: 20*3 (mm) Order Number: 210908

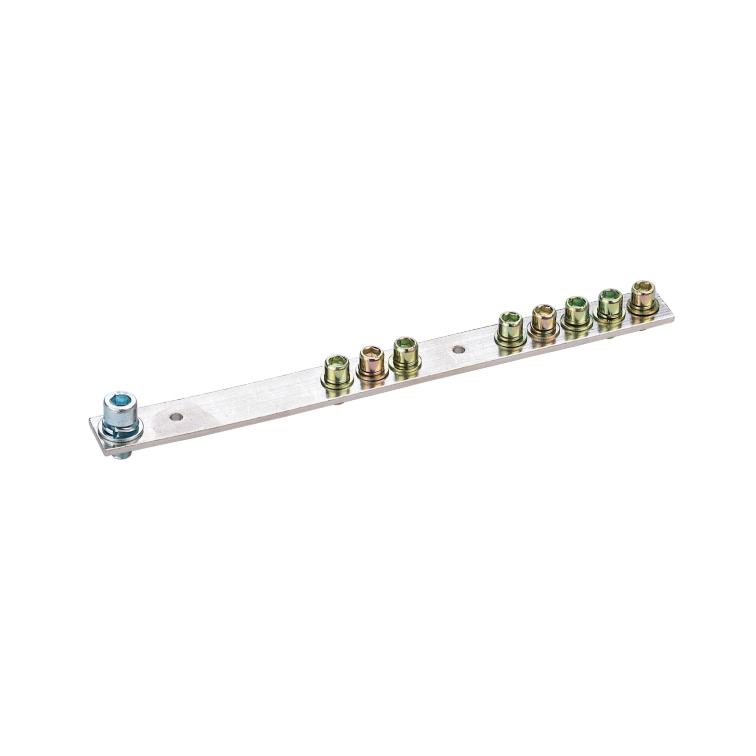

	8-way Input Conductor Range: 10-50 mm² Output Conductor Range: 8*16 mm² Overall Dimensions: 215 mm Copper Bar Size: 20*3 (mm) Order Number: 210909

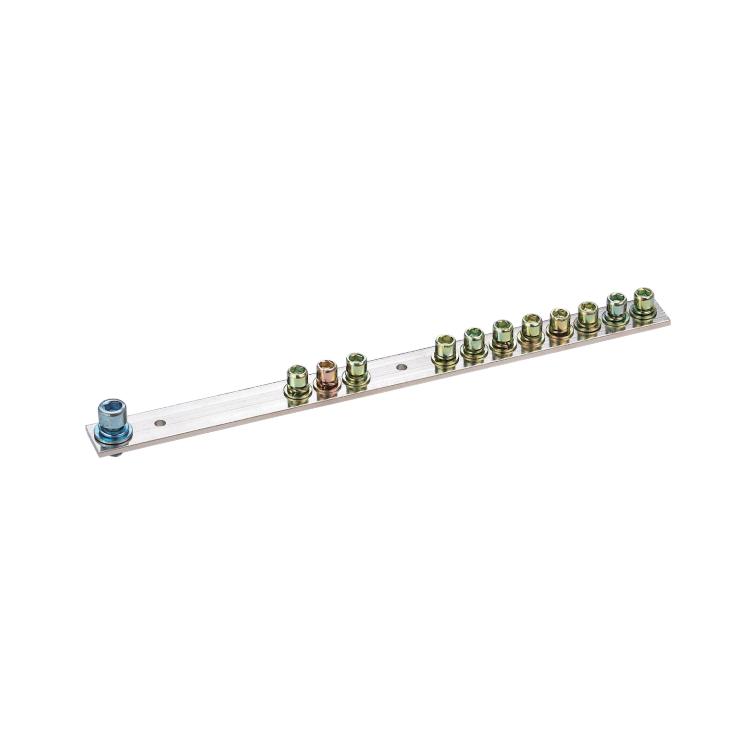

	11-way Input Conductor Range: 10-50 mm² Output Conductor Range: 11*16 mm² Overall Dimensions: 254 mm Copper Bar Size: 20*3 (mm) Order Number: 210910

Installation and Operation

• Fixed mounting onto mounting plates or insulated supports using screws.
• Ensure appropriate insulation measures before operation.
