FJ6/JHSB1 Insulated Base Copper Terminal Bars

Product Features

Copper terminal bar mounted on insulated base for enhanced safety.
All connection points electrically common (busbar function).
Prevents accidental contact and improves installation reliability• Secure screw clamping for stable conductor termination.
Widely used in standard distribution and control panels.

Detailed introduction

Application

Suitable for neutral (N) and protective earth (PE) busbar applications in low-voltage electrical distribution systems.

Designed for current collection and equipotential connection in distribution boards,control panels, and meter boxes.

Key Specifications

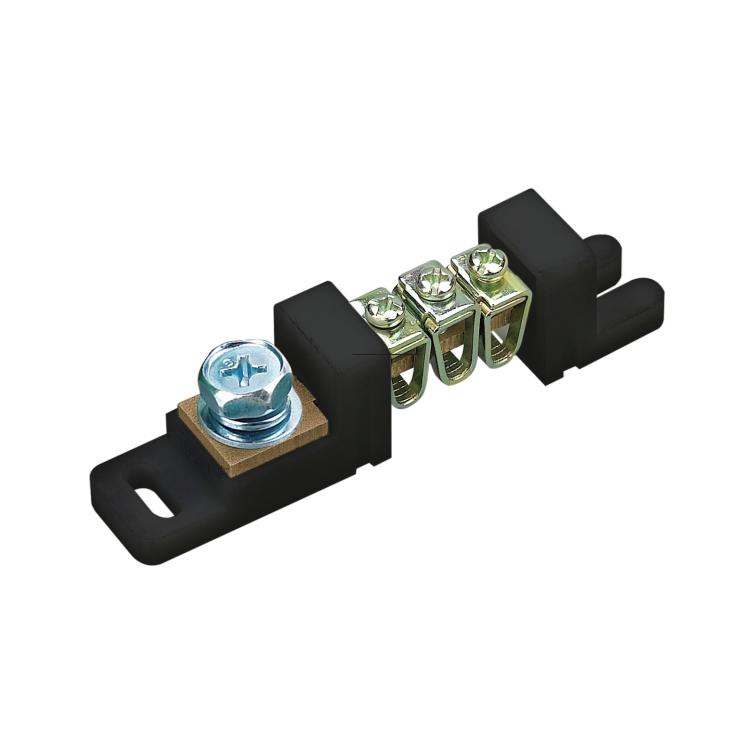

FJ6/JHSB1-3-way

InputConductorRange: 10-35 mm²

OutputConductorRange: 1.5*16 mm²

External dimensions (total length): 97 (mm)

Order Number: 210918

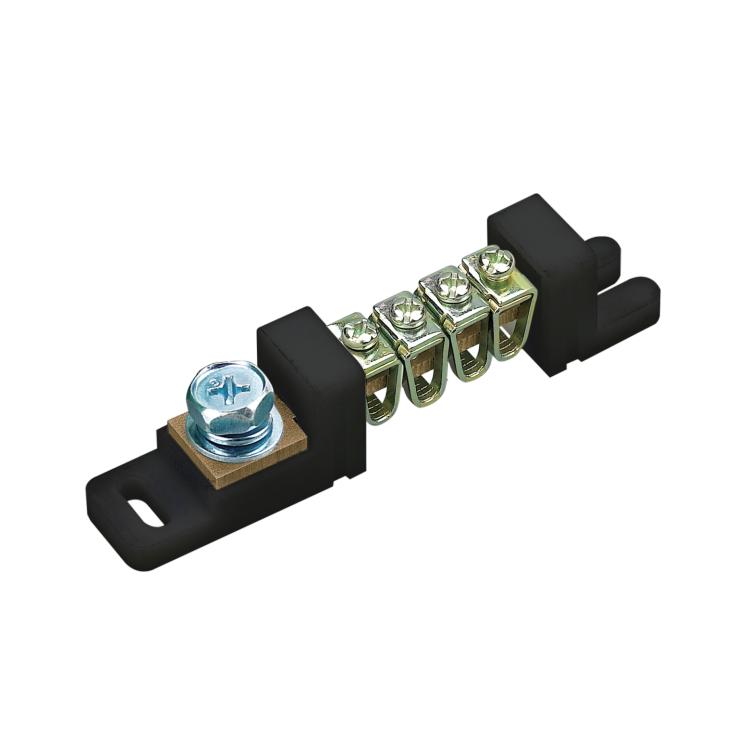

FJ6/JHSB1-4-way

InputConductorRange: 10-35 mm²

OutputConductorRange: 1.5*16 mm²

External dimensions (total length): 106 (mm)

Order Number: 210919

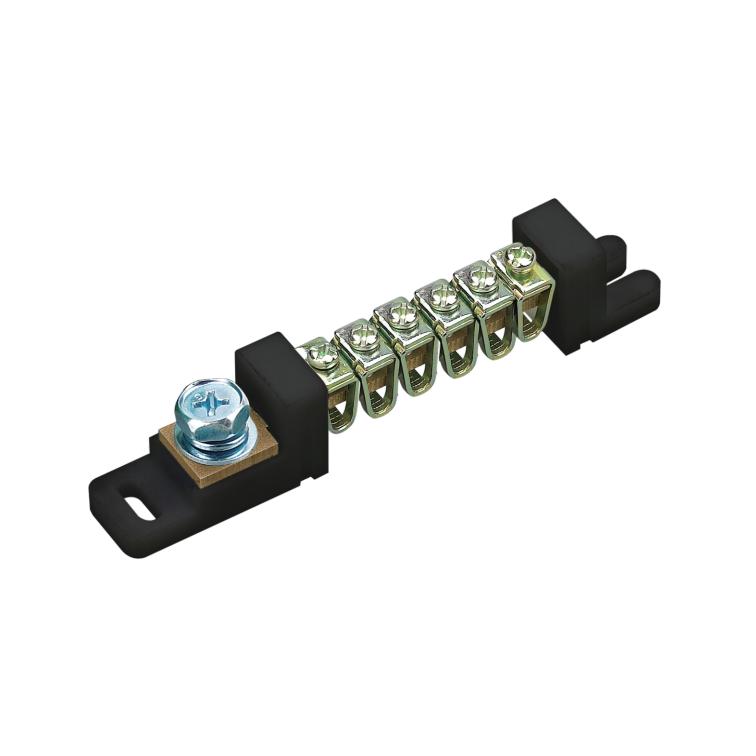

FJ6/JHSB1-6-way

InputConductorRange: 10-35 mm²

OutputConductorRange: 1.5*16 mm²

External dimensions (total length): 124 (mm)

Order Number: 210920

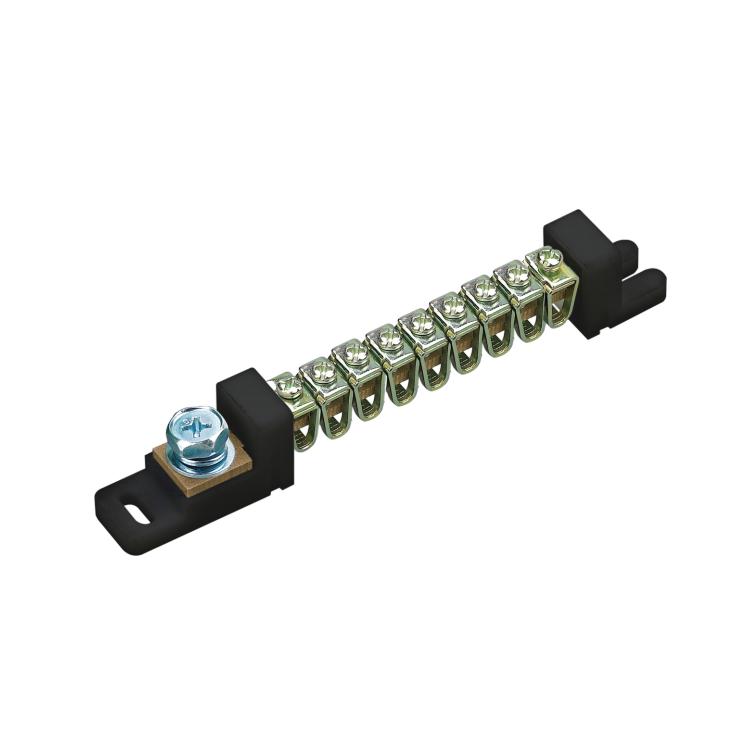

FJ6/JHSB1-9-way

InputConductorRange: 10-35 mm²

OutputConductorRange: 1.5*16 mm²

External dimensions (total length): 151 (mm)

Order Number: 210921

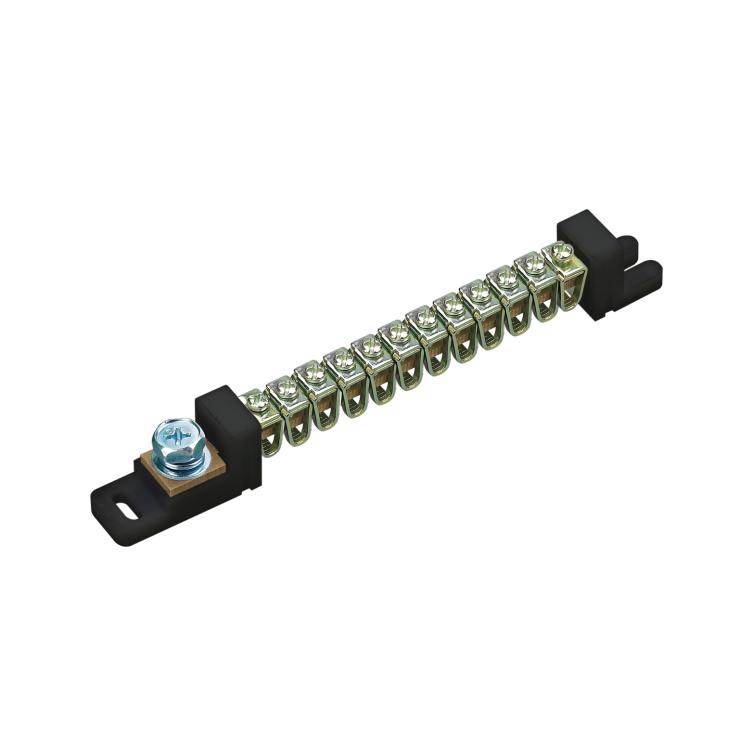

FJ6/JHSB1-12-way

InputConductorRange: 10-35 mm²

OutputConductorRange: 1.5*16 mm²

External dimensions (total length): 178 (mm)

Order Number: 210922

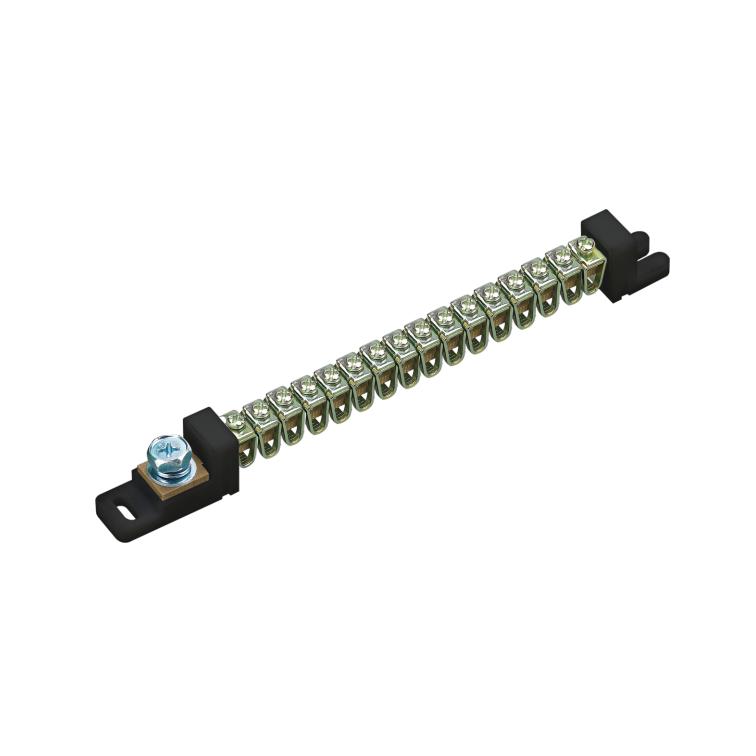

FJ6/JHSB1-16-way

InputConductorRange: 10-35 mm²

OutputConductorRange: 1.5*16 mm²

External dimensions (total length): 214 (mm)

Order Number: 210923

Installation and Operation

Fixed mounting onto mounting plates using screws through insulated base.
Suitable for neutral and earth busbar applications only.

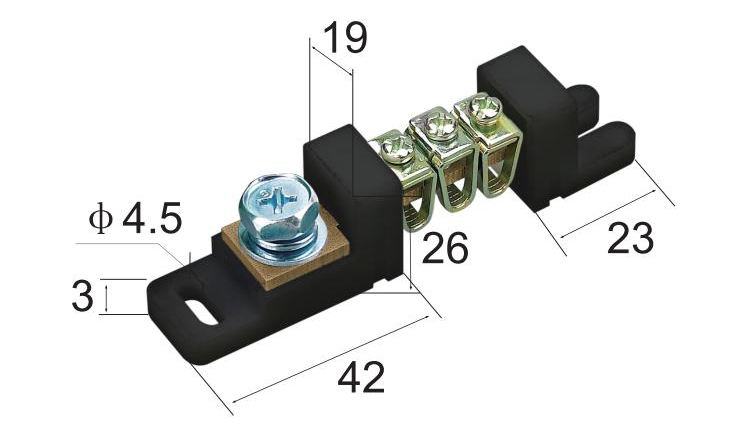

Outline and Mounting Dimension
