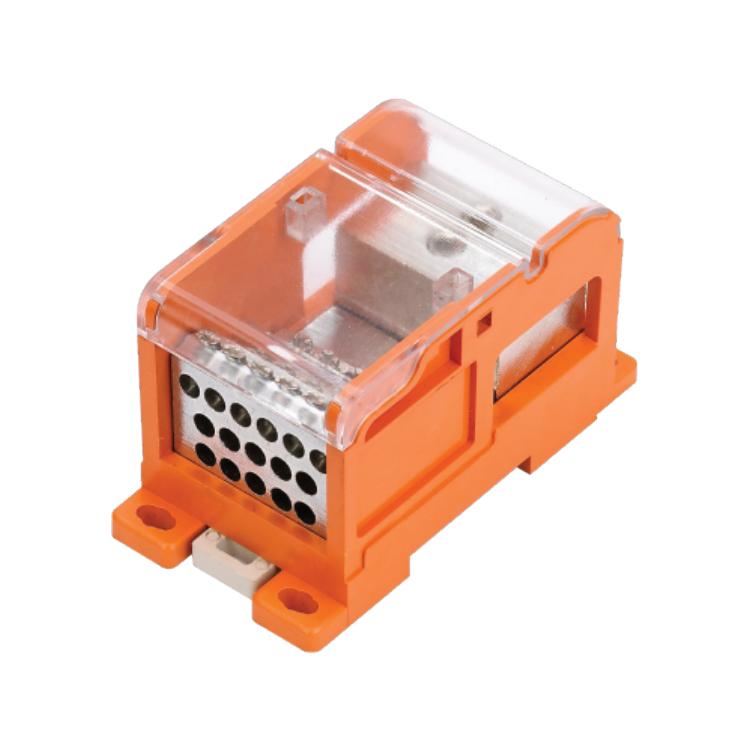

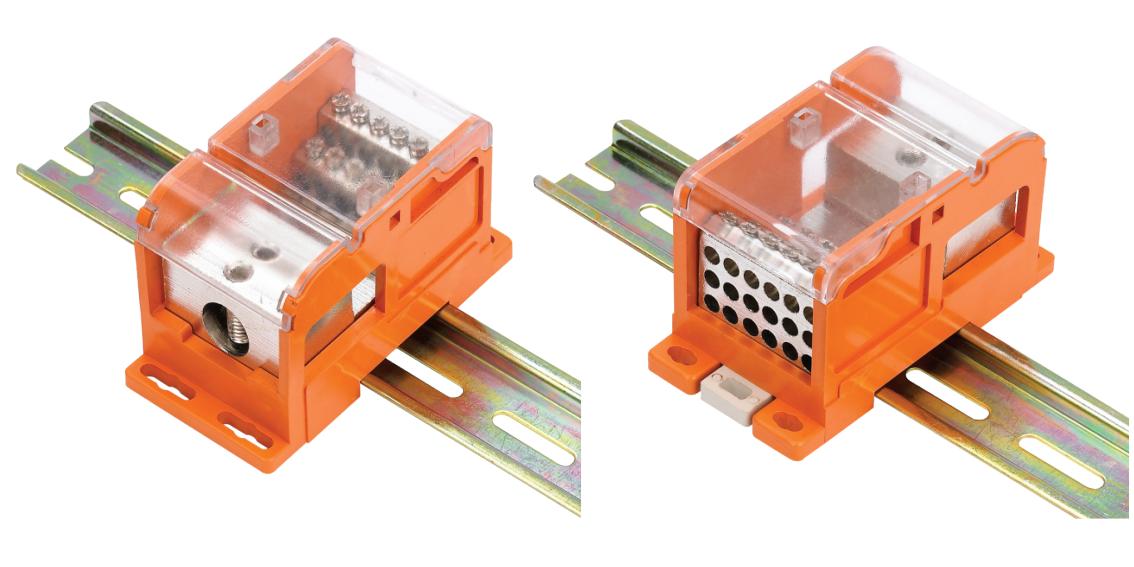

FJ6/JTS3-185 Series Power Distribution Terminal Block(Direct Conductor Connection)

Product Features

• Power distribution terminal block with one input and multiple outputs for multi-circuit power and circuit distribution.
• Direct conductor connection (screw clamping).
• Protective cover fits securely and remains firmly in place after installation, preventing accidental loosening.
• High current-carrying capability for main power infeed/outfeed and heavy-current applications.
• Suitable for use as a compact busbar solution, heavy-current terminal block, neutral (N) terminal block, protective earth (PE) terminal block, and equipotential bonding terminal block.
• Reliable screw clamping ensures stable electrical contact.
• Transparent protective cover for enhanced operational safety.
• Compact design for DIN rail or panel mounting in control cabinets.

Detailed introduction

Application

The FJ6/JTS3 series power distribution terminal blocks are suitable for power and circuit distribution in electrical control equipment, switchgear assemblies, distribution boxes, and multi-circuit enclosures.

They can serve as a compact alternative to small busbars for centralized connection and management of power, neutral, protective earth, and equipotential conductors.

Key Specifications

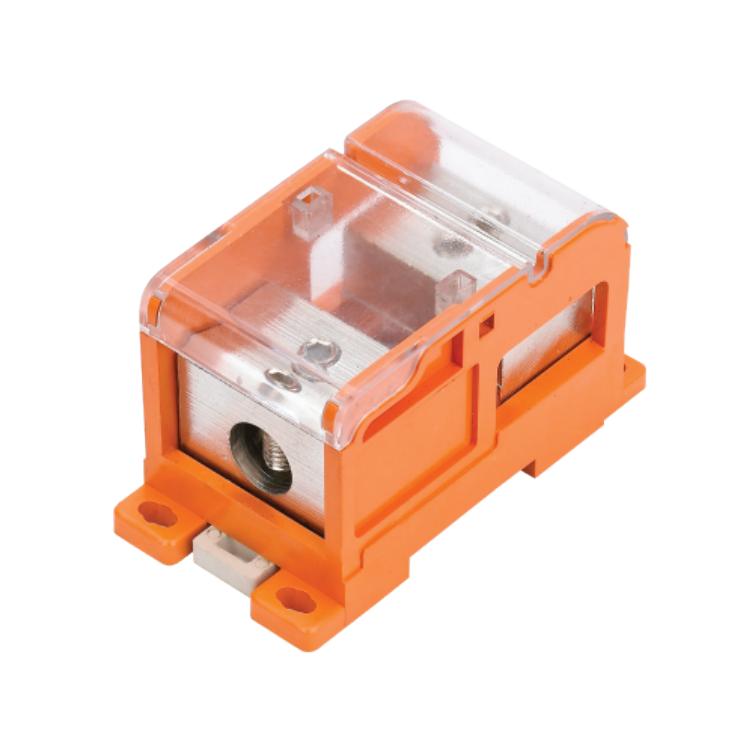

FJ6/JTS3-185

One-input; one-output

Input conductor range: 50-185 mm²

Output conductor range: 50-185 mm²

Order Number: 212238

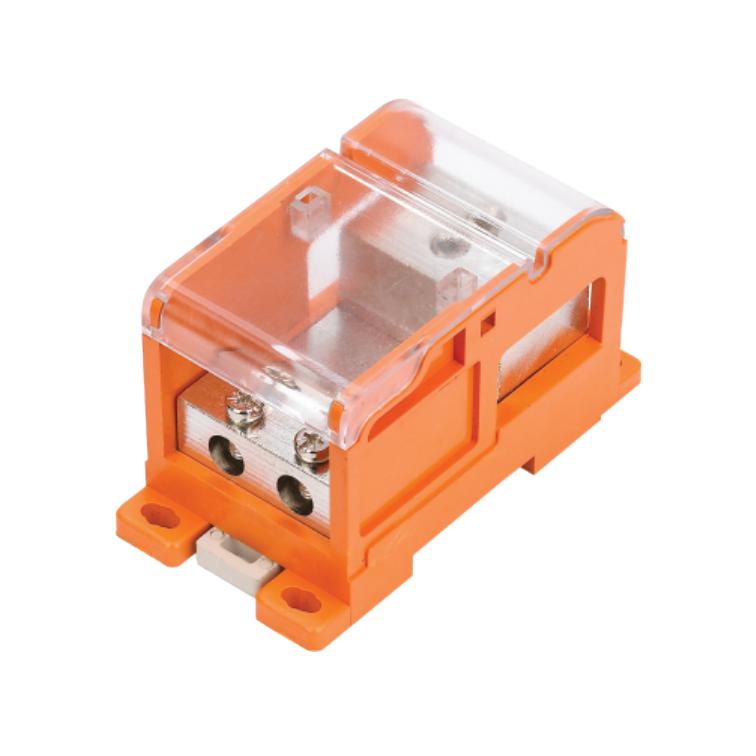

FJ6/JTS3-185/2*25

One-input; two-output

Input conductor range: 50-185 mm²

Output conductor range: 1.5-25 mm²

Order Number: 212239

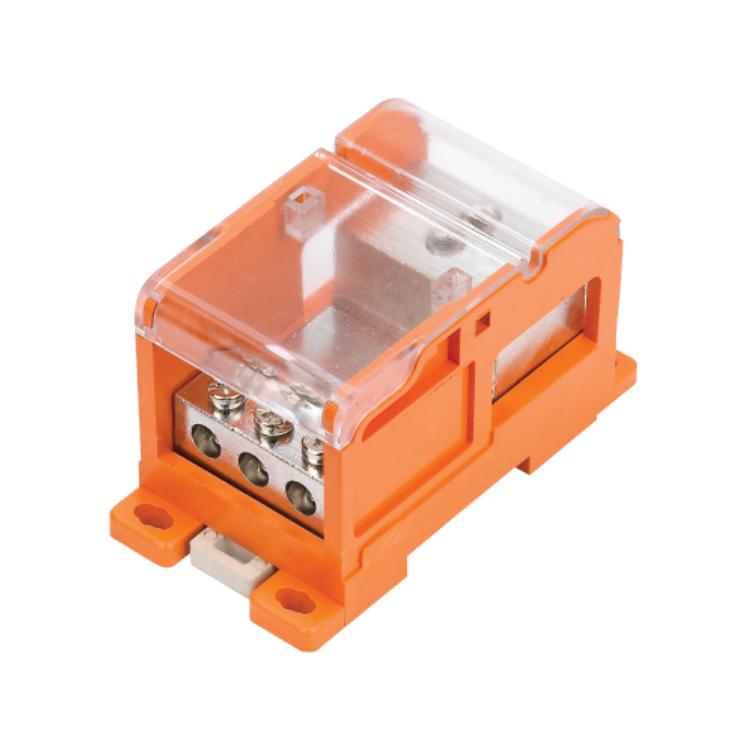

FJ6/JTS3-185/3*16

One-input; three-output

Input conductor range: 50-185 mm²

Output conductor range: 1.5-16 mm²

Order Number: 212240

FJ6/JTS3-185/4*16

One-input; four-output

Input conductor range: 50-185 mm²

Output conductor range: 1.5-16 mm²

Order Number: 212241

FJ6/JTS3-185/6*16

One-input; six-output

Input conductor range: 50-185 mm²

Output conductor range: 1.5-16 mm²

Order Number: 212242

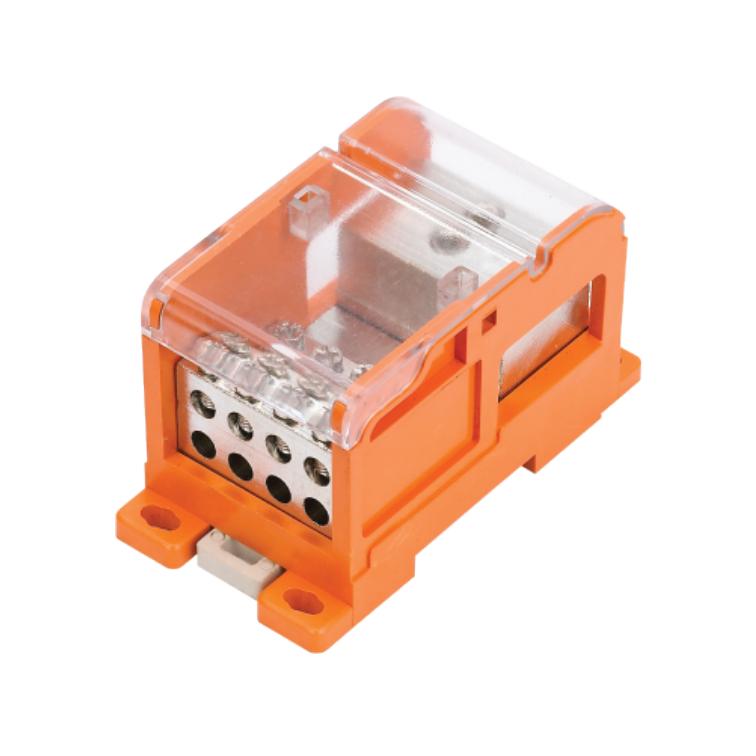

FJ6/JTS3-185/8*16

One-input; eight-output

Input conductor range: 50-185 mm²

Output conductor range: 1.5-16 mm²

Order Number: 212243

FJ6/JTS3-185/10*16

One-input; ten-output

Input conductor range: 50-185 mm²

Output conductor range: 1.5-16 mm²

Order Number: 212244

FJ6/JTS3-185/12*16

One-input; twelve-output

Input conductor range: 50-185 mm²

Output conductor range: 1.5-16 mm²

Order Number: 212245

FJ6/JTS3-185/16*10

One-input; sixteen-output

Input conductor range: 50-185 mm²

Output conductor range: 1.5-10 mm²

Order Number: 212246

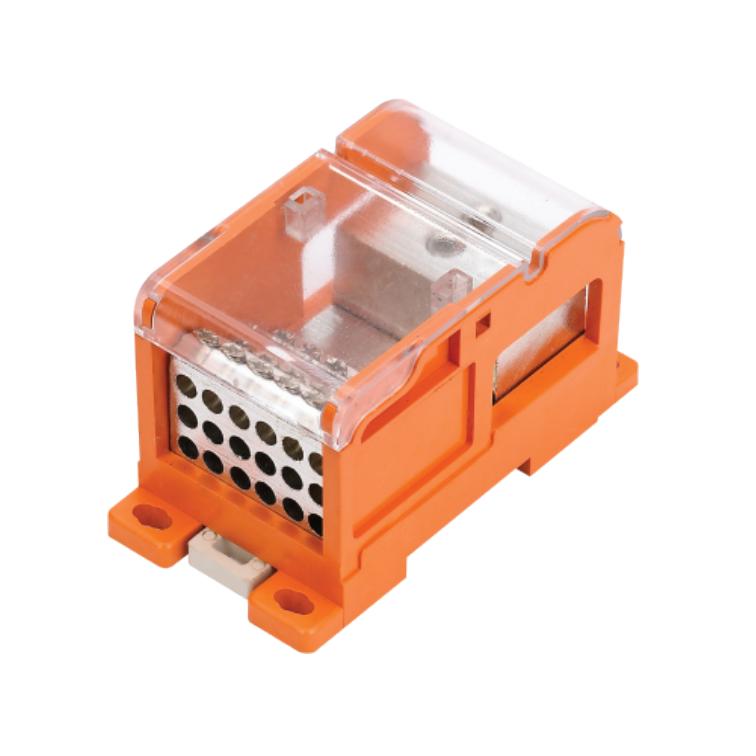

FJ6/JTS3-185/18*10

One-input; eighteen-output

Input conductor range: 50-185 mm²

Output conductor range: 1.5-10 mm²

Order Number: 212247

Installation and Operation

Fixed mounting on base plate using M5 screws.
DIN rail mounting on standard 35 mm rail (TH-35).

Installation Notes

Installation and wiring shall be carried out with the power supply disconnected.
During installation and operation, ensure conductors are fully inserted into the clamping area.
When using cable lugs or copper busbars for line-in connection, ensure clean and flat contact surfaces.
After installation, all connection points shall be checked for secure fixing.

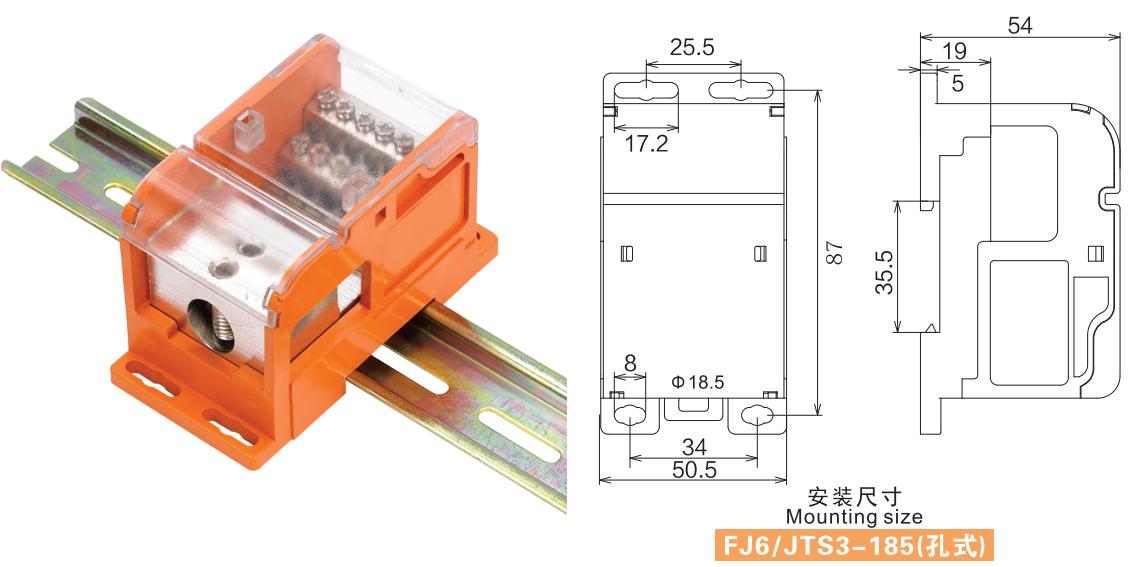

Outline and Mounting Dimension

Reference Table for Copper Conductors for Incoming and Outgoing Line
