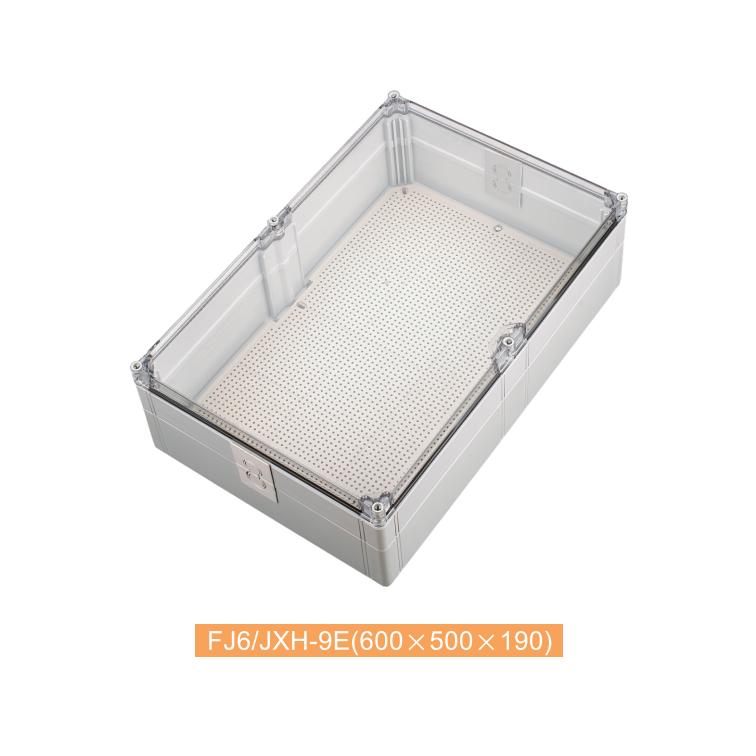

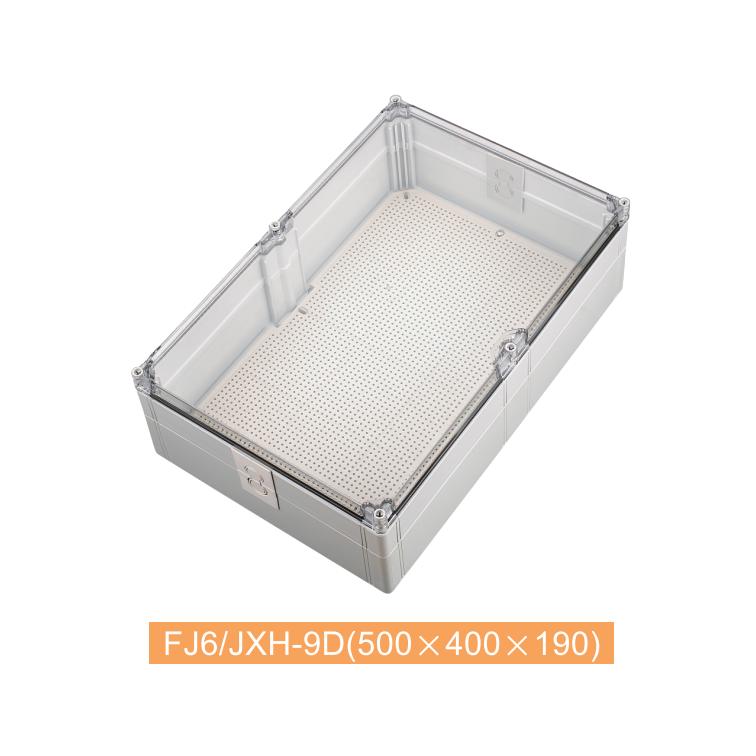

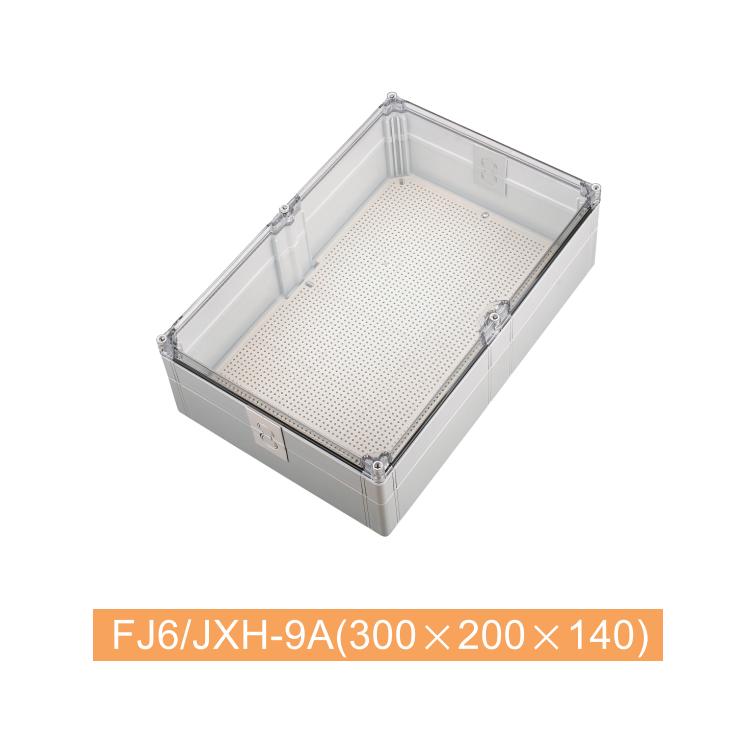

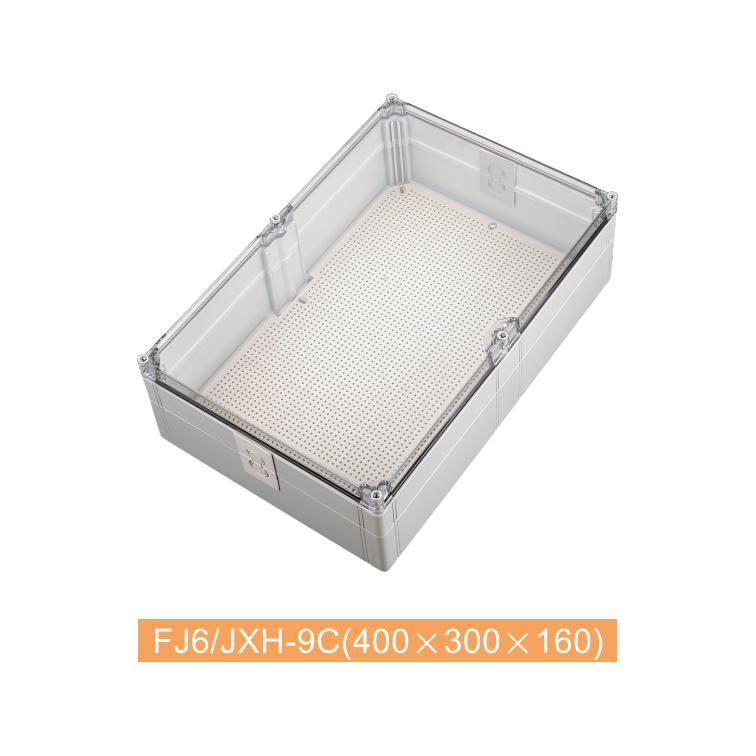

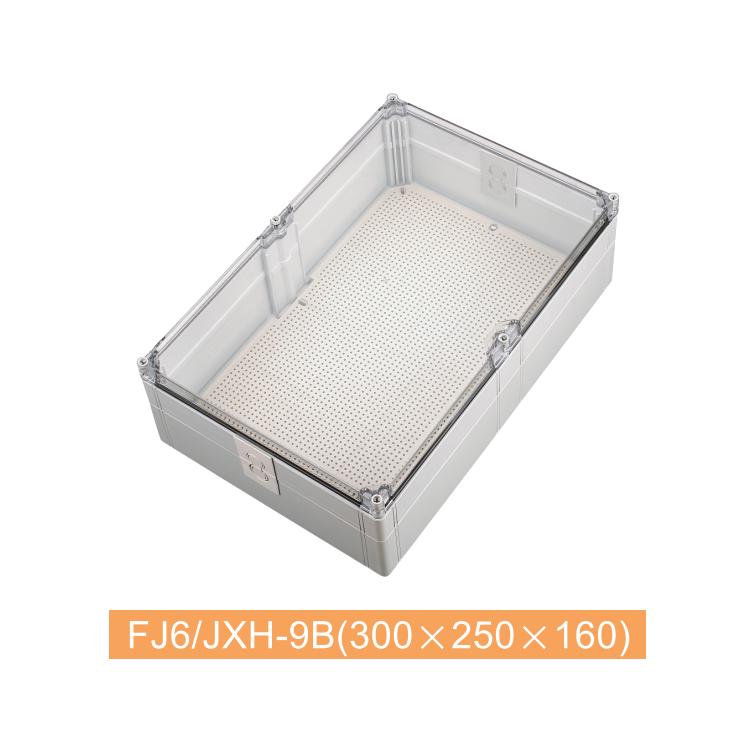

FJ6/JXH-9 Series Terminal Box / Junction Box Enclosure(Transparent T-Type Structure with Honeycomb Base)
Product Features
- Transparent insulated enclosure allowing visual inspection of internal components.
- T-type enclosure structure with detachable side panels.
- Flat cover design for sealed enclosure structure.
- Rigid housing structure providing reliable mechanical protection.
- Designed to meet the specified degree of protection according to model.

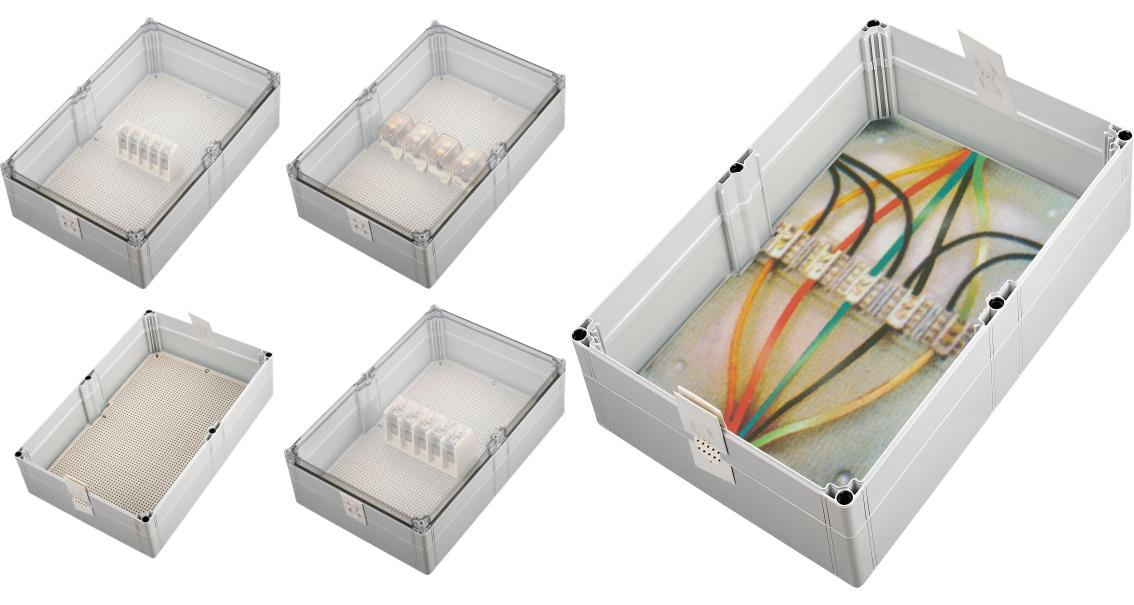

- Enclosure base with honeycomb structure, supporting flexible installation of internal components.
- Suitable for operation within the defined operating temperature range.
- Smooth internal surfaces suitable for internal component mounting.
Detailed introduction
Application
The FJ6/JXH-9 series transparent T-type structure terminal box / junction box enclosures are designed as protective housings for electrical connections in low-voltage distribution systems.
The transparent cover allows visual inspection of internal components without opening the enclosure.
They are suitable for use in control cabinets, distribution panels, and junction points where internal wiring status needs to be visually checked and frequent opening of the enclosure is not required.
Key Specifications
 |
| |||||||||
 |
| |||||||||
 |
| |||||||||
 |
| |||||||||
 |
|
Installation and Operation
- Secure the enclosure on a suitable mounting surface.
- Prepare cable entry openings before wiring.
- Close and fasten the cover after installation.
Installation Notes
- Supplied as an empty enclosure only.
- Internal electrical components are not included.

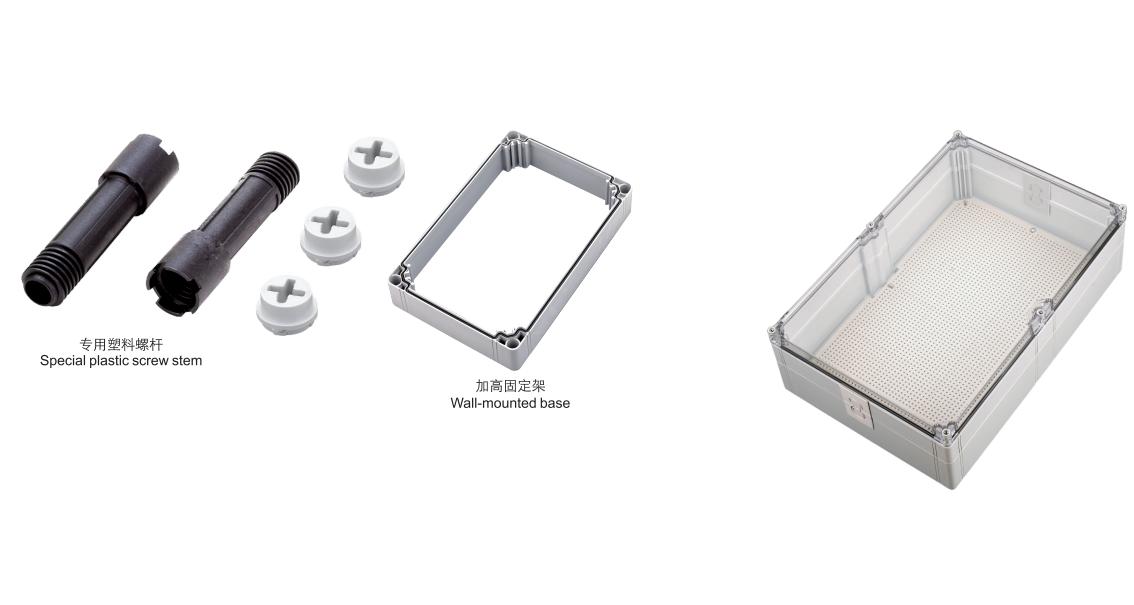

Customized enclosure and internal accessory solutions available according to customer requirements
