FJG/UKK Series DIN Rail Power Distribution Terminal Block

Product Features

DIN rail-mounted power distribution terminal block.
One-input, multiple-output configuration for efficient power distribution.
Screw clamping connection ensures stable mechanical strength and low contact resistance.
Compact structure suitable for high-density wiring arrangements.
Supports phase, neutral, protective earth, and equipotential conductor distribution.
Suitable for modular system design and circuit expansion.

Detailed introduction

Application

The FJG/UKK series DIN rail power distribution terminal blocks are designed for centralized power distribution and circuit branching in low-voltage electrical systems.

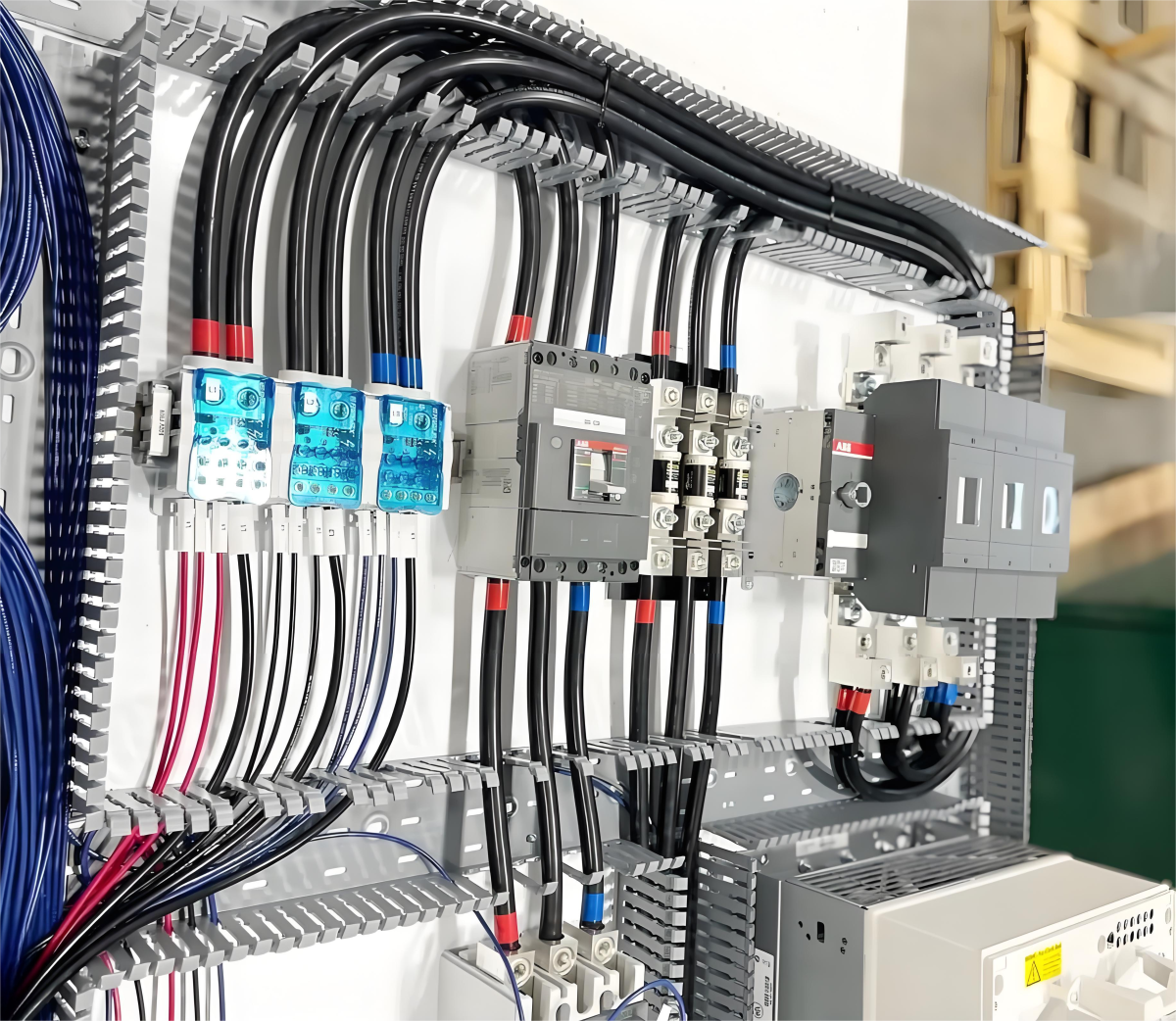

They are widely used in control cabinets, switchgear assemblies, power distribution panels, and multi-circuit enclosures for distributing power from one incoming conductor to multiple outgoing circuits.

This series provides a compact and reliable alternative to small busbars for phase, neutral, protective earth, and equipotential conductor distribution.

Key Specifications

Configuration: Oneinput; multiple-output
Rated Voltage: IEC 690V
Rated Current: 80A/125A/160/250A/400A
Input ConductorConfiguration
Output Conductor Configuration
Overall Dimensions (L × W × H) mm
Order Number

Installation and Operation

Mounts directly onto standard TH-35 DIN rails.
Insert conductors fully into the clamping chamber and tighten screws to the specified torque.
Ensure conductor size and current rating match the selected model.
Suitable for centralized distribution of phase, neutral, and protective conductors.

Installation Notes

Installation and wiring shall be carried out with the power supply disconnected.
During installation, ensure conductors are fully inserted into the clamping area.
When using large cross-section conductors, ensure proper alignment before tightening.
After installation, all connection points shall be checked for secure fixing.
