FJ6/UK Series Power Distribution Terminal Box
Product Features
- Enclosed power distribution terminal box with multiple inlets and outlets for multi-circuit power and circuit distribution.
- Designed for centralized power branching with clear internal layout.
- Supports screw clamping connection using crimped cable lugs.
- Large and small terminal holes accommodate different conductor sizes.
- High current-carrying capability for main power infeed and multiple outgoing circuits.
- Suitable for use as a compact busbar solution, heavy-current distribution terminal box, neutral (N) distribution box, protective earth (PE) distribution box, and equipotential bonding distribution box.

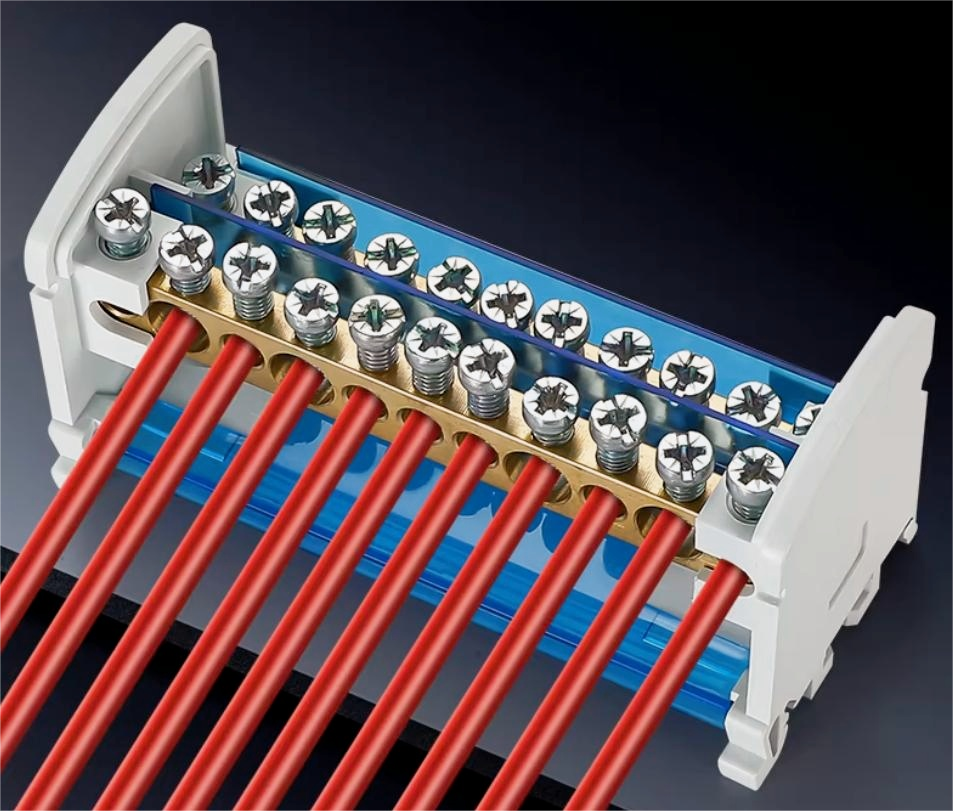

- Reliable screw clamping ensures stable electrical contact.
- Transparent protective cover enhances operational safety and allows visual inspection.
- Fixed mounting design suitable for installation inside control cabinets and distribution enclosures.
Detailed introduction
Application
The UK series power distribution terminal boxes are designed for centralized power distribution and circuit branching in low-voltage electrical systems. They are suitable for use in electrical control equipment, switchgear assemblies, distribution boxes, and multi-circuit enclosures.
These products can serve as a compact alternative to small busbars for centralized connection and management of power, neutral, protective earth, and equipotential conductors.
Key Specifications
- Configuration: One-input;two-output
- Rated Voltage: IEC 500V
- Rated Current: 125A
- Input ConductorRange: mm²
- Output Conductor Range: mm²
- Large Hole Diameter: 9mm
- Large Hole ConductorRange: BV 6–16 mm² / BVR 10–25 mm²
- Small Hole Diameter: 5.3mm
- SmallHole Conductor Range: BV 1.5–6 mm² / BVR 2.5–6 mm²
Installation and Operation
- Fixed mounting inside electrical enclosures.
- Ensure conductors are properly crimped with suitable terminals before installation.
- Tighten screws to ensure secure fixing and reliable current carrying.
- Transparent cover allows visual inspection without removal.
Installation Notes
- Installation and wiring shall be carried out with the power supply disconnected.
- Ensure all conductors are fully inserted and securely clamped.
- After installation, all connection points shall be checked for secure fixing.
Outline and Mounting Dimension

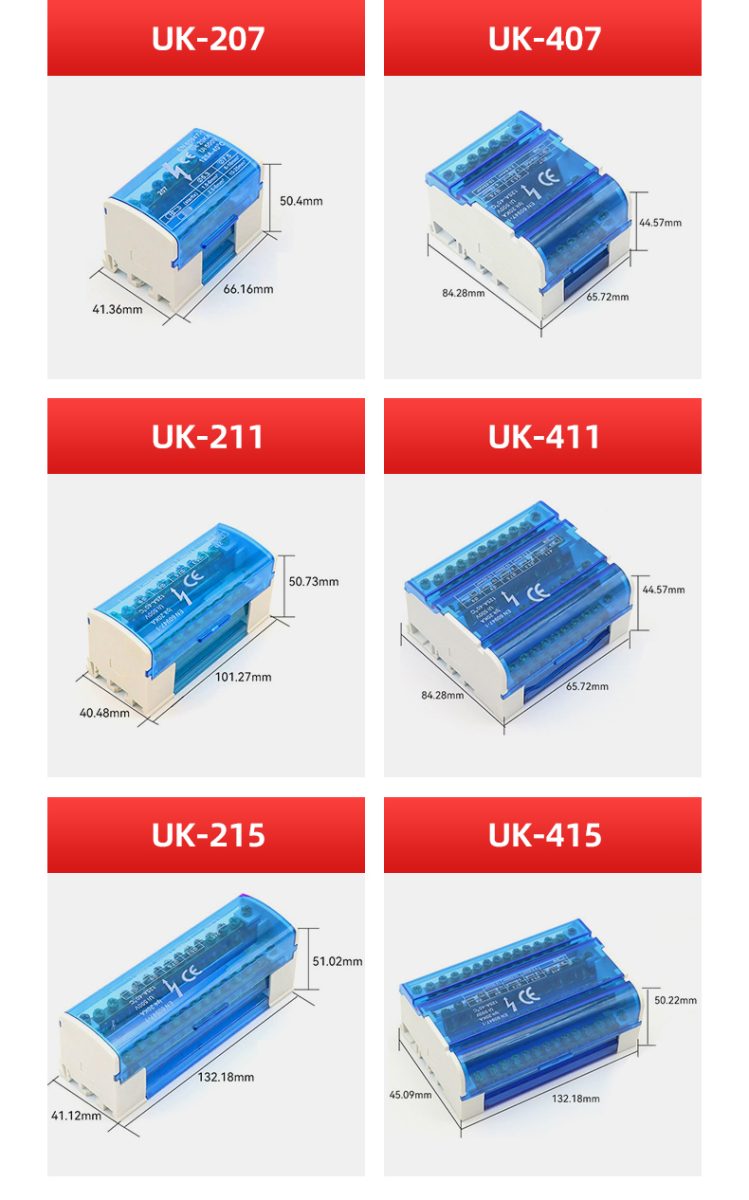

Reference Table for Copper Conductors for Incoming and Outgoing Lines
