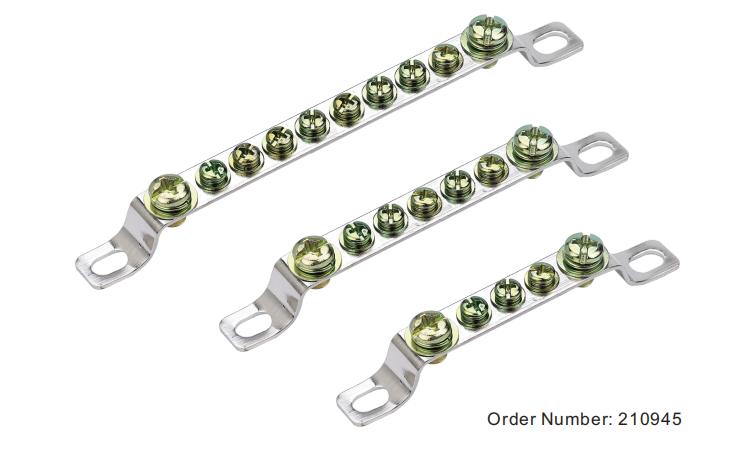

FJ6/XP0325A Neutral Copper Terminal Bar

Product Features

Copper terminal bar mounted on insulated base for enhanced safety.
All connection points electrically common (busbar function).
Prevents accidental contact and improves installation reliability• Secure screw clamping for stable conductor termination.
Widely used in standard distribution and control panels.

Detailed introduction

Suitable for neutral (N) and protective earth (PE) busbar applications in low-voltage electrical distribution systems.

Designed for current collection and equipotential connection in distribution boards,control panels, and meter boxes.

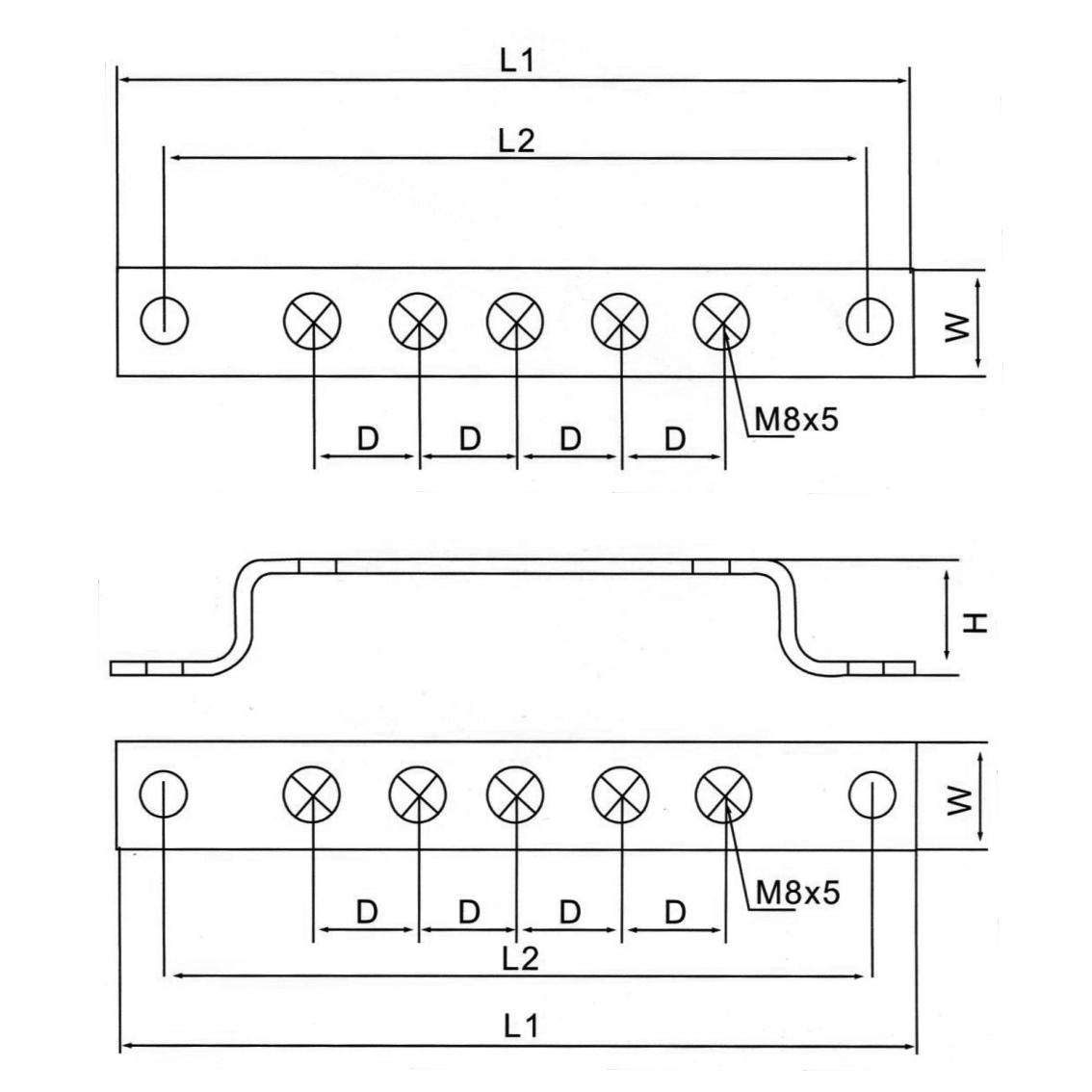

Model	Specification	L1 Overall Length	L2 Mounting Hole Center Distance	D Terminal Pitch	H Height	W Width	Clamping Screw	Material
FJ6/XP0325A Neutral Copper Terminal Bar	3*25-5P	136	118	19	–	25	5*M8	H62
	3*25-7P	174	151	19	–	25	7*M8	H62
	3*25-8P	195	176	19	–	25	8*M8	H62
	3*25-10P	230	210	19	–	25	10*M8	H62
	3*25-12P	267	248	19	–	25	12*M8	H62
