FJ6Q-1 Series Self-lifting Distribution Terminal Block

Product Features

Self-elevating screw clamping structure with anti-vibration locking
Automatic locking mechanism prevents loosening under vibration conditions
Strong and reliable clamping force ensures stable electrical connection
Provides sufficient pull-out resistance to the conductor
Compact and durable design for flexible wiring and convenient installation

Detailed introduction

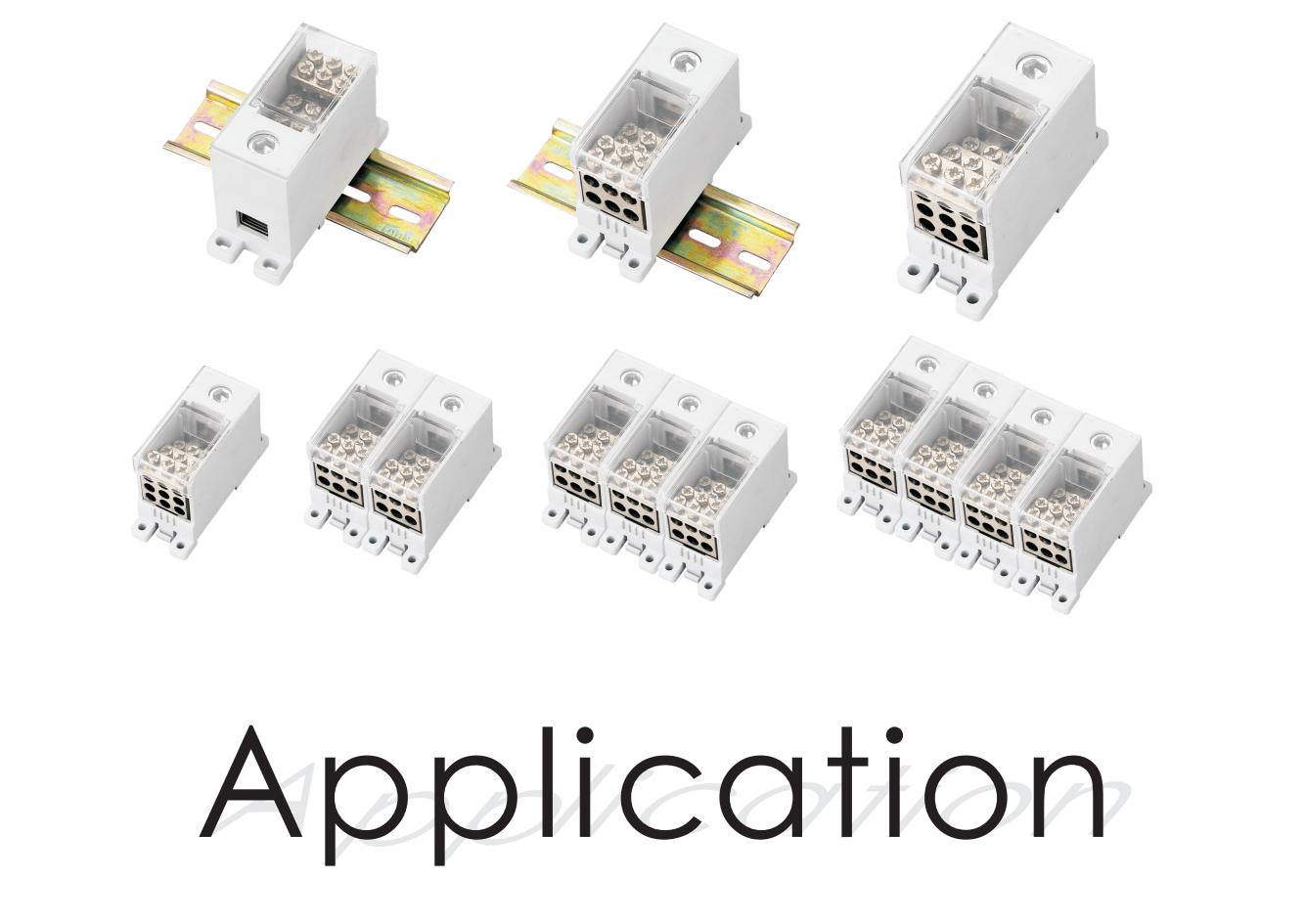

Application

Suitable for wiring and distribution in electrical control equipment, switchgear assemblies, multi-circuit meter boxes, and modular terminal enclosures.

Used as an alternative to busbars, earthing terminals, and neutral terminal blocks in multi-circuit wiring systems.

Key Specifications

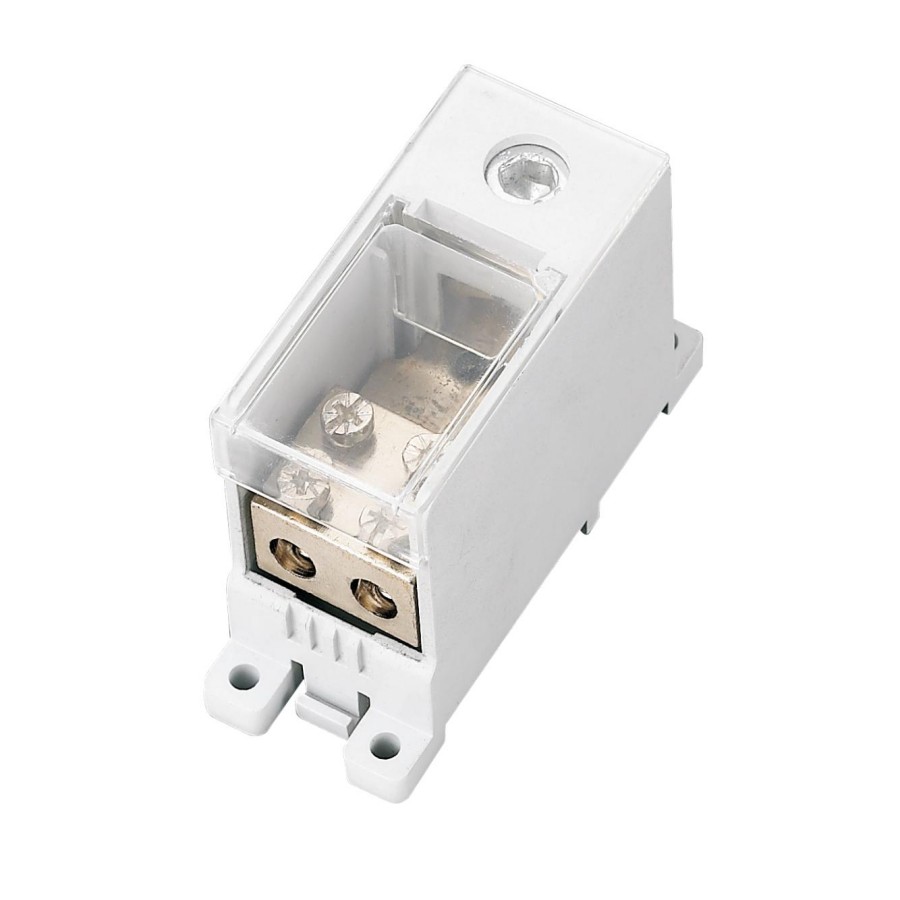

FJ6Q-1/2*10

Configuration: One-input; two-output

Input conductor range: 6–50 mm²

Output conductor range: 1.5–10 mm²

Order Number: 212058

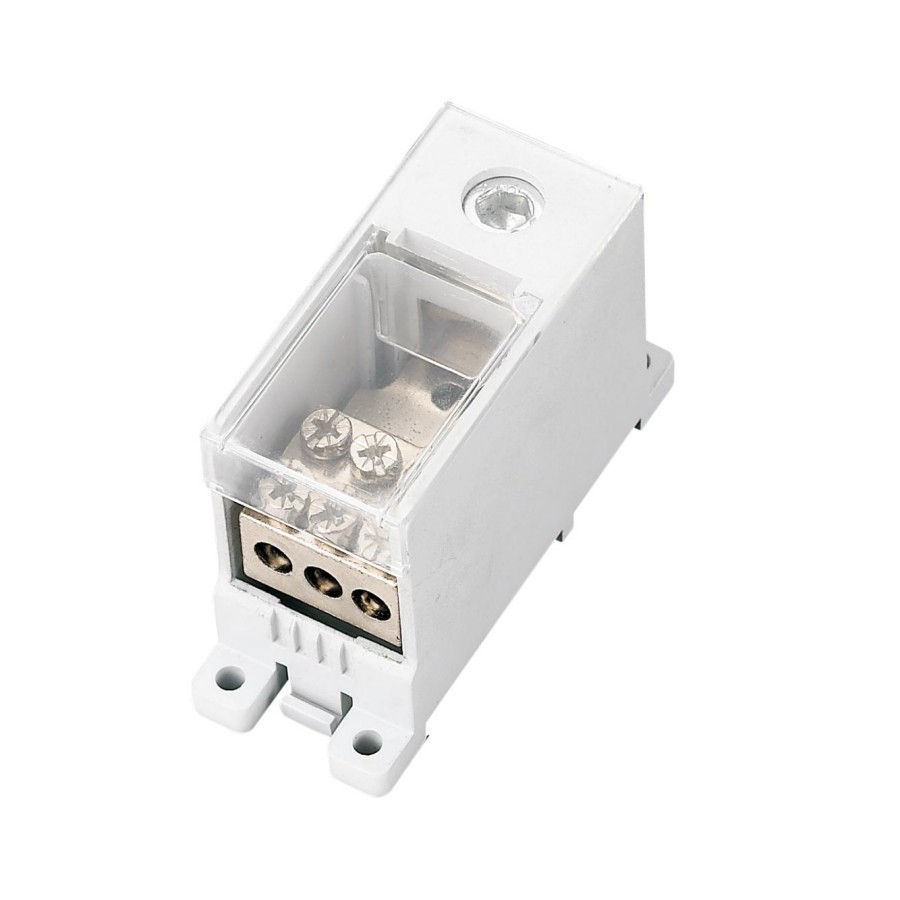

FJ6Q-1/3*10

Configuration: One-input; three-output

Input conductor range: 6–50 mm²

Output conductor range: 1.5–10 mm²

Order Number: 212059

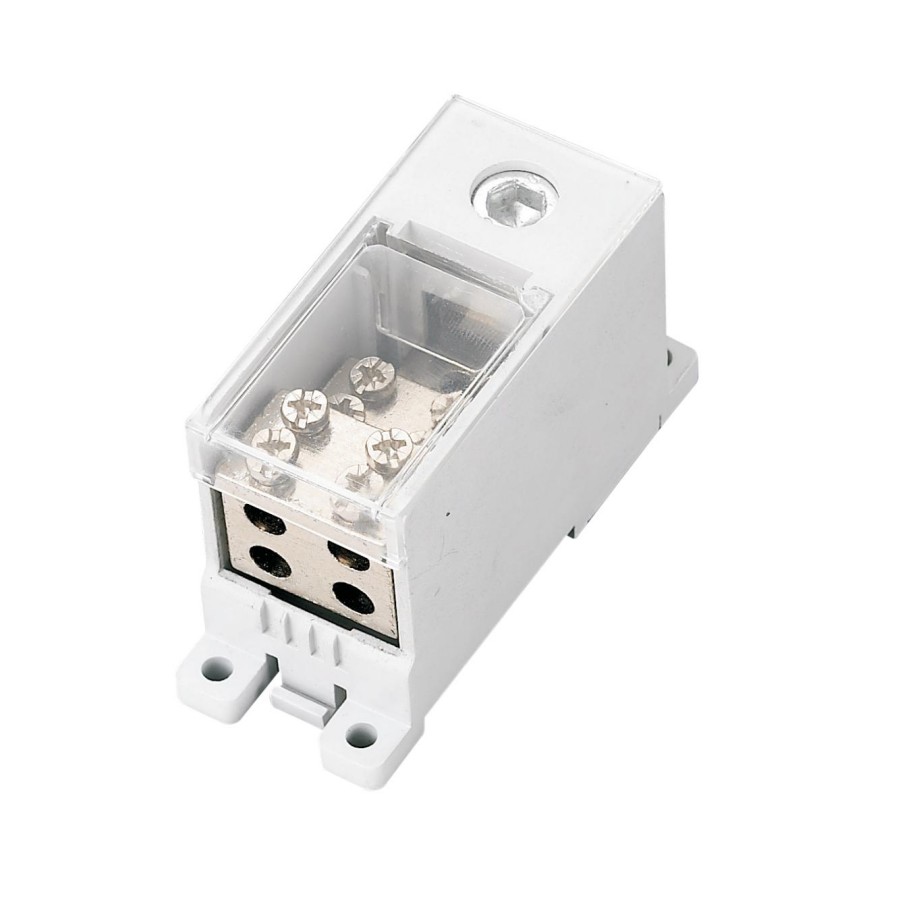

FJ6Q-1/4*10

Configuration: One-input; four-output

Input conductor range: 6–50 mm²

Output conductor range: 1.5–10 mm²

Order Number:212060

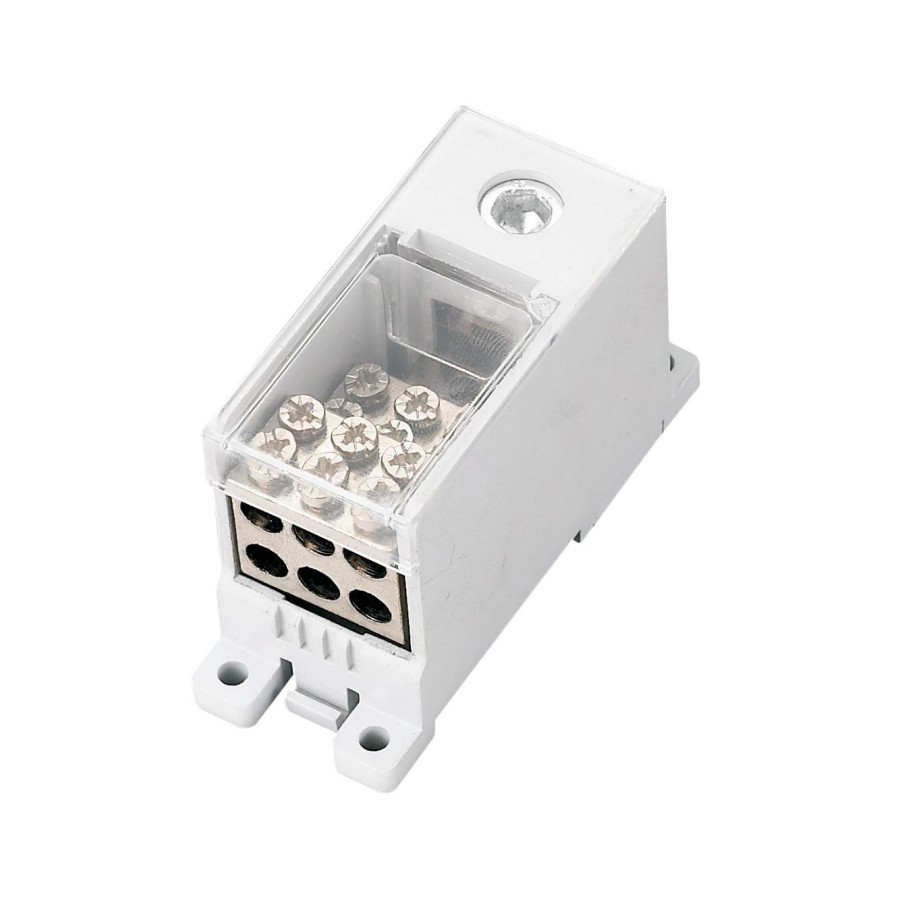

FJ6Q-1/6*10

Configuration: One-input; six-output

Input conductor range: 6–50 mm²

Output conductor range: 1.5–10 mm²

Order Number:212061

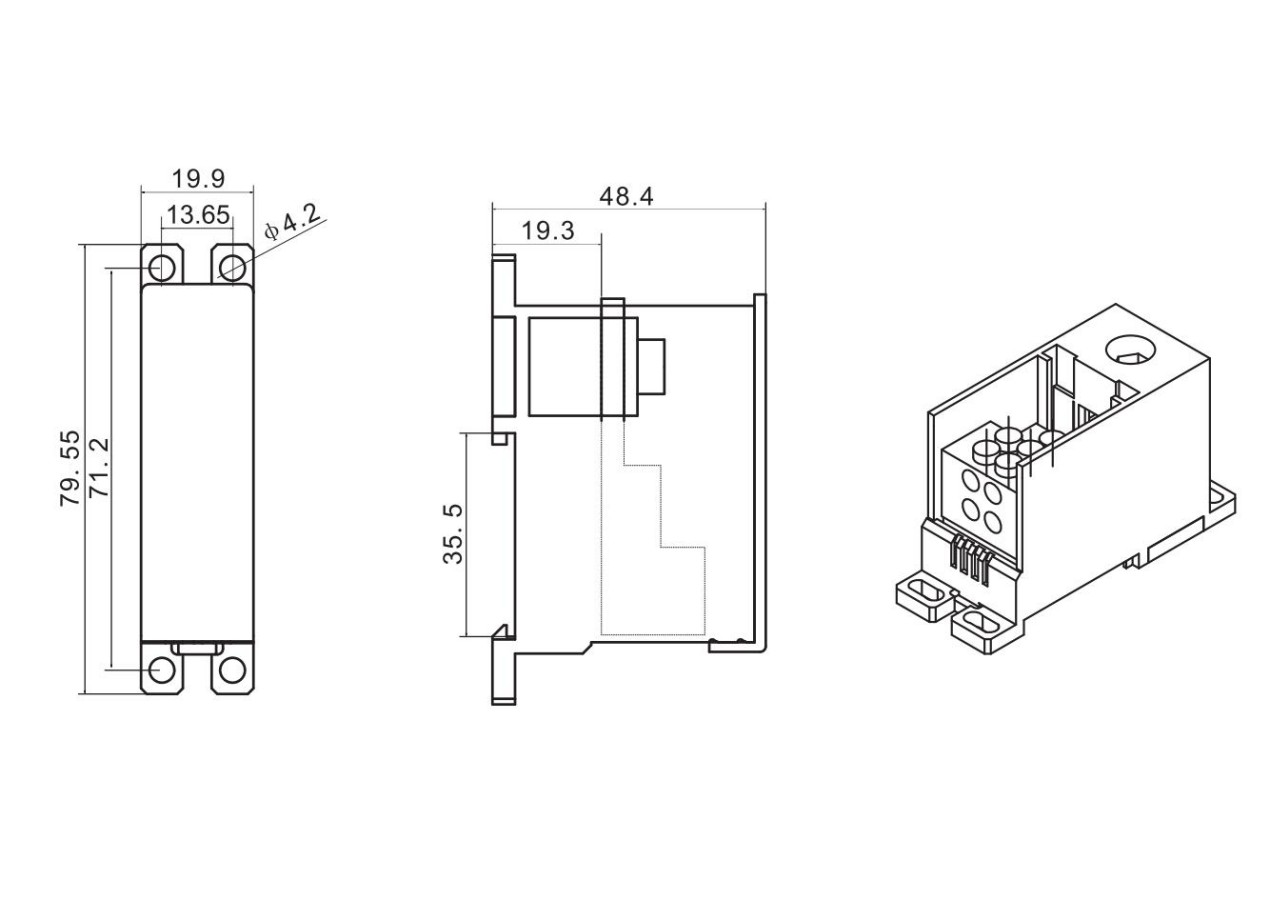

Installation and Operation

Fixed mounting on base plate using M5 screws
DIN rail mounting on TH-35 guide rail (top-hat rail)
Ensure correct conductor insertion and tighten screws to the specified torque
