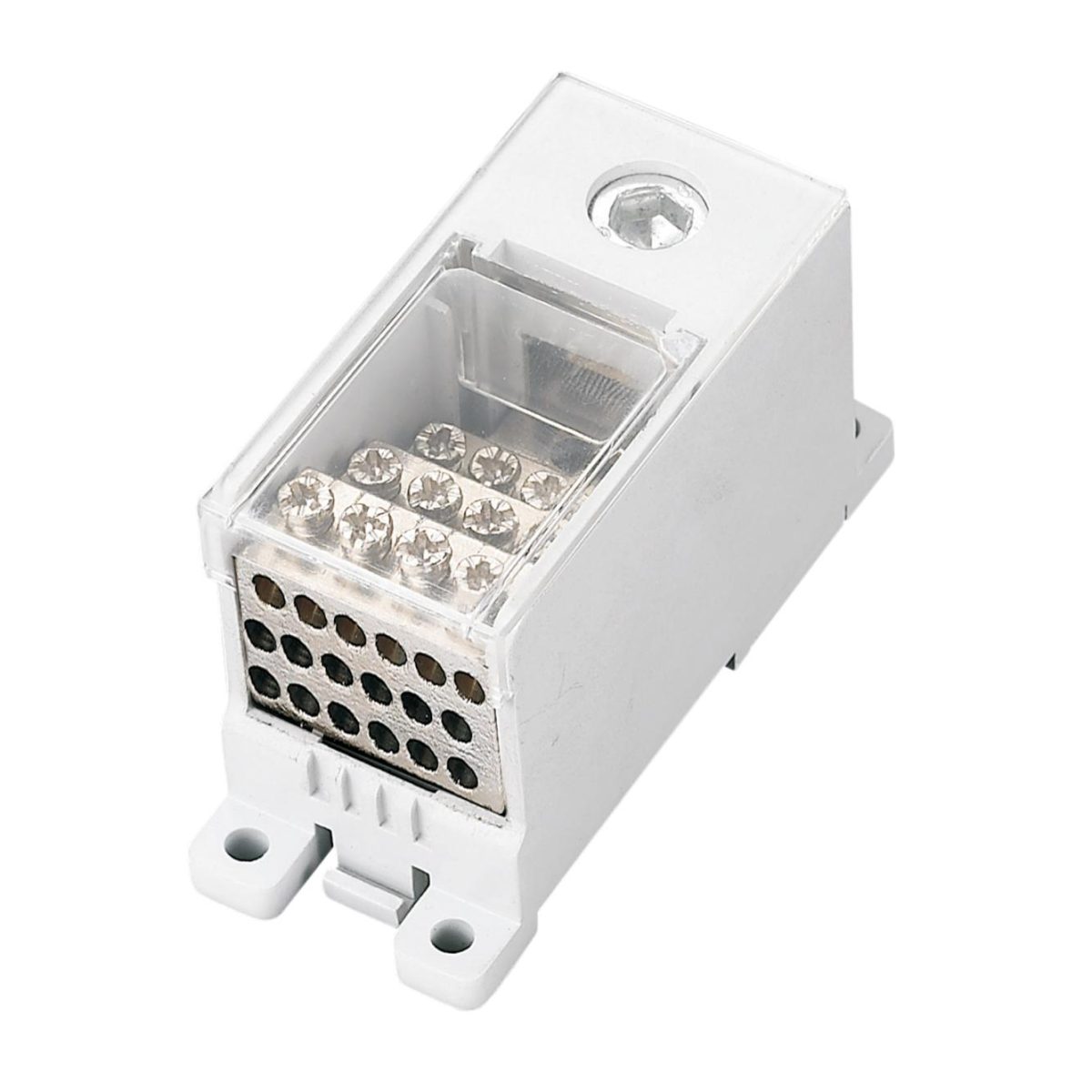

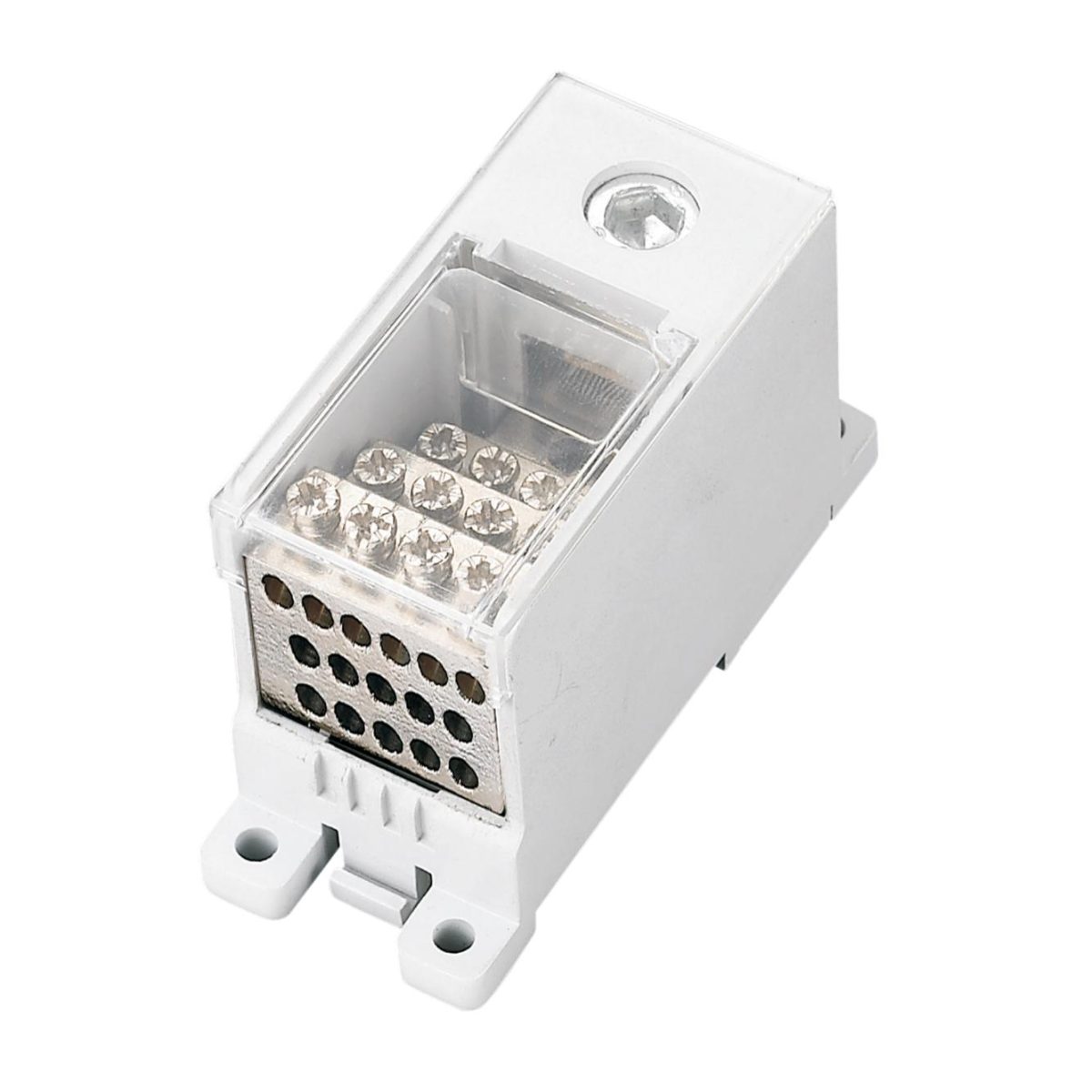

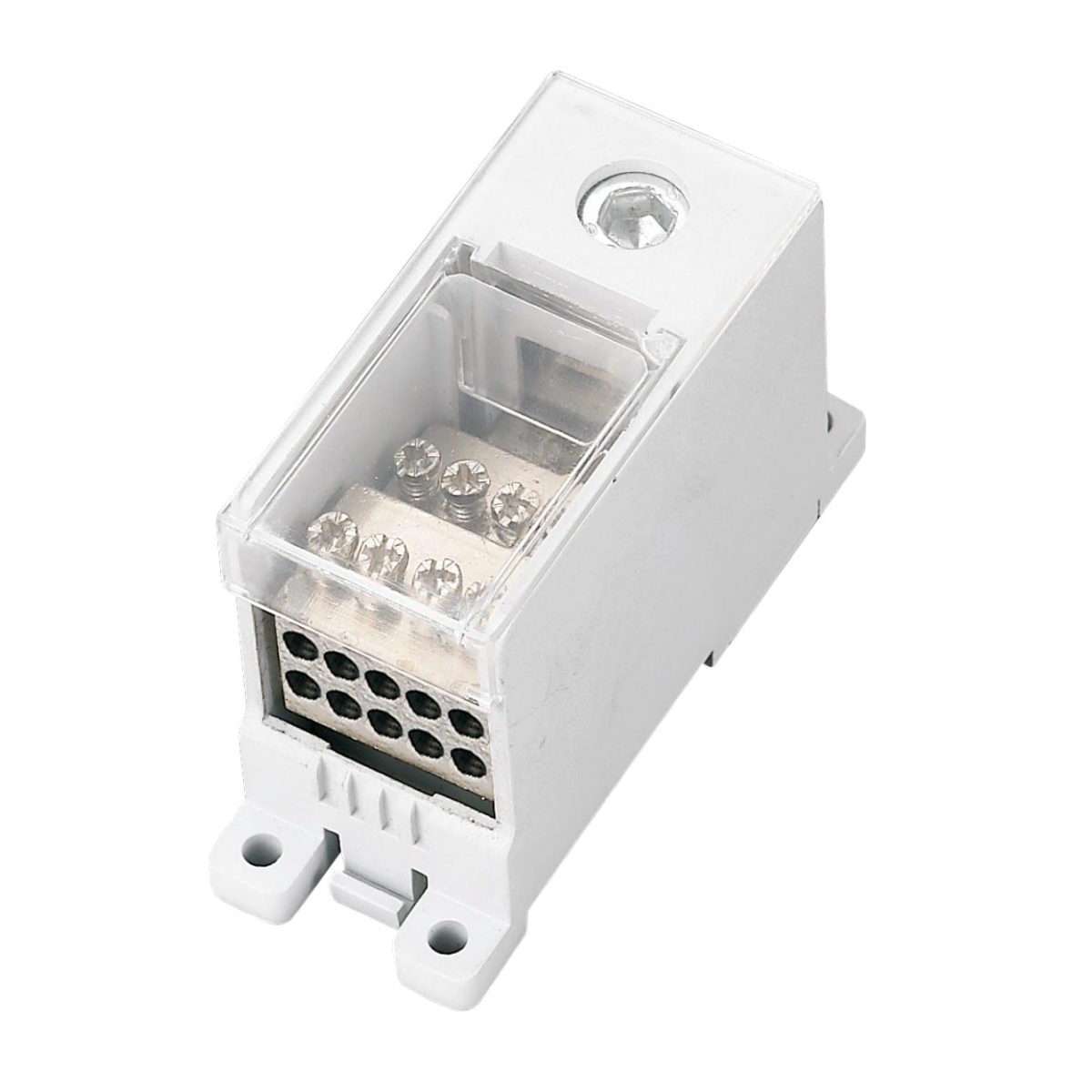

FJ6Q-3 Series Self-lifting Distribution Terminal Block

Product Features

Self-elevating screw clamping structure with anti-vibration locking
Automatic locking mechanism prevents loosening under vibration conditions
Strong and reliable clamping force ensures stable electrical connection
Provides sufficient pull-out resistance to the conductor
Compact and durable design for flexible wiring and convenient installation

Detailed introduction

Application

Suitable for wiring and distribution in electrical control equipment, switchgear assemblies, multi-circuit meter boxes, and modular terminal enclosures.

Used as an alternative to busbars, earthing terminals, and neutral terminal blocks in multi-circuit wiring systems.

Key Specifications

FJ6Q-3/8*16

Configuration: One-input; eight-output

Input conductor range: 6-50(70) mm²

Output conductor range: 1.5–16 mm²

Order Number: 212069

FJ6Q-3/10*16

Configuration: One-input; ten-output

Input conductor range: 6-50(70) mm²

Output conductor range: 1.5–16 mm²

Order Number: 212070

FJ6Q-3/12*16

Configuration: One-input; twelve-output

Input conductor range: 6-50(70) mm²

Output conductor range: 1.5–16 mm²

Order Number: 212071

FJ6Q-3/16*10

Configuration: One-input; sixteen-output

Input conductor range: 6–50(70) mm²

Output conductor range: 1.5–10 mm²

Order Number: 212072

FJ6Q-3/18*10

Configuration: One-input; eighteen-output

Input conductor range: 6–50(70) mm²

Output conductor range: 1.5–10 mm²

Order Number: 212073

Installation and Operation

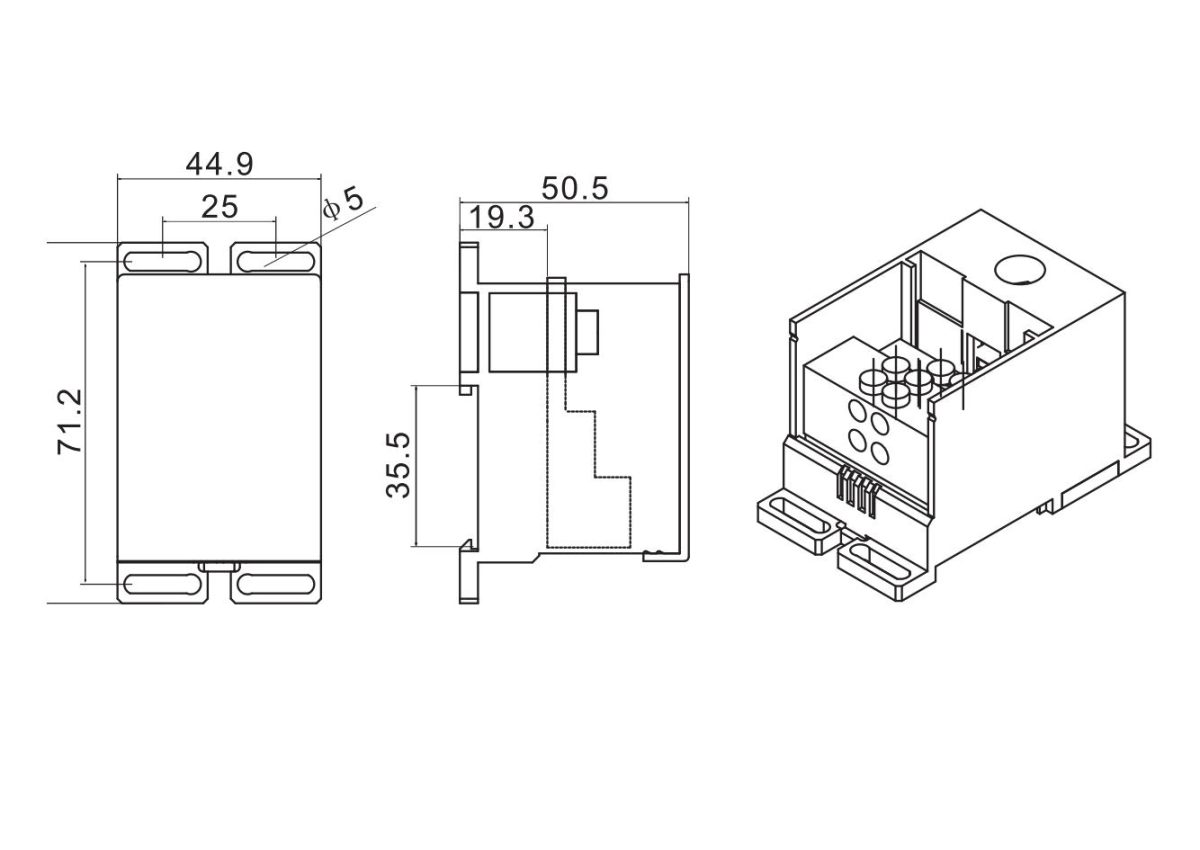

Fixed mounting on base plate using M5 screws
DIN rail mounting on TH-35 guide rail (top-hat rail)
Ensure correct conductor insertion and tighten screws to the specified torque
