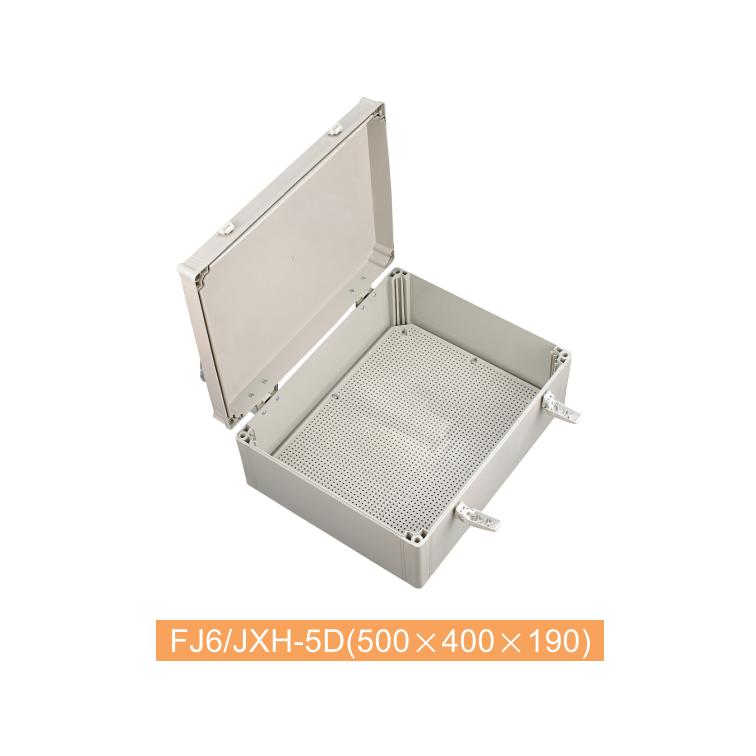

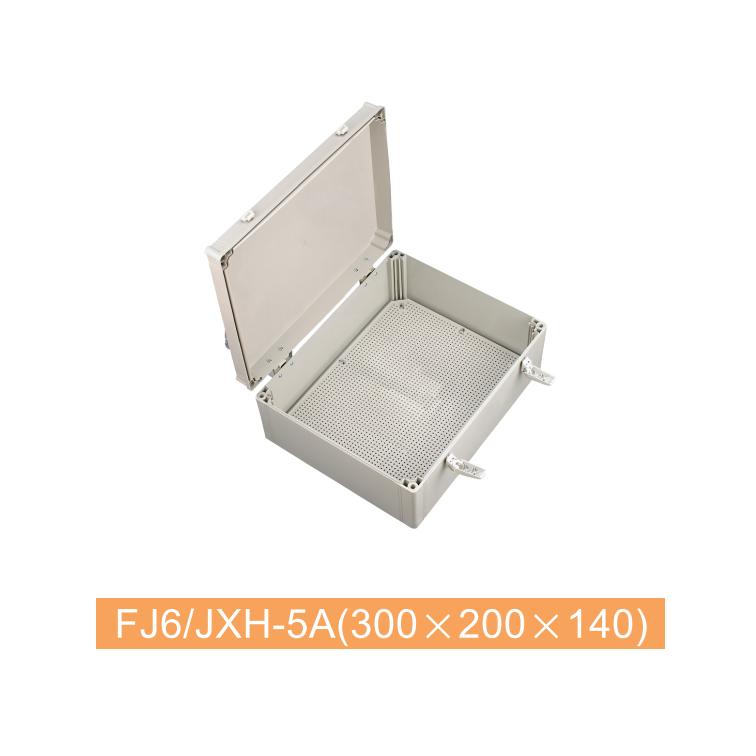

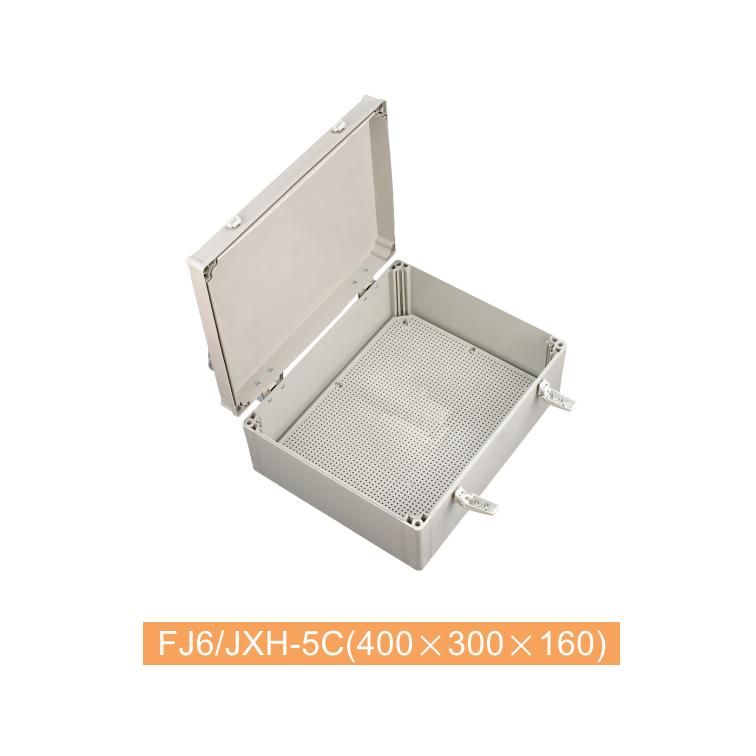

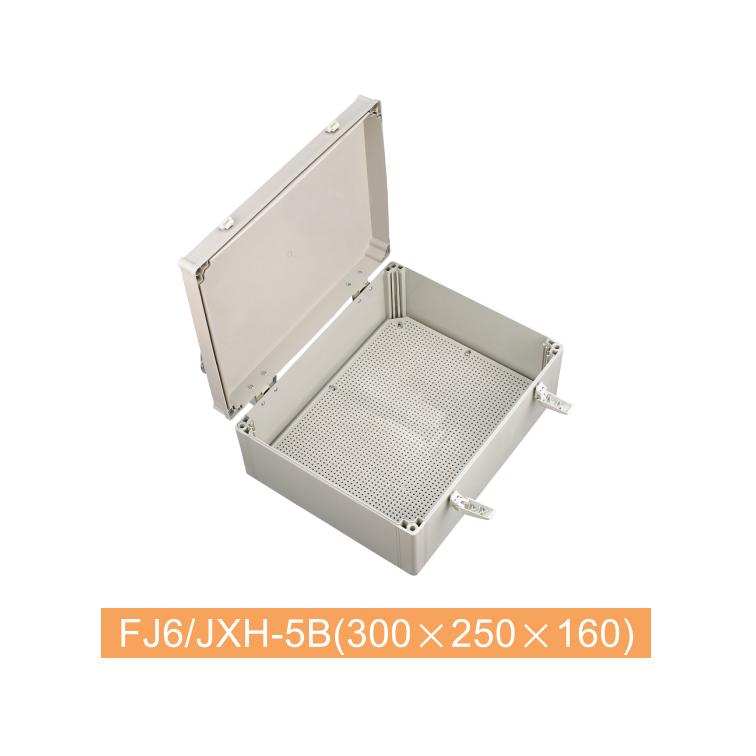

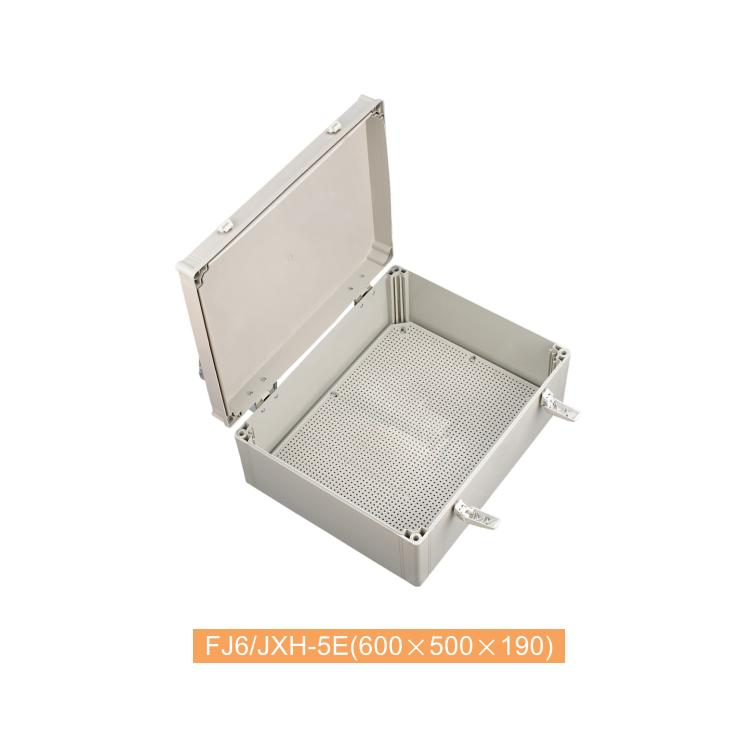

FJ6/JXH-5 Series Terminal Box / Junction Box Enclosure (Opaque Hinged Cover Type with Honeycomb Base)
Product Features
- Opaque enclosure design for concealed internal components.
- Hinged cover structure allowing convenient opening during installation and maintenance.
- Stable hinge mechanism ensuring smooth opening and closing.
- Secure fastening structure to prevent accidental opening during operation.
- Enclosure base with honeycomb structure, supporting flexible installation of internal components.
- Insulated housing providing reliable mechanical and environmental protection.
- Designed to meet the specified degree of protection according to model.
- Suitable for operation within the defined operating temperature range.
- Smooth internal surfaces supporting flexible internal component arrangement.
Detailed introduction
Application
The FJ6/JXH-5 series opaque hinged cover terminal box / junction box enclosures are designed to provide reliable protection and concealment for internal electrical components, while allowing frequent access during installation or maintenance.
They are suitable for applications where internal wiring does not require visual inspection and regular opening of the enclosure is required.
Key Specifications
 |
| ||||||||||
 |
| ||||||||||
 |
| ||||||||||
 |
| ||||||||||
 |
|
Installation and Operation
- Install the enclosure on a flat mounting surface.
- Open the hinged cover for internal installation work.
- Close and secure the cover completely after installation.
Installation Notes
- Hinged cover must be fully closed and secured during operation.
- Supplied as an empty enclosure only.
- Internal electrical components are not included.

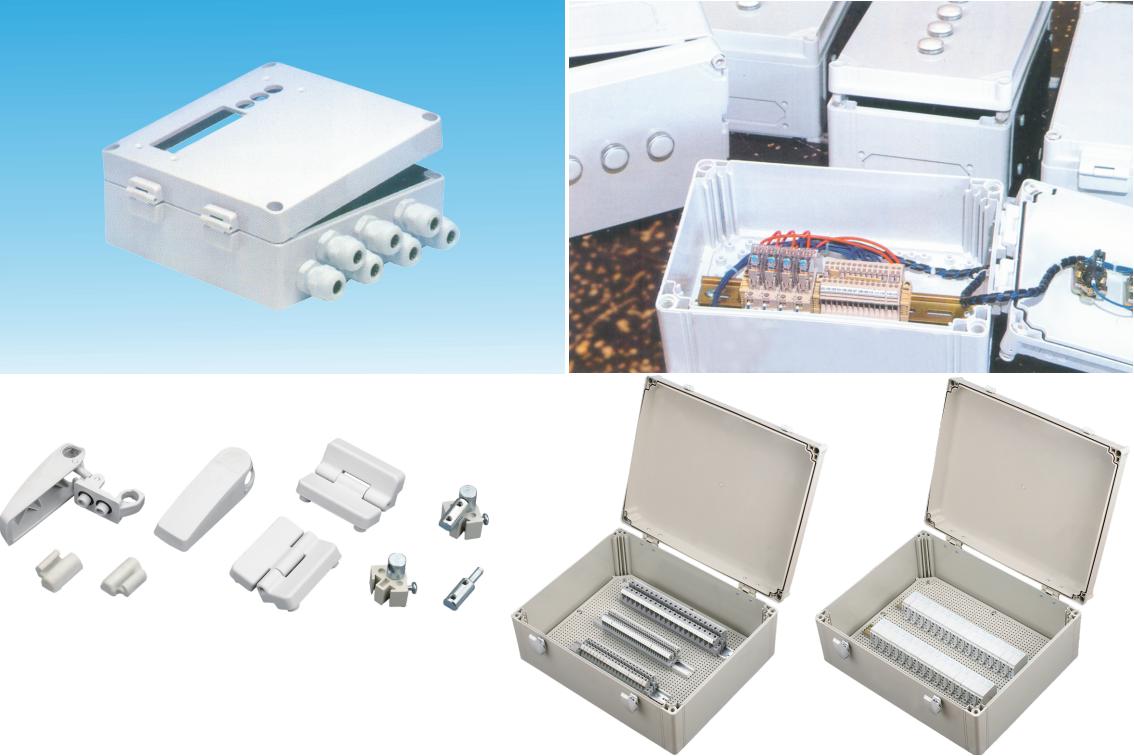

Customized enclosure and internal accessory solutions available according to customer requirements
