FJ6/JXH Series Terminal Box / Junction Box Enclosure (Opaque Cover Type)

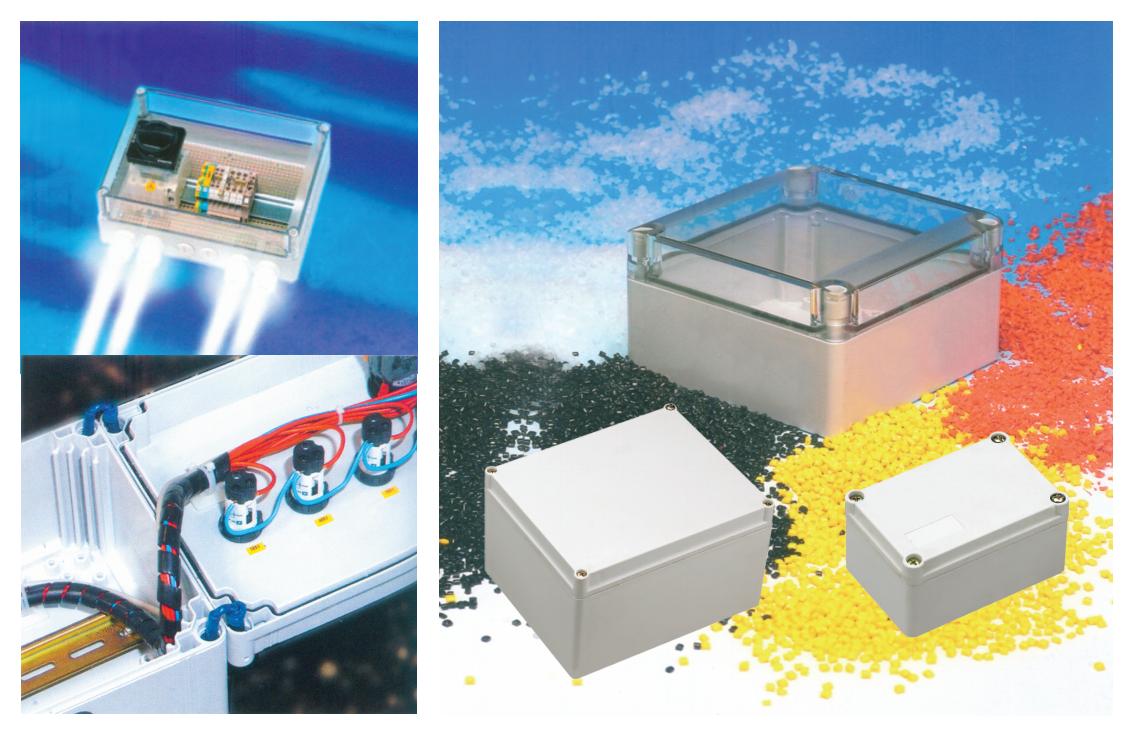

Product Features

Opaque enclosure design for concealed internal components.
Rigid housing structure ensuring mechanical protection.
Designed to meet specified degrees of protection according to model.
Suitable for operation within the defined operating temperature range.
Smooth internal surfaces suitable for internal component installation.

Detailed introduction

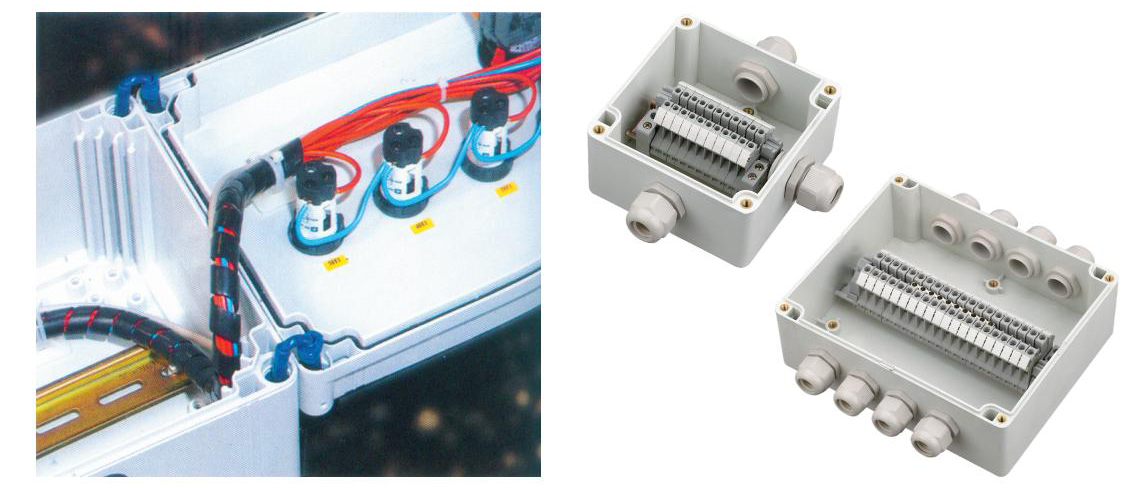

Application

The FJ6/JXH series opaque cover terminal box / junction box enclosures are designed to provide reliable protection and concealment for internal electrical components in low-voltage installations.

They are suitable for applications where visual inspection of internal wiring is not required.

Key Specifications

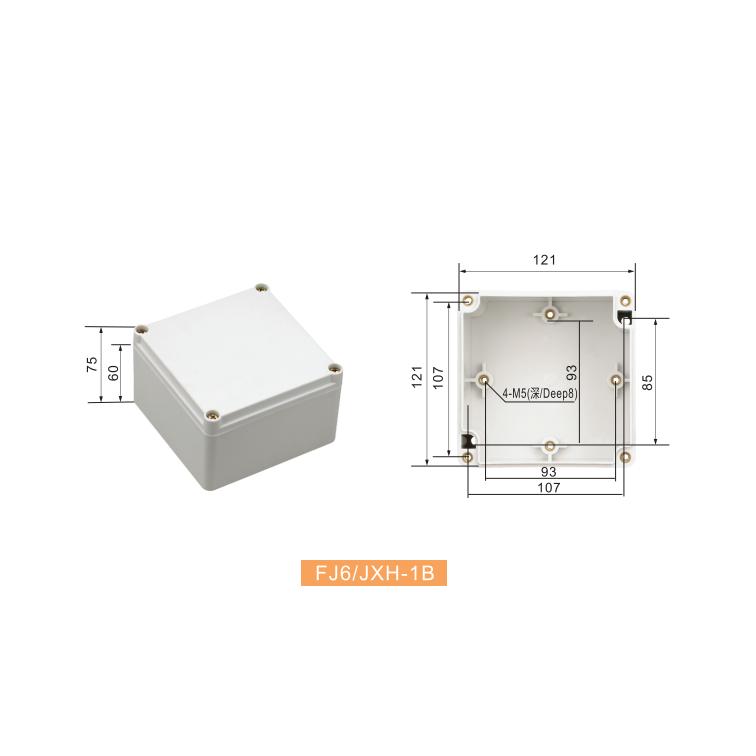

FJ6/JXH-1B

Exterior Dimensions: (L × W × H): 121*121*75 mm

Interior Dimensions (L × W × H): 113*113*61.5 mm

Installation Dimensions: 107*85 mm

Mounting Screw: M5

Material: Polycarbonate (PC)

Sealing Material: Neoprene

Operating Temperature: −40 °C ~ +85 °C

Degree of Protection: IP66

Color: Light grey

Internal Configuration: Empty enclosure

Order Number: 212365

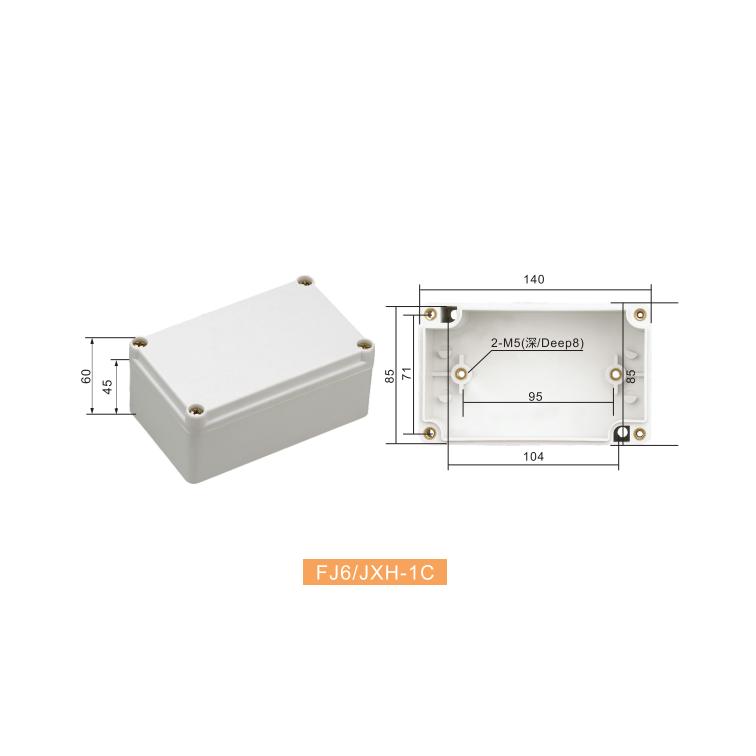

FJ6/JXH-1C

Exterior Dimensions: (L × W × H): 140*85*60 mm

Interior Dimensions (L × W × H): 113*113*61.5 mm

Installation Dimensions: 107*85 mm

Mounting Screw: M5

Material: Polycarbonate (PC)

Sealing Material: Neoprene

Operating Temperature: −40 °C ~ +85 °C

Degree of Protection: IP66

Color: Light grey

Internal Configuration: Empty enclosure

Order Number: 212366

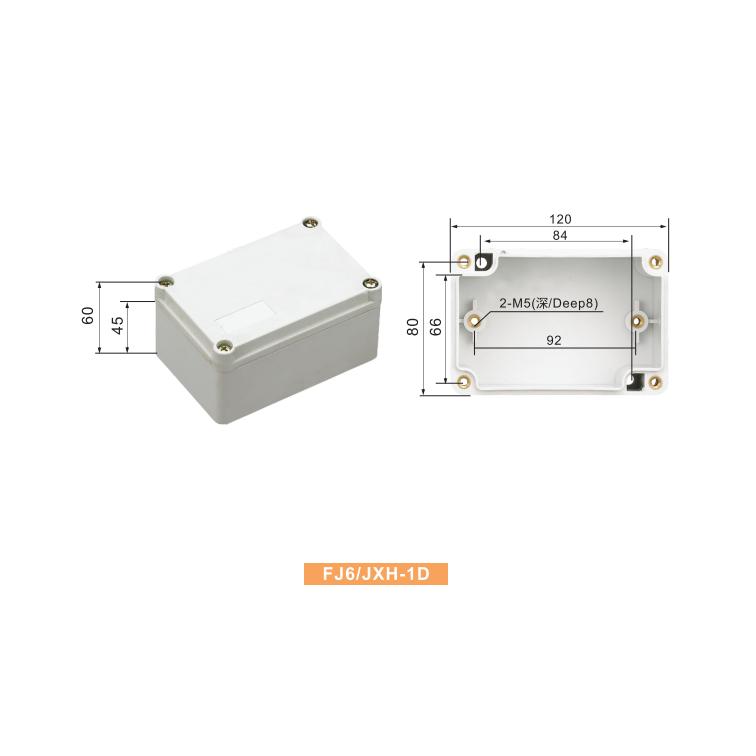

FJ6/JXH-1D

Exterior Dimensions: (L × W × H): 120*80*60 mm

Interior Dimensions (L × W × H): 106*68*46.5 mm

Installation Dimensions: 84*66 mm

Mounting Screw: M5

Material: Polycarbonate (PC)

Sealing Material: Neoprene

Operating Temperature: −40 °C ~ +85 °C

Degree of Protection: IP66

Color: Light grey

Internal Configuration: Empty enclosure

Order Number: 212367

FJ6/JXH-2A

Exterior Dimensions: (L × W × H): 160*120*83 mm

Interior Dimensions (L × W × H): 149*109*70 mm

Installation Dimensions: 124*106 mm

Mounting Screw: M5

Material: Polycarbonate (PC)

Sealing Material: Neoprene

Operating Temperature: −40 °C ~ +85 °C

Degree of Protection: IP66

Color: Light grey

Internal Configuration: Empty enclosure

Order Number: 212368

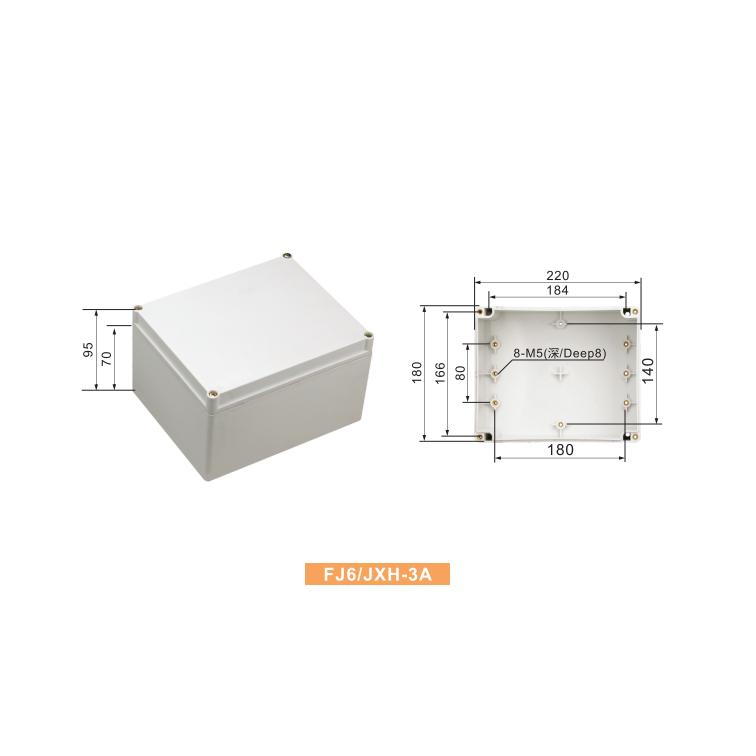

FJ6/JXH-3A

Exterior Dimensions: (L × W × H): 220*180*95 mm

Interior Dimensions (L × W × H): 207*167*81.5 mm

Installation Dimensions: 184*166 mm

Mounting Screw: M5

Material: Polycarbonate (PC)

Sealing Material: Neoprene

Operating Temperature: −40 °C ~ +85 °C

Degree of Protection: IP66

Color: Light grey

Internal Configuration: Empty enclosure

Order Number: 212369

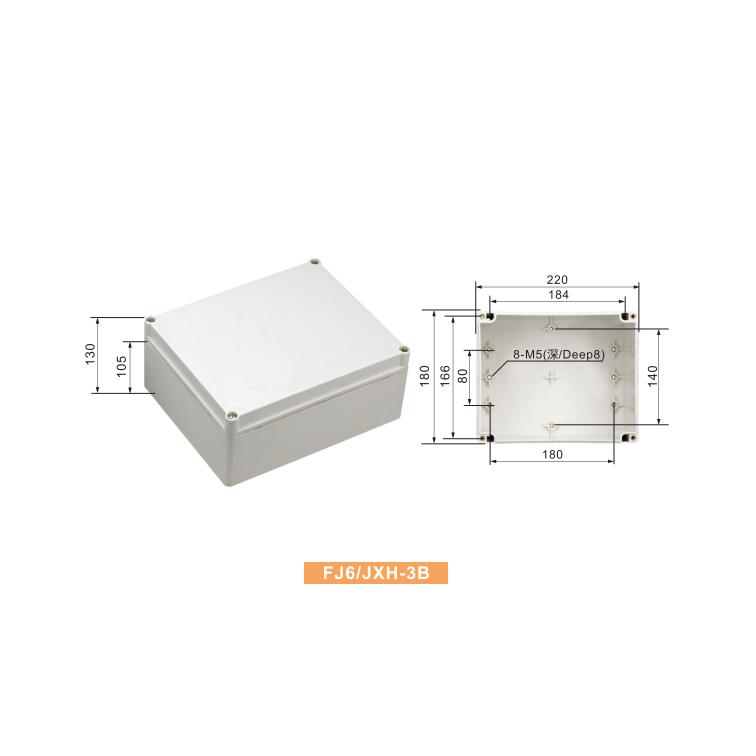

FJ6/JXH-3B

Exterior Dimensions: (L × W × H): 220*180*130 mm

Interior Dimensions (L × W × H): 207*167*124 mm

Installation Dimensions: 184*166 mm

Mounting Screw: M5

Material: Polycarbonate (PC)

Sealing Material: Neoprene

Operating Temperature: −40 °C ~ +85 °C

Degree of Protection: IP66

Color: Light grey

Internal Configuration: Empty enclosure

Order Number: 212370

Installation and Operation

Secure the enclosure on a suitable mounting surface
Prepare cable entry openings before wiring
Close and fasten the cover after installation

Installation Notes

Supplied as an empty enclosure only
Internal electrical components are not included
