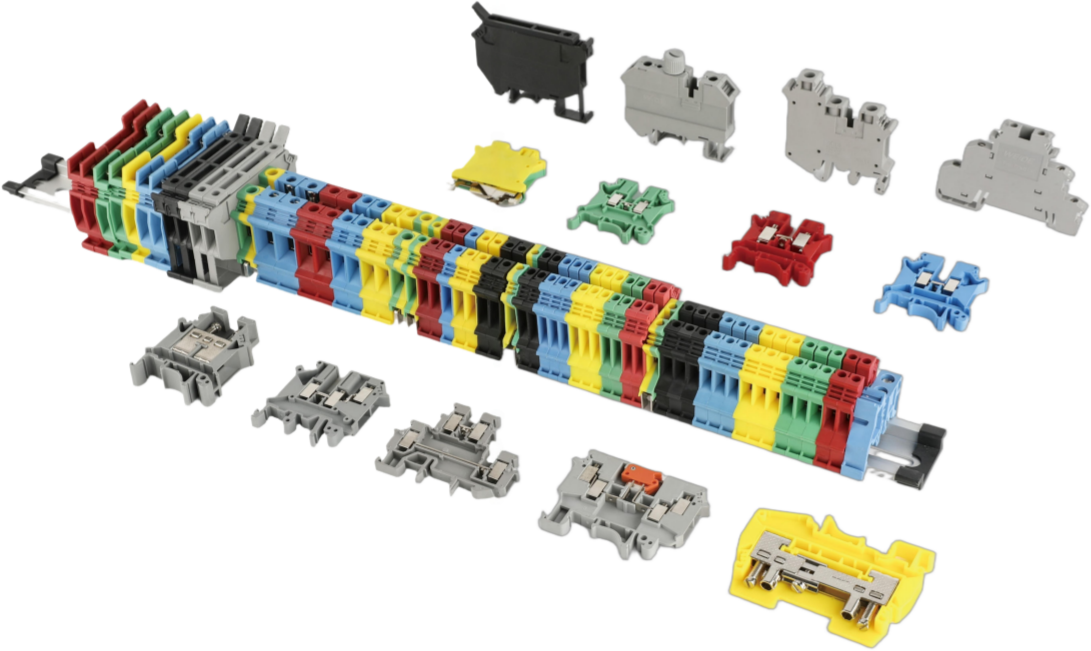

FJ6/SAK Screw-type Terminal Block Series
Product Features
- Screw clamp connection with strong and stable clamping force.
- Steel clamping frame design for robust and proven mechanical performance.
- Reliable electrical contact suitable for solid and stranded conductors.
- Classic terminal block structure with long-term application stability.
- Suitable for standard TH35 DIN rail mounting.
- Clear marking surface for easy circuit identification.
- Supports potential distribution through fixed or plug-in bridges.
- Fully compatible with complete SAK series accessories.
Detailed introduction
Application
The SAK series screw-type DIN rail terminal blocks are designed for reliable conductor connection and potential distribution in low-voltage electrical systems.
They are widely used in control cabinets, switchgear assemblies, power distributionpanels, and industrial automation equipment, providing secure and stable wiring for solid and stranded conductors.
Key Specifications
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Installation and Operation
- Mount the terminal block onto the standard TH35 DIN rail.
- Insert the conductor fully into the clamping point.
- Tighten the screw according to the recommended torque.
- Ensure all conductors are securely clamped before energizing.
Installation Notes
- Ensure conductors comply with the specified conductor ranges.
- Tighten screws according to the recommended torque values.
- Installation and maintenance must be carried out with power disconnected.
