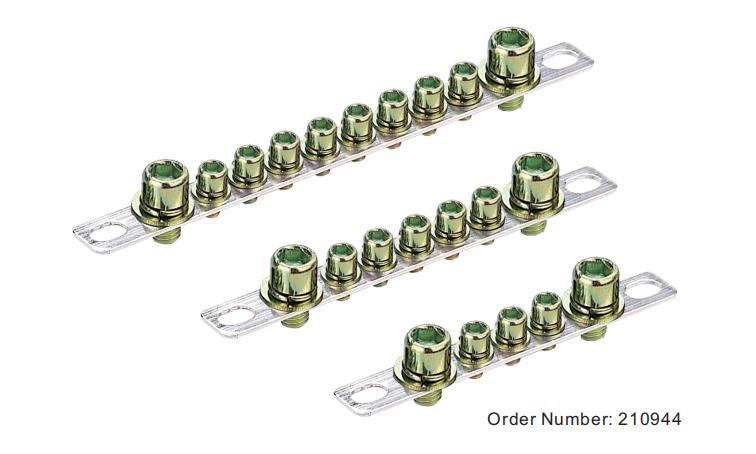

FJ6/XP0225B Copper Terminal Bars

Product Features

Copper terminal bar mounted on insulated base for enhanced safety.
All connection points electrically common (busbar function).
Prevents accidental contact and improves installation reliability• Secure screw clamping for stable conductor termination.
Widely used in standard distribution and control panels.

Detailed introduction

Suitable for neutral (N) and protective earth (PE) busbar applications in low-voltage electrical distribution systems.

Designed for current collection and equipotential connection in distribution boards,control panels, and meter boxes.

Model	Specification	L1 Overall Length	L2 Mounting Hole Center Distance	D Terminal Pitch	H Height	W Width	Clamping Screw	Material
FJ6/XP0225B Earth Copper Terminal Bar	2*25-5P	132	114	18	22	25	5*M8	H62
	2*25-7P	167	150	18	22	25	7*M8	H62
	2*25-10P	218	200	18	22	25	10*M8	H62
