FJ6G-400/25-70 Series Circuit Breaker Distribution Terminal Block(Pin/Conductor Connection)

Product Features

• Robust one-input, multi-output distribution structure.
• Dual connection structure provides reliable contact under high current.
• Large contact area ensures low contact resistance.
• Direct connection design simplifies high-current wiring.
• Suitable for power distribution cabinets and main circuits.

Detailed introduction

Application

Designed for high-capacity power distribution and connection in low-voltage electrical systems.
Equipped with a dual connection structure supporting pin-type input and direct conductor connection, the terminal block is professionally designed for use with 400-type circuit breakers, including electrical circuit breakers and air circuit breakers, enabling reliable power distribution in high-current applications.

Key Specifications

FJ6G-400/25-70/2*25

One-input; two-output

Input Conductor Range: 25-70mm²

Output Conductor Range: 1.5-25mm²

Order Number: 211780；Drawing Number: 01

FJ6G-400/25-70/3*16

One-input; three-output

Input Conductor Range: 25-70mm²

Output Conductor Range: 1.5-16mm²

Order Number: 211781；Drawing Number: 01

FJ6G-400/25-70/4*16

One-input; four-output

Input Conductor Range: 25-70mm²

Output Conductor Range: 1.5-16mm²

Order Number: 211782；Drawing Number: 01

FJ6G-400/25-70/6*16

One-input; six-output

Input Conductor Range: 25-70mm²

Output Conductor Range: 1.5-16mm²

Order Number: 211783；Drawing Number: 01

FJ6G-400/25-70/8*16

One-input; eight-output

Input Conductor Range: 25-70mm²

Output Conductor Range: 1.5-16mm²

Order Number: 211784；Drawing Number: 01

FJ6G-400/25-70/10*16

One-input; ten-output

Input Conductor Range: 25-70mm²

Output Conductor Range: 1.5-16mm²

Order Number: 211785；Drawing Number: 01

FJ6G-400/25-70/12*16

One-input; twenty-output

Input Conductor Range: 25-70mm²

Output Conductor Range: 1.5-16mm²

Order Number: 211786；Drawing Number: 01

FJ6G-400/25-70/16*10

One-input; sixteen-output

Input Conductor Range: 25-70mm²

Output Conductor Range: 1.5-10mm²

Order Number: 211787；Drawing Number: 01

FJ6G-400/25-70/18*10

One-input; eighteen-output

Input Conductor Range: 25-70mm²

Output Conductor Range: 1.5-10mm²

Order Number: 211788；Drawing Number: 01

FJ6G-400/25-70/16*16

One-input; sixteen-output

Input Conductor Range: 25-70mm²

Output Conductor Range: 1.5-16mm²

Order Number: 211789；Drawing Number: 02

FJ6G-400/25-70/18*16

One-input; eighteen-output

Input Conductor Range: 25-70mm²

Output Conductor Range: 1.5-16mm²

Order Number: 211790；Drawing Number: 02

FJ6G-400/25-70/24*6

One-input; twenty-four-output

Input Conductor Range: 25-70mm²

Output Conductor Range: 1.5-6mm²

Order Number: 211791；Drawing Number: 02

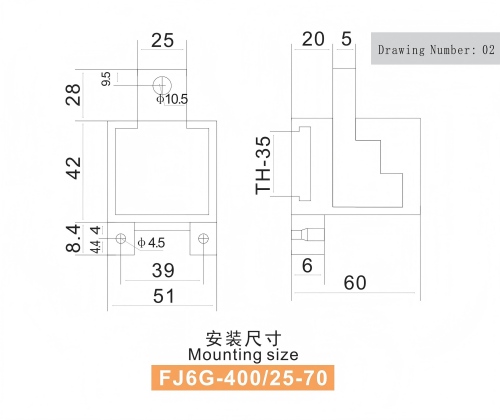

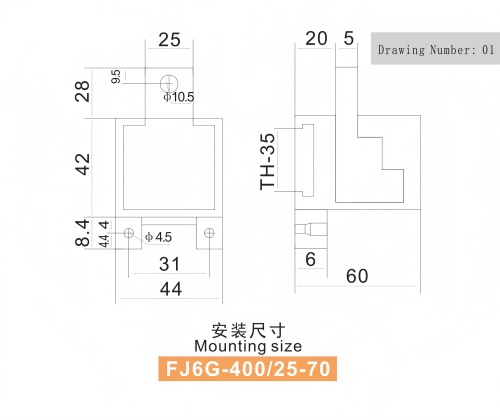

Outline and Mounting Dimension

Reference Table for Copper Conductors for Incoming and Outgoing Lines
