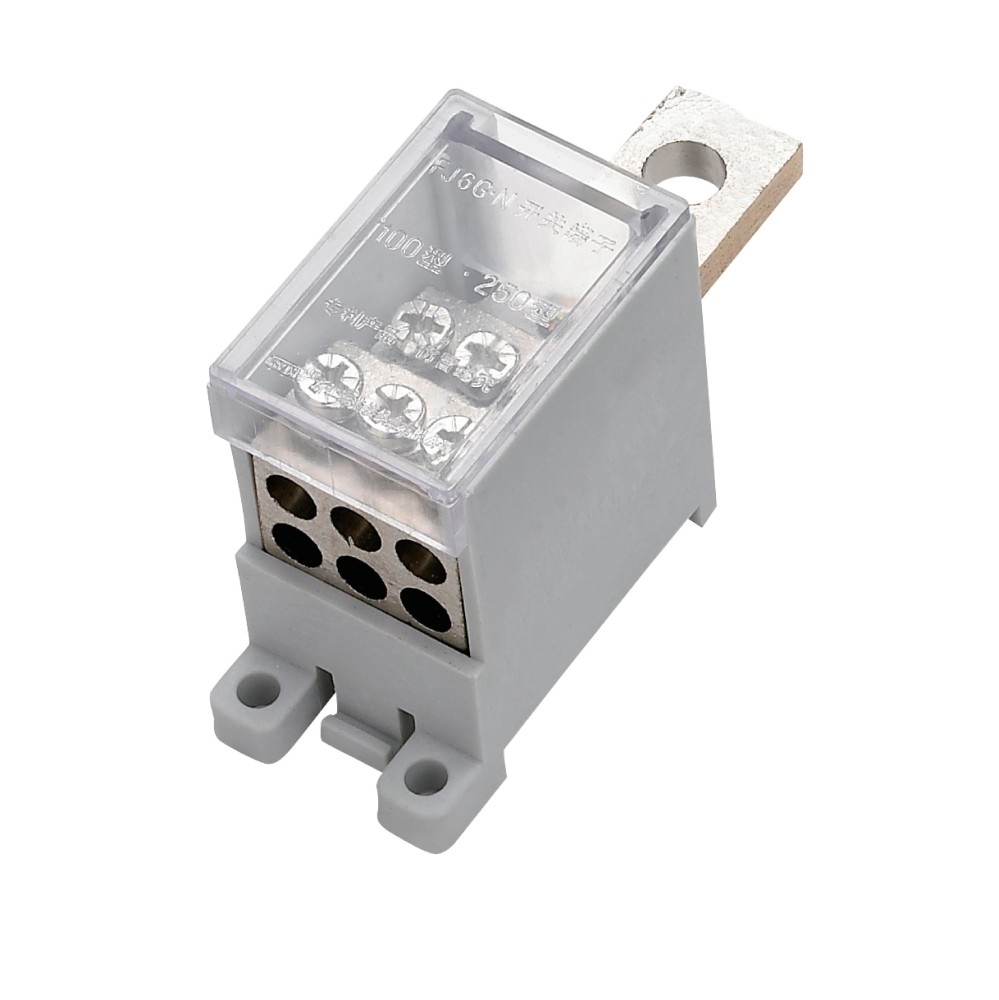

FJ6G-250/16-50 Series Circuit Breaker Distribution Terminal Block(Pin/Conductor Connection)

Product Features

• One-input, multi-output distribution structure.
• Dual connection design ensures stable electrical contact.
• Large contact cross-section reduces temperature rise under load.
• Direct connection to circuit breakers without transition wiring.
• Solid and compact design for cabinet installation.

Detailed introduction

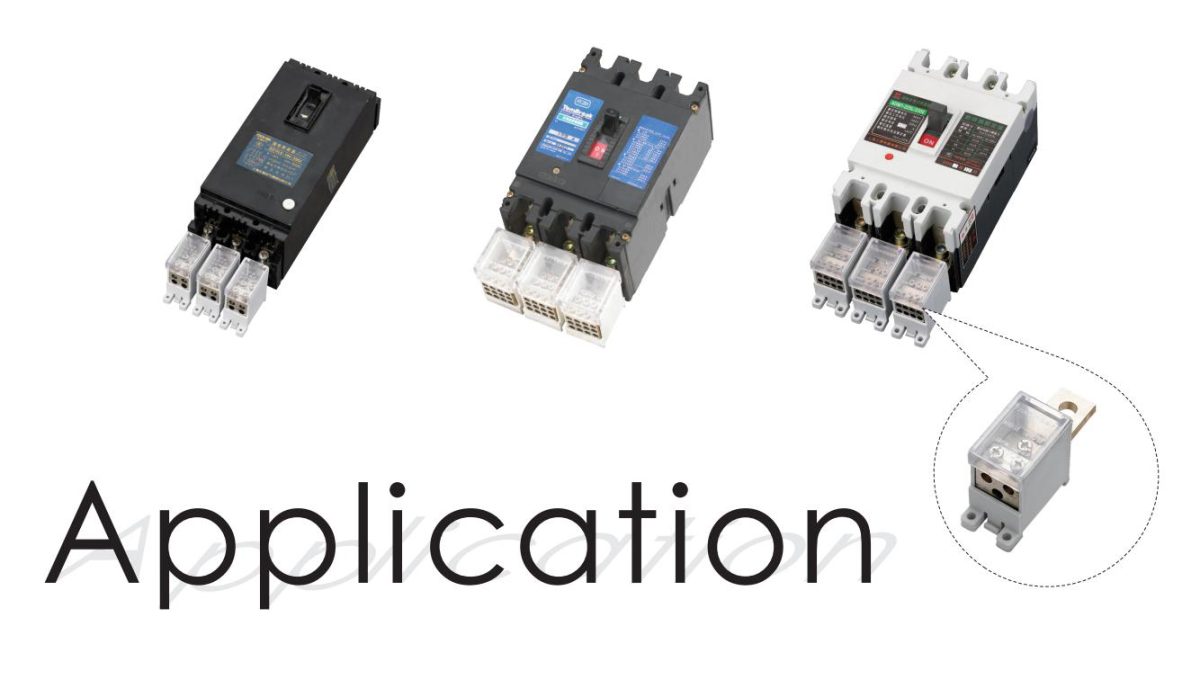

Application

Designed for power distribution and connection in low-voltage electrical systems.
Featuring a dual connection structure supporting pin-type input and direct conductor connection, the terminal block is professionally designed for use with 160-type, 225-type, and 250-type circuit breakers, including electrical circuit breakers and air circuit breakers, providing stable and efficient multi-circuit power distribution.

Key Specifications

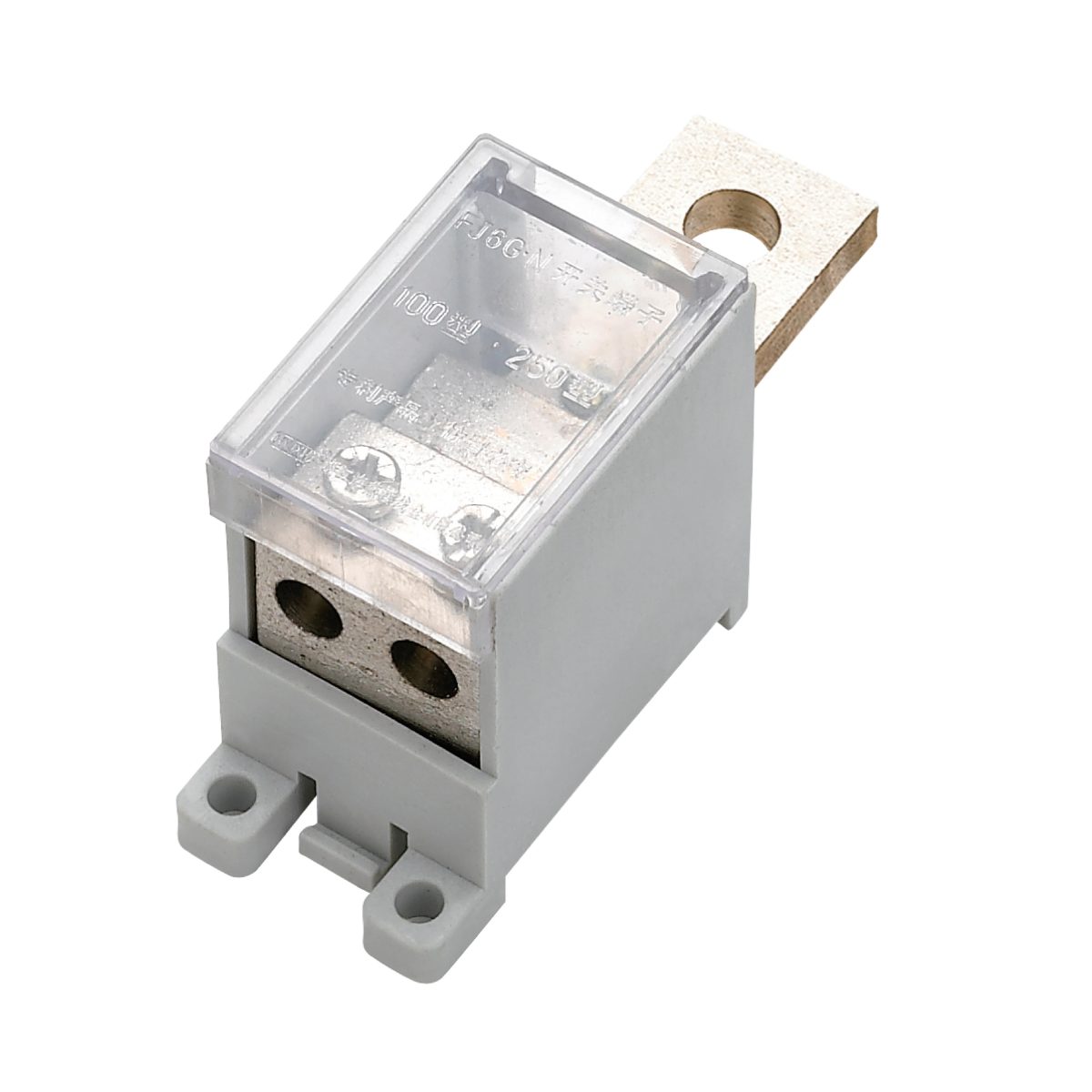

FJ6G-250/16-50/2*25

One-input; two-output

Input Conductor Range: 16-50mm²

Output Conductor Range: 1.5-25mm²

Order Number: 211773

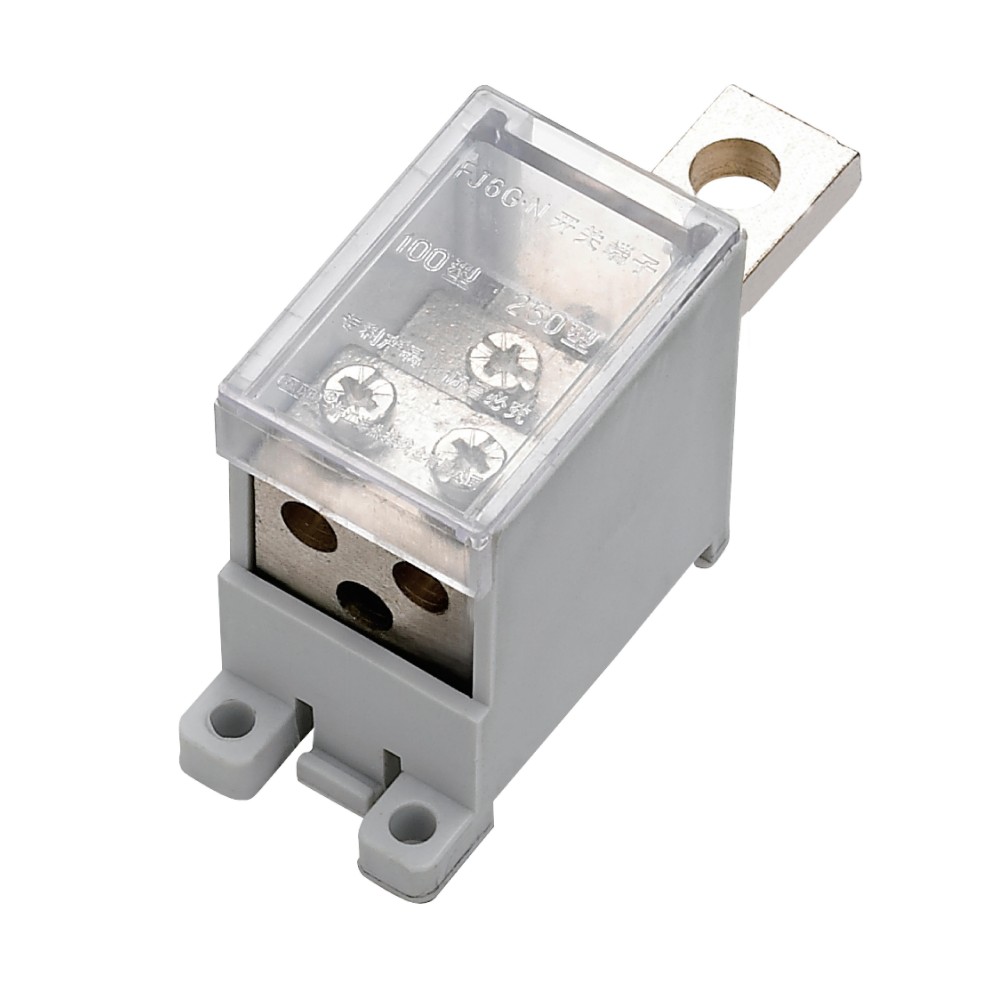

FJ6G-250/16-50/3*16

One-input; three-output

Input Conductor Range: 16-50mm²

Output Conductor Range: 1.5-16mm²

Order Number: 211774

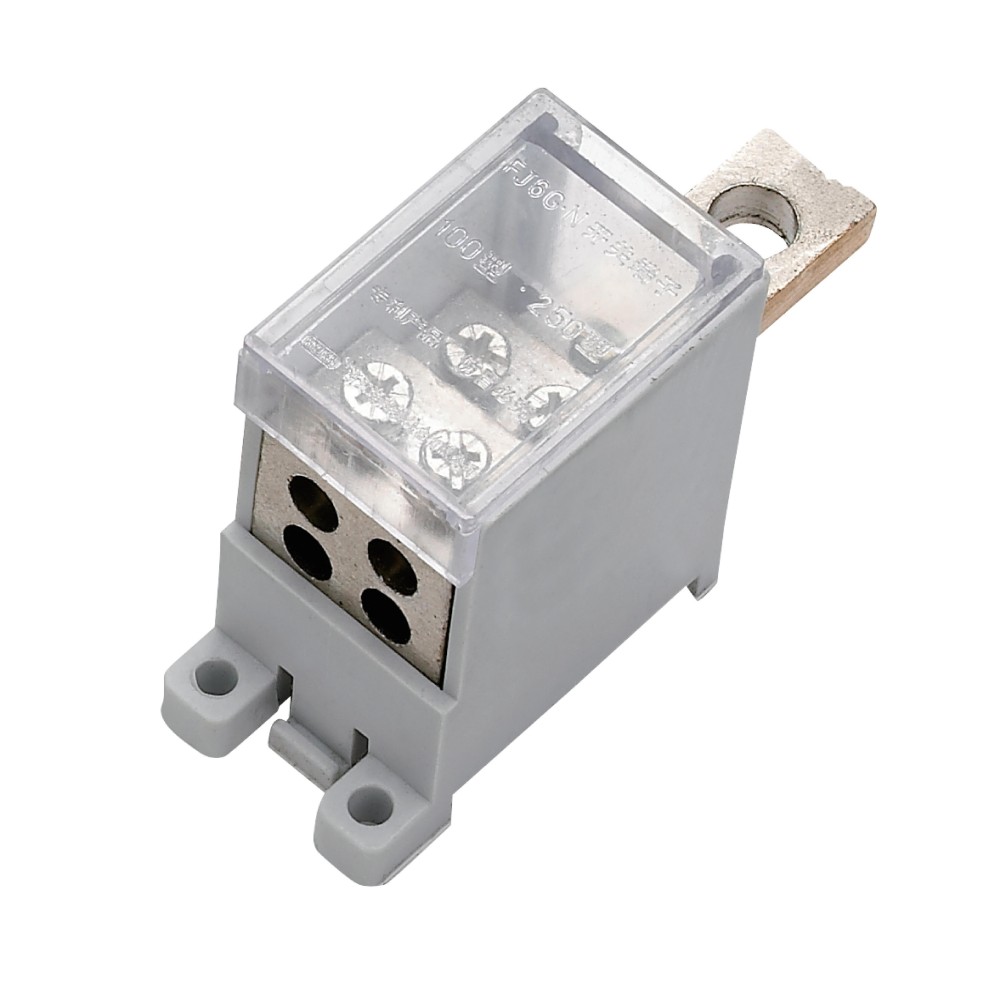

FJ6G-250/16-50/4*16

One-input; four-output

Input Conductor Range: 16-50mm²

Output Conductor Range: 1.5-16mm²

Order Number: 211775

FJ6G-250/16-50/6*16

One-input; six-output

Input Conductor Range: 16-50mm²

Output Conductor Range: 1.5-16mm²

Order Number: 211776

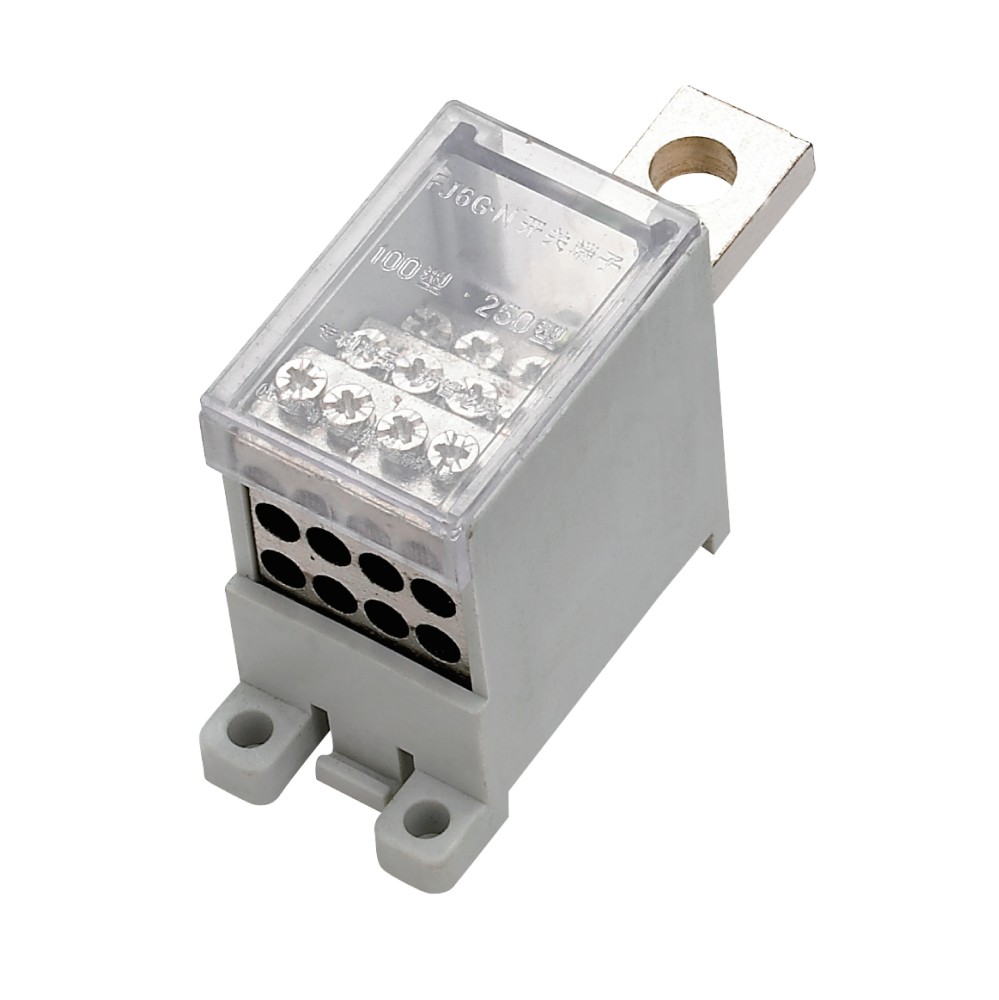

FJ6G-250/16-50/8*10

One-input; eight-output

Input Conductor Range: 16-50mm²

Output Conductor Range: 1.5-10mm²

Order Number: 211777

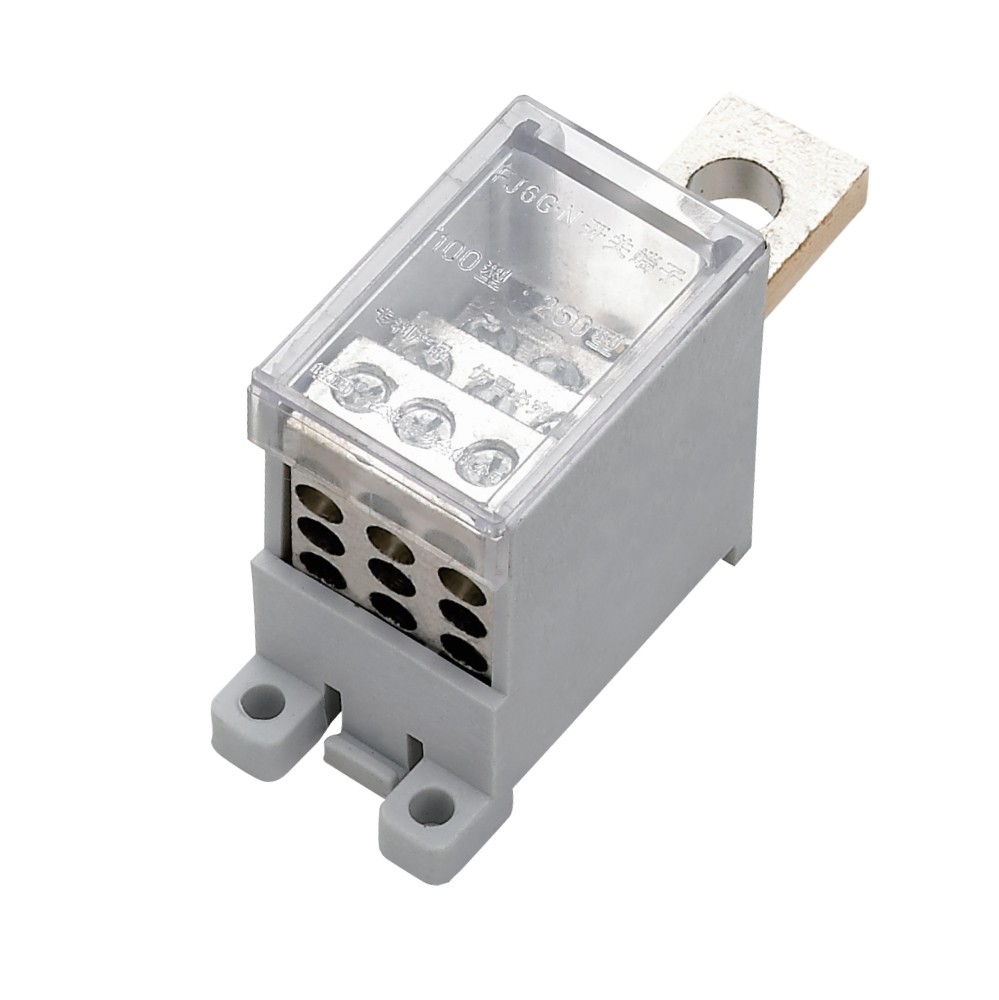

FJ6G-250/16-50/9*16

One-input; nine-output

Input Conductor Range: 16-50mm²

Output Conductor Range: 1.5-16mm²

Order Number: 211778

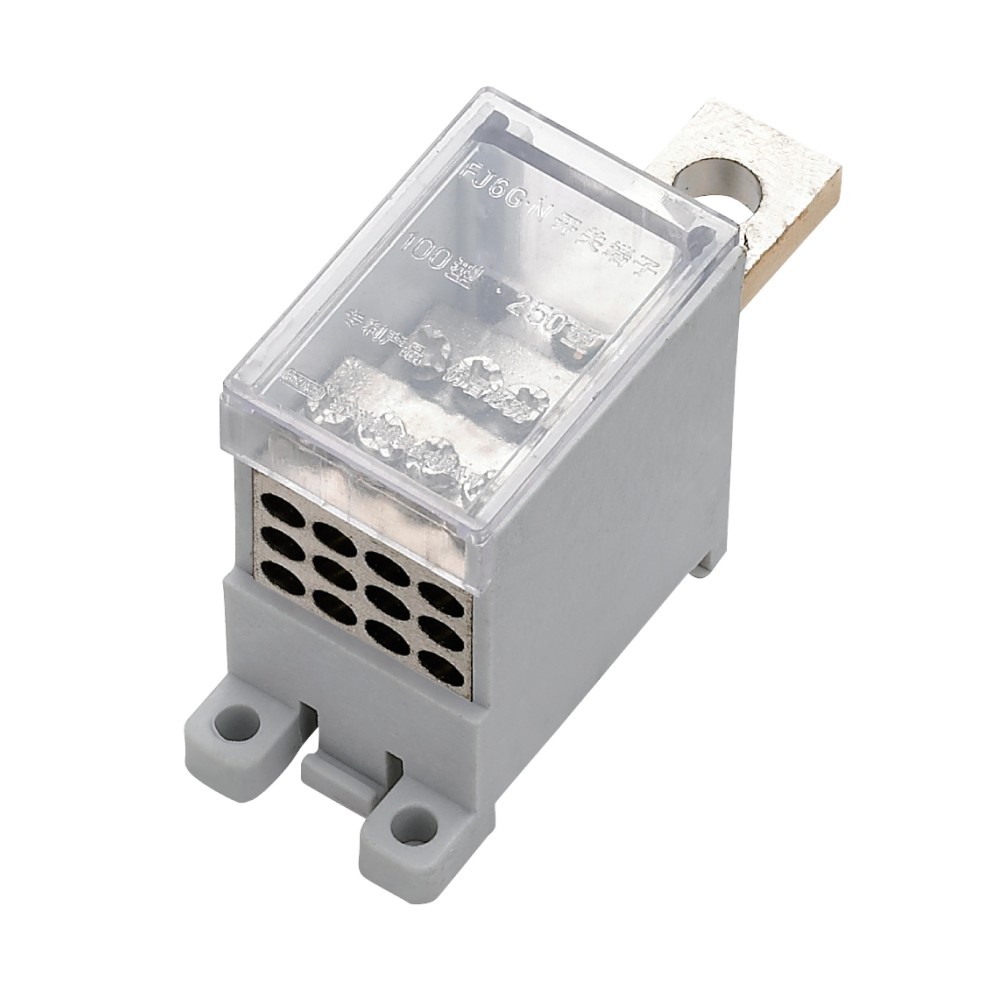

FJ6G-250/16-50/12*10

One-input; twenty-output

Input Conductor Range: 16-50mm²

Output Conductor Range: 1.5-10mm²

Order Number: 211779

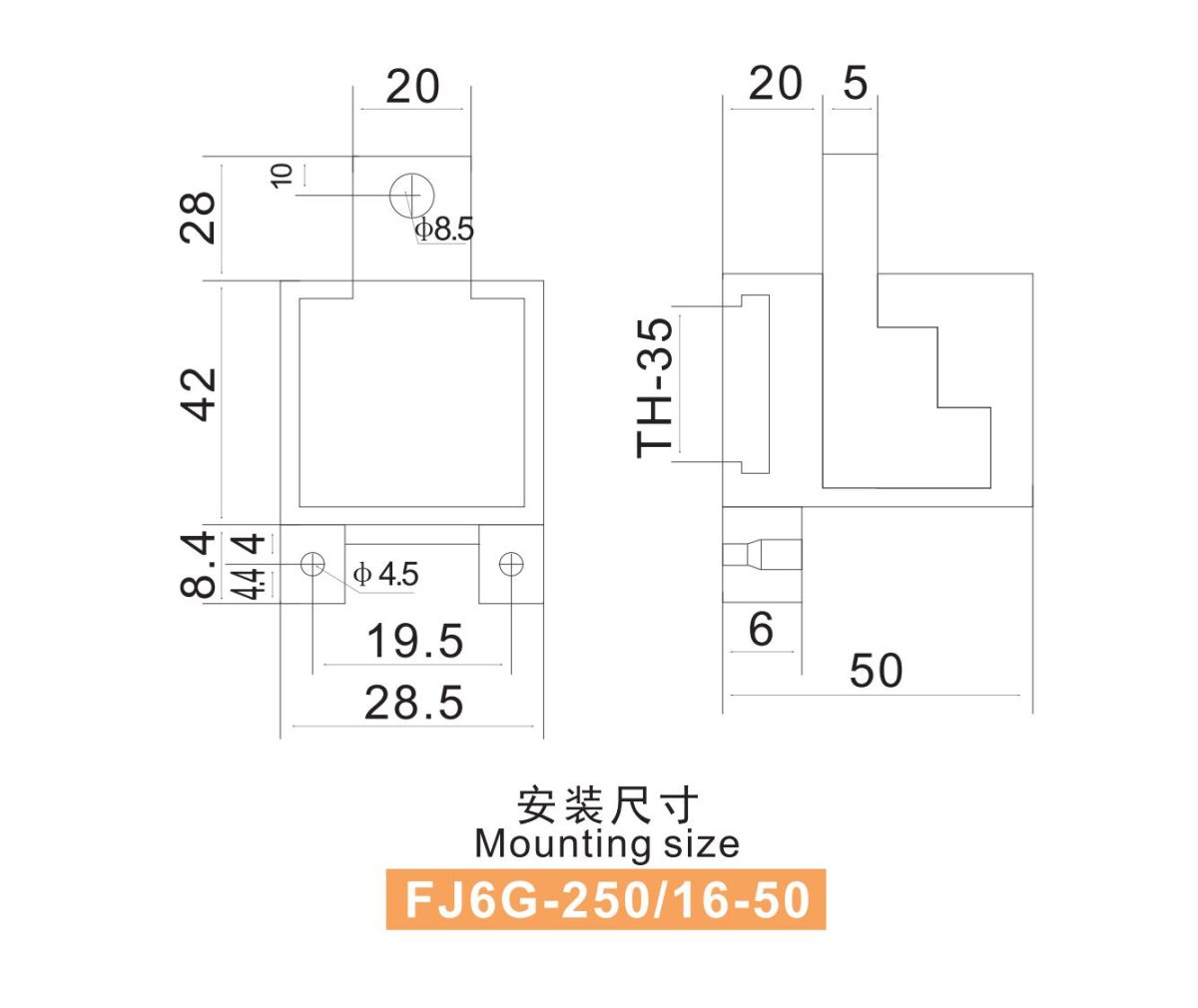

Outline and Mounting Dimension

Reference Table for Copper Conductors for Incoming and Outgoing Lines
