FJ6/158（TYPE100）Series Circuit Breaker Distribution Terminal Block(Pin-type)

Product Features

• Robust distribution structure suitable for higher current applications.
• Pin-type input conductor provides reliable contact and low contact resistance.
• Direct connection to circuit breakers without transition wiring.
• Solid and compact design for installation in distribution and control cabinets.
• High insulation rating suitable for demanding industrial and commercial applications.

Detailed introduction

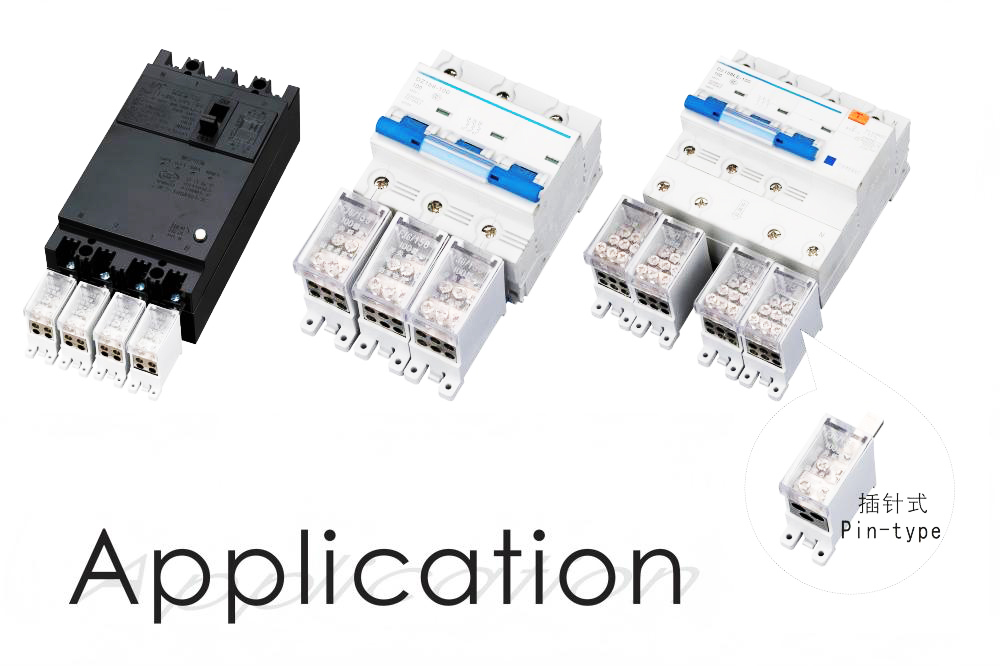

Application

Designed for high-capacity power distribution in low-voltage electrical systems.
Equipped with a pin-type input conductor, the terminal block is used in combination with miniature circuit breakers (MCBs), residual current circuit breakers (RCCBs), and air circuit breakers to achieve stable and efficient multi-circuit power distribution.

Key Specifications

FJ6/158/2*16

One-input; two-output

Input Conductor: Pin-type(Type 100)

Output Conductor Range: 1.5-16mm²

Order Number: 211759

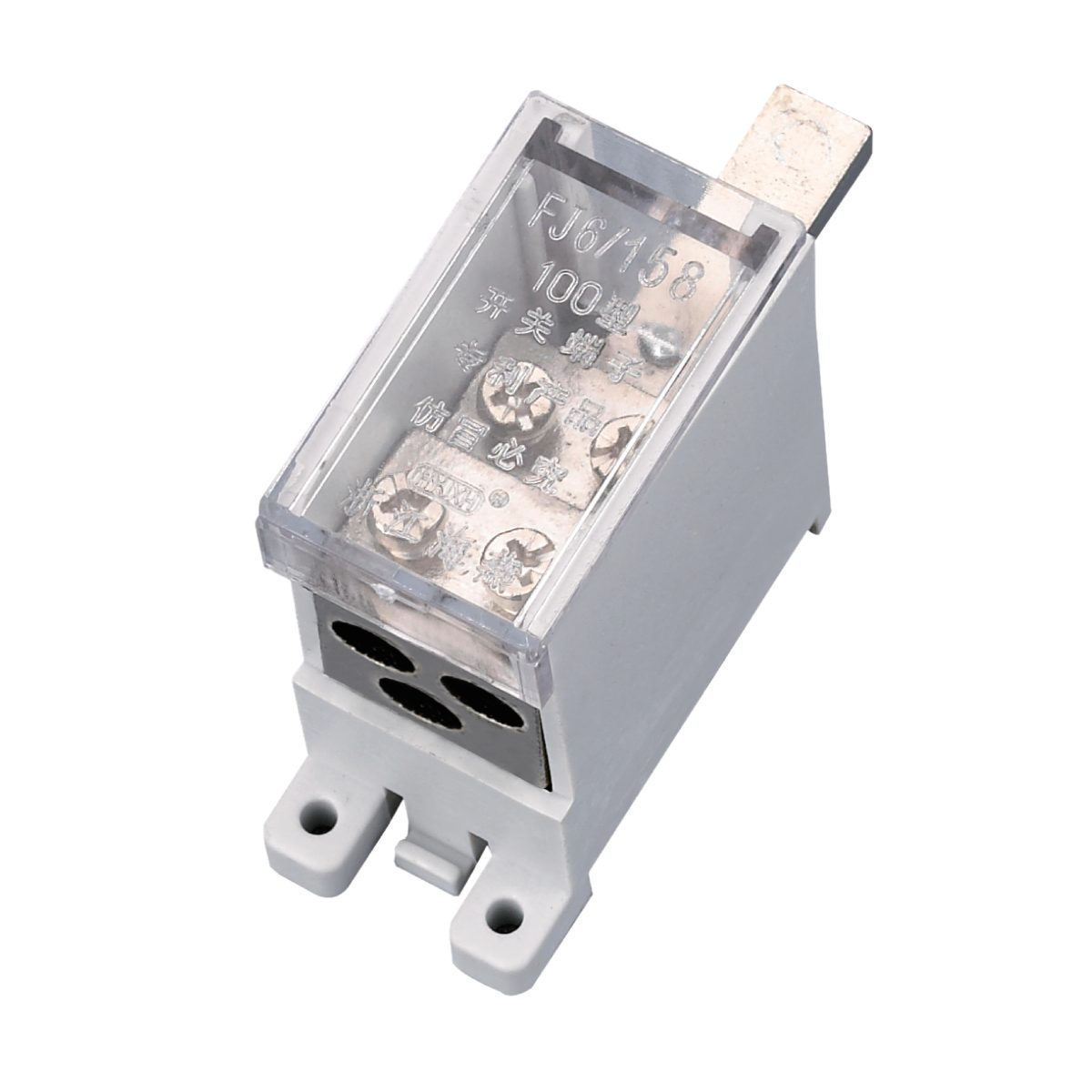

FJ6/158/3*16

One-input; three-output

Input Conductor: Pin-type(Type 100)

Output Conductor Range: 1.5-16mm²

Order Number: 211760

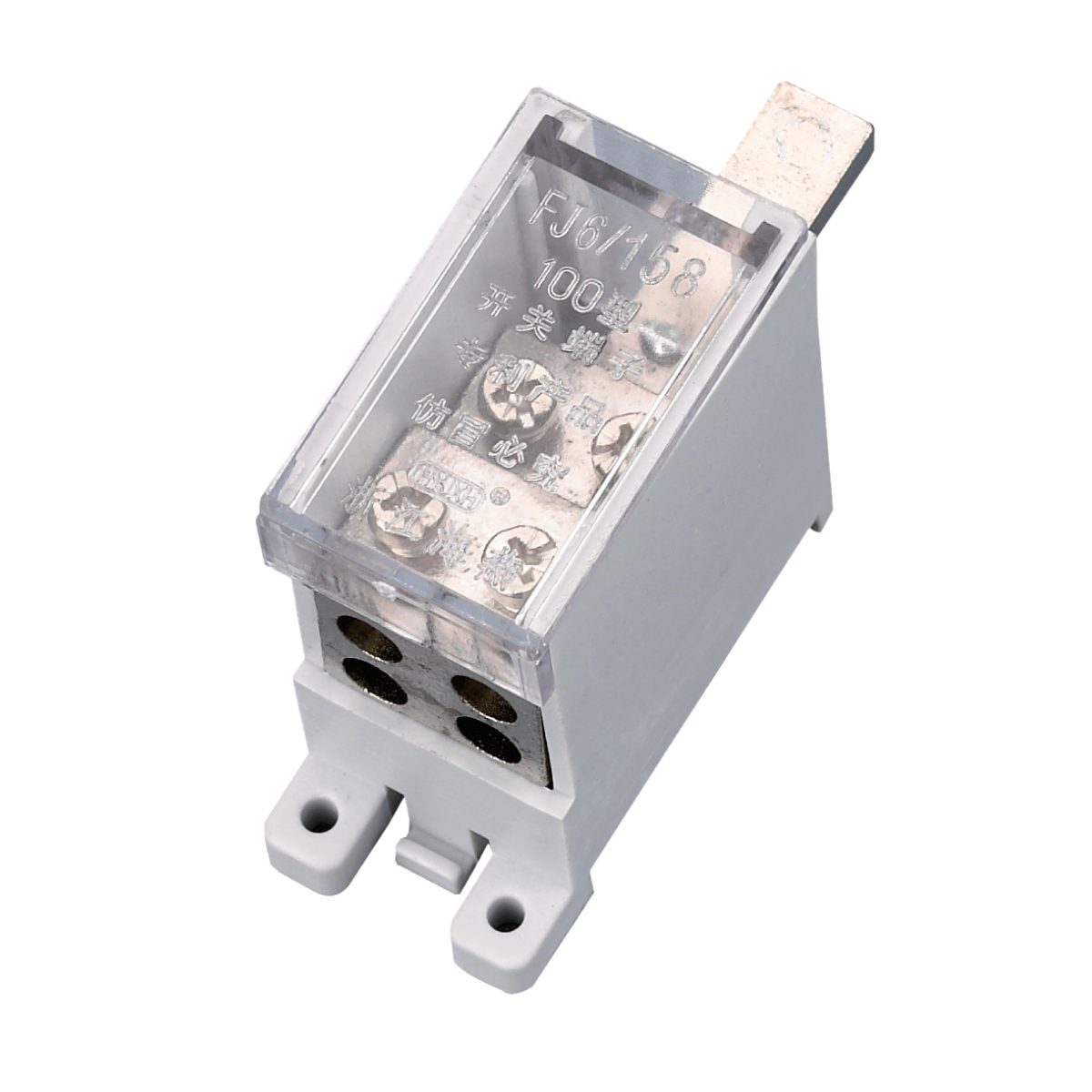

FJ6/158/4*16

One-input; four-output

Input Conductor: Pin-type(Type 100)

Output Conductor Range: 1.5-16mm²

Order Number: 211761

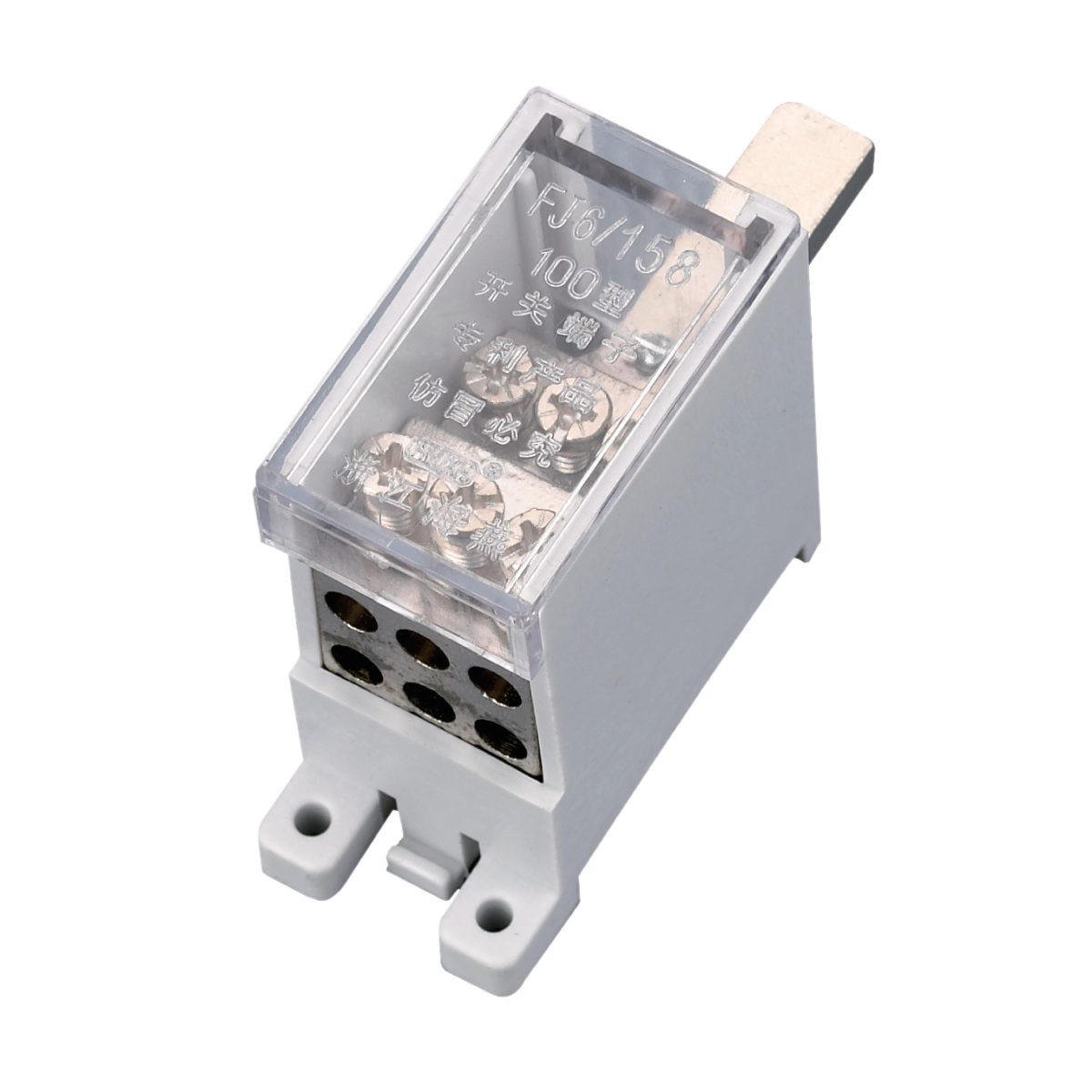

FJ6/158/6*16

One-input; six-output

Input Conductor: Pin-type(Type 100)

Output Conductor Range: 1.5-16mm²

Order Number: 211762

FJ6/158/6*10

One-input; six-output

Input Conductor: Pin-type(Type 100)

Output Conductor Range: 1.5-10mm²

Order Number: 211763

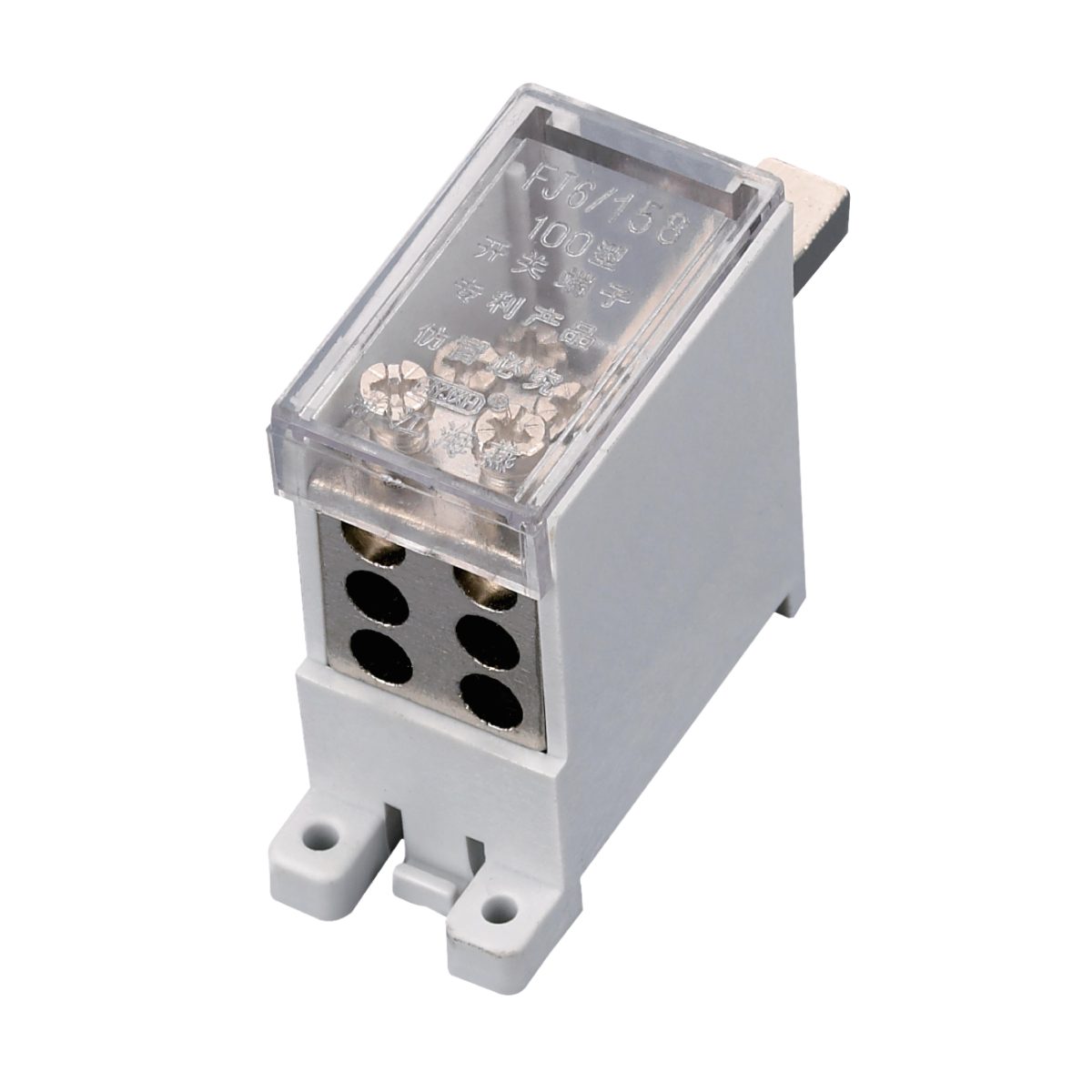

FJ6/158/8*10

One-input; eight-output

Input Conductor: Pin-type(Type 100)

Output Conductor Range: 1.5-10mm²

Order Number: 211764

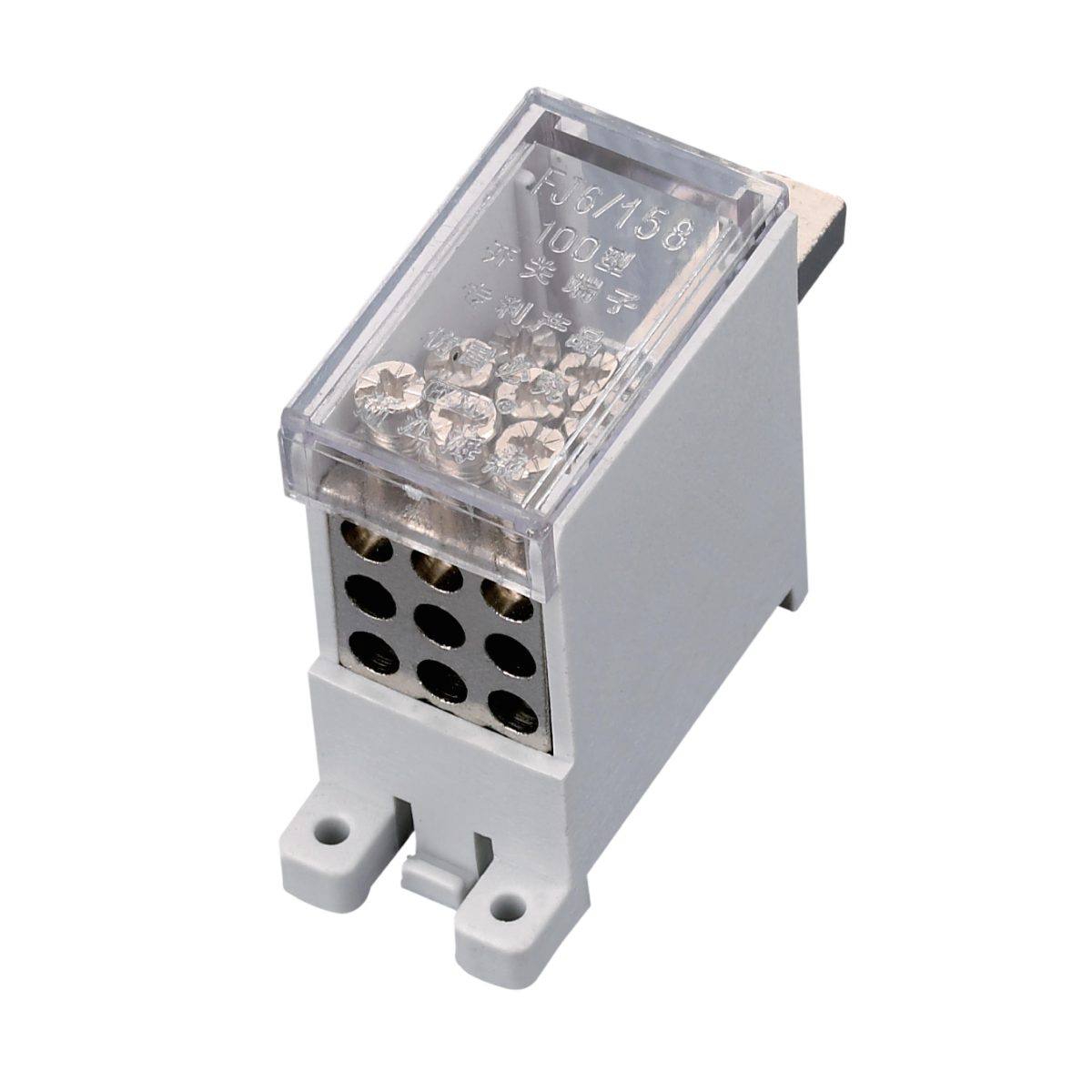

FJ6/158/9*10

One-input; nine-output

Input Conductor: Pin-type(Type 100)

Output Conductor Range: 1.5-10mm²

Order Number: 211765

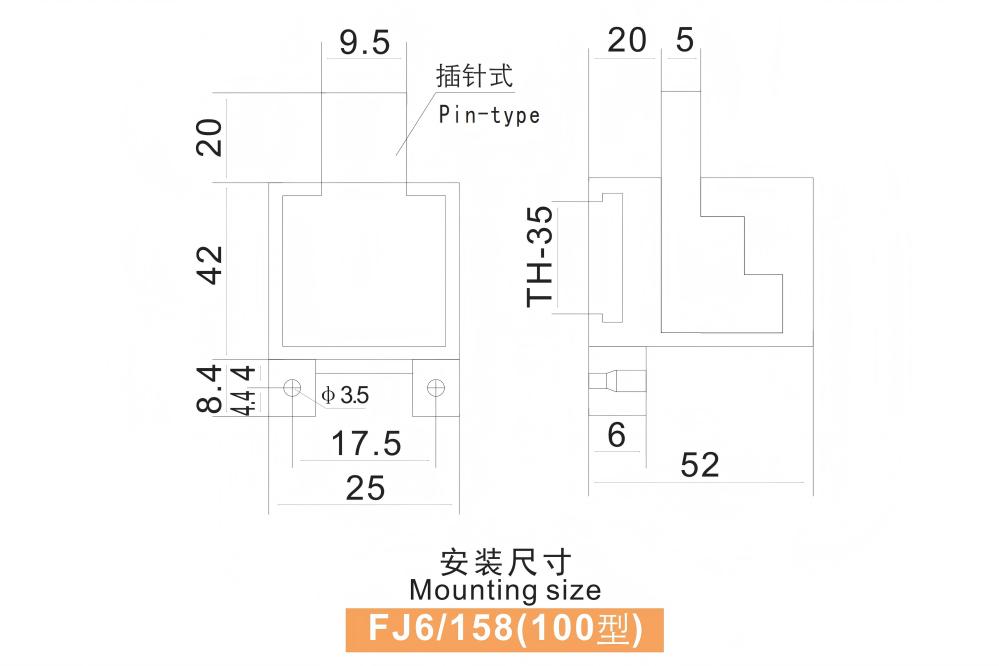

Outline and Mounting Dimension

Reference Table for Copper Conductors for Incoming and Outgoing Lines
