FJ6/JTS2D-120B(36L) Series Power Distribution Terminal Block (Cable Lug/Busbar Connection, Flip-cover)

Product Features

Power distribution terminal block with one input and multiple outputs for multi-circuit power and circuit distribution.
Supports multiple line-in connection methods:

-Cable lug connection.

–Copper busbar connection.

Flip-type protective cover design allows convenient opening and closing during wiring.
High current-carrying capability for main power infeed/outfeed and heavy-current applications.
Suitable for use as a compact busbar solution, heavy-current terminal block, neutral (N) terminal block, protective earth (PE) terminal block, and equipotential bonding terminal block.
Reliable screw clamping ensures stable electrical contact.
Transparent protective cover for enhanced operational safety.
Compact design for DIN rail or panel mounting in control cabinets

Detailed introduction

Application

The FJ6/JTS2D-B series power distribution terminal blocks are suitable for power and circuit distribution in electrical control equipment, switchgear assemblies,distribution boxes, and multi-circuit enclosures.

They can serve as a compact alternative to small busbars for centralized connection and management of power, neutral, protective earth, and equipotential conductors.

Key Specifications

FJ6/JTS2D-120B/2*16(36L)

Configuration: One-input; two-output

Input conductor range: 50-120 mm²

Output conductor range: 2.5-16 mm²

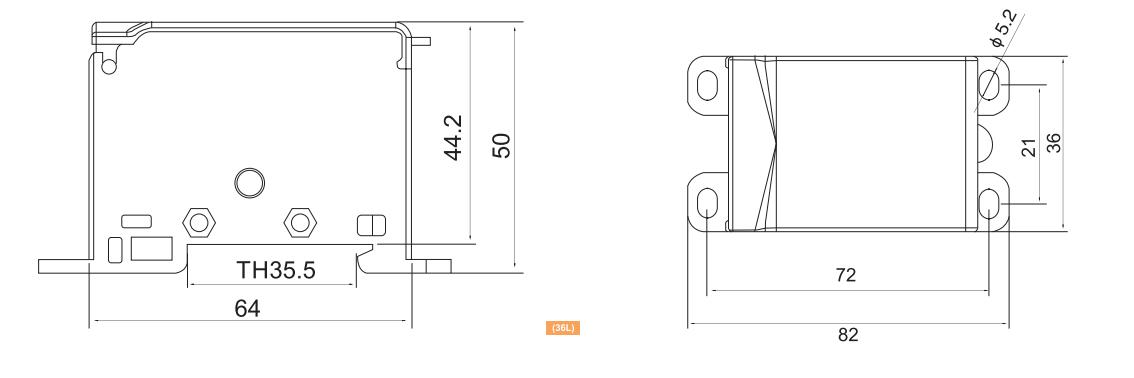

Dimensions: 82(W)*50(H)*36(L)

Order Number: 210746

FJ6/JTS2D-120B/3*25(36L)

Configuration: One-input; three-output

Input conductor range: 50-120 mm²

Output conductor range: 4-35 mm²

Dimensions: 82(W)*50(H)*36(L)

Order Number: 210747

FJ6/JTS2D-120B/4*16(36L)

Configuration: One-input; four-output

Input conductor range: 50-120 mm²

Output conductor range: 2.5-16 mm²

Dimensions: 82(W)*50(H)*36(L)

Order Number: 210748

FJ6/JTS2D-120B/6*25(36L)

Configuration: One-input; six-output

Input conductor range: 50-120 mm²

Output conductor range: 2.5-35 mm²

Dimensions: 82(W)*50(H)*36(L)

Order Number: 210749

FJ6/JTS2D-120B/8*10(36L)

Configuration: One-input; eight-output

Input conductor range: 50-120 mm²

Output conductor range: 2.5-10 mm²

Dimensions: 82(W)*50(H)*36(L)

Order Number: 210750

Installation and Operation

Fixed mounting on base plate using M5 screws.
DIN rail mounting on standard 35 mm rail (TH-35).

Installation Notes

Installation and wiring shall be carried out with the power supply disconnected.
During installation and operation, ensure conductors are fully inserted into the clamping area.
When using cable lugs or copper busbars for line-in connection, ensure clean and flatcontact surfaces.
After installation, all connection points shall be checked for secure fixing
