FJ6G-600/35-95 Series Circuit Breaker Distribution Terminal Block(Pin/Conductor Connection)

Product Features

• One-input, multi-output structure designed for high-current applications.
• Dual connection design ensures stable electrical contact under heavy load.
• Large contact cross-section supports continuous high-current operation.
• Direct connection to circuit breakers without transition wiring.
• Suitable for demanding industrial power distribution environments.

Detailed introduction

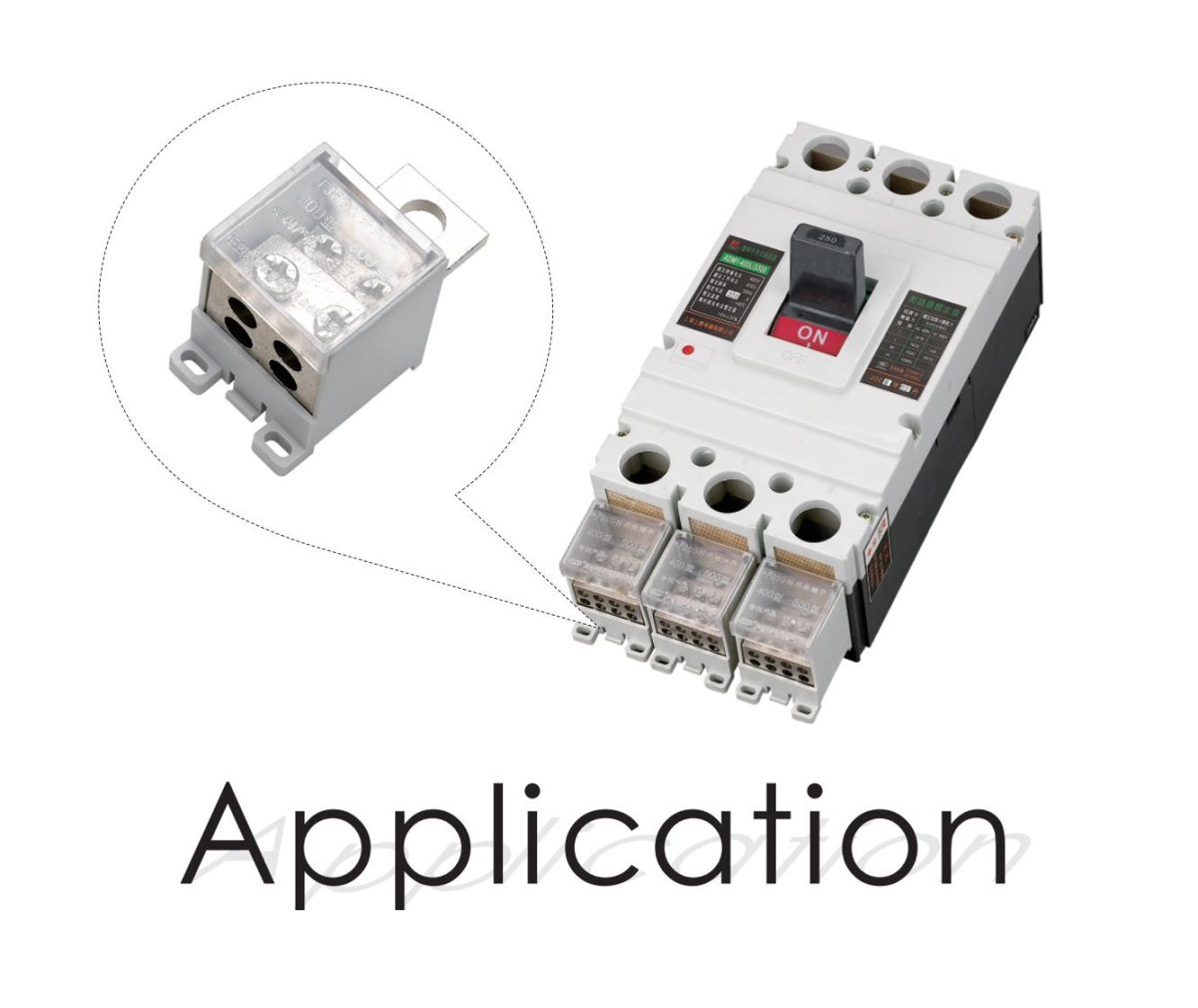

Application

Designed for high-current power distribution and connection in low-voltage electrical systems.
Featuring a dual connection structure supporting pin-type input and direct conductor connection, the terminal block is professionally designed for use with 600-type circuit breakers, including electrical circuit breakers and air circuit breakers, ensuring stable operation in heavy-duty power distribution systems.

Key Specifications

FJ6G-600/35-95/2*25

One-input; two-output

Input Conductor Range: 35-95mm²

Output Conductor Range: 1.5-25mm²

Order Number: 211780；Drawing Number: 01

FJ6G-600/35-95/3*16

One-input; three-output

Input Conductor Range: 35-95mm²

Output Conductor Range: 1.5-16mm²

Order Number: 211781；Drawing Number: 01

FJ6G-600/35-95/4*16

One-input; four-output

Input Conductor Range: 35-95mm²

Output Conductor Range: 1.5-16mm²

Order Number: 211782；Drawing Number: 01

FJ6G-600/35-95/6*16

One-input; six-output

Input Conductor Range: 35-95mm²

Output Conductor Range: 1.5-16mm²

Order Number: 211783；Drawing Number: 01

FJ6G-600/35-95/8*16

One-input; eight-output

Input Conductor Range: 35-95mm²

Output Conductor Range: 1.5-16mm²

Order Number: 211784；Drawing Number: 01

FJ6G-600/35-95/10*16

One-input; ten-output

Input Conductor Range: 35-95mm²

Output Conductor Range: 1.5-16mm²

Order Number: 211785；Drawing Number: 01

FJ6G-600/35-95/12*16

One-input; twenty-output

Input Conductor Range: 35-95mm²

Output Conductor Range: 1.5-16mm²

Order Number: 211786；Drawing Number: 01

FJ6G-600/35-95/16*10

One-input; sixteen-output

Input Conductor Range: 35-95mm²

Output Conductor Range: 1.5-10mm²

Order Number: 211787；Drawing Number: 01

FJ6G-600/35-95/18*10

One-input; eighteen-output

Input Conductor Range: 35-95mm²

Output Conductor Range: 1.5-10mm²

Order Number: 211788；Drawing Number: 01

FJ6G-600/35-95/16*16

One-input; sixteen-output

Input Conductor Range: 35-95mm²

Output Conductor Range: 1.5-16mm²

Order Number: 211789；Drawing Number: 02

FJ6G-600/35-95/18*16

One-input; eighteen-output

Input Conductor Range: 35-95mm²

Output Conductor Range: 1.5-16mm²

Order Number: 211790；Drawing Number: 02

FJ6G-600/35-95/24*6

One-input; twenty-four-output

Input Conductor Range: 35-95mm²

Output Conductor Range: 1.5-6mm²

Order Number: 211791；Drawing Number: 02

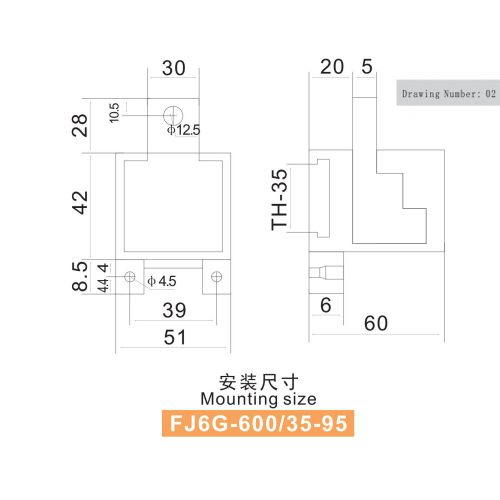

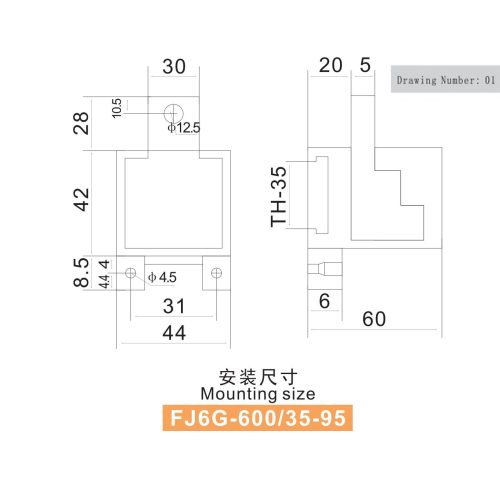

Outline and Mounting Dimension

Reference Table for Copper Conductors for Incoming and Outgoing Lines
