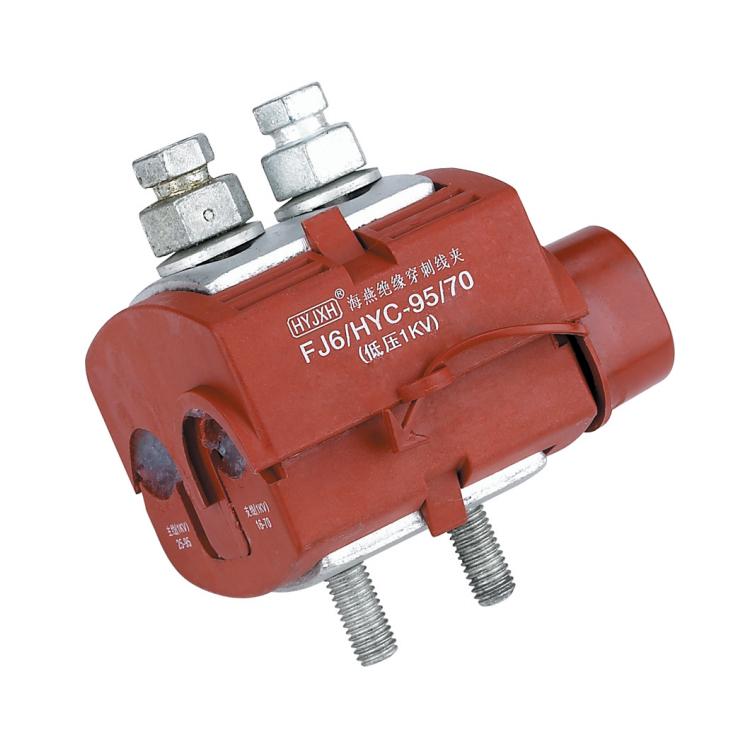

FJ6/HYC Series Branch Type Insulation Piercing Connector — Flame-retardant Version(1kV)

Flame-retardant Version Features

• Optional flame-retardant version available for ZR/NH cables requiring higher fire-safety performance.
• All components are flame-retardant and compliant with 960°C glow-wire and vertical burning tests.
• Connector body made of high-strength, flame-retardant insulating material resistant to mechanical and climatic stress.
• Waterproof construction withstands 1 kV insulation test under water without breakdown. • Sealed branch end-cap prevents moisture ingress.
• Suitable for live-line or de-energized installation.

Application

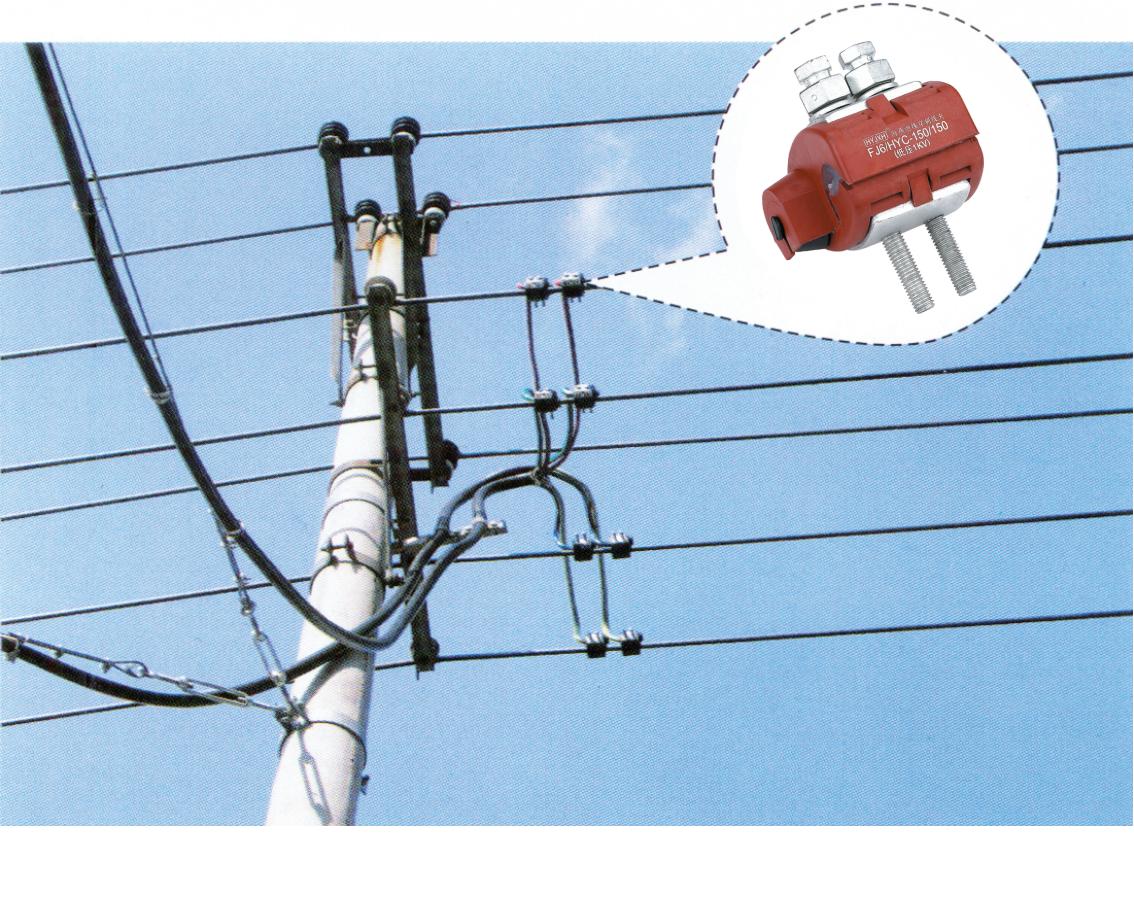

The FJ6/HYC series branch type insulation piercing connectors are used for the connection and branching of overhead insulated conductors in medium-voltage distribution networks.

They are suitable for 1 kV insulated lines, providing reliable electrical performance for branching, tapping, and line extensions in MV overhead systems.

Key Specifications

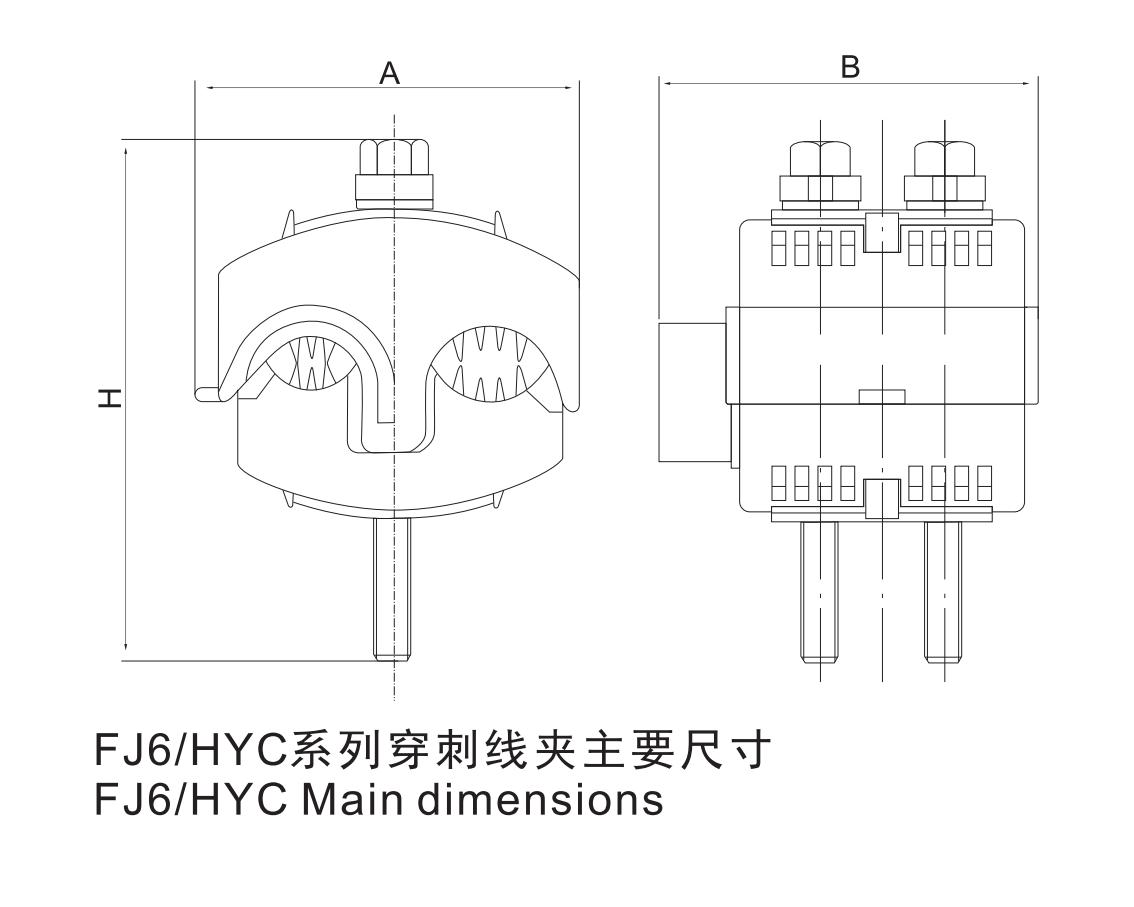

	FJ6/HYC/V0-95/70 Applicable Voltage: 1 kV Main Conductor Range (Input): 25-95 mm² Branch Conductor Range (Output):16-70 mm² Nominal Current: 207A Overall Dimensions: A68 × B82.5 × H108 mm Bolt Quantity: 2 pcs Order Number: 212592

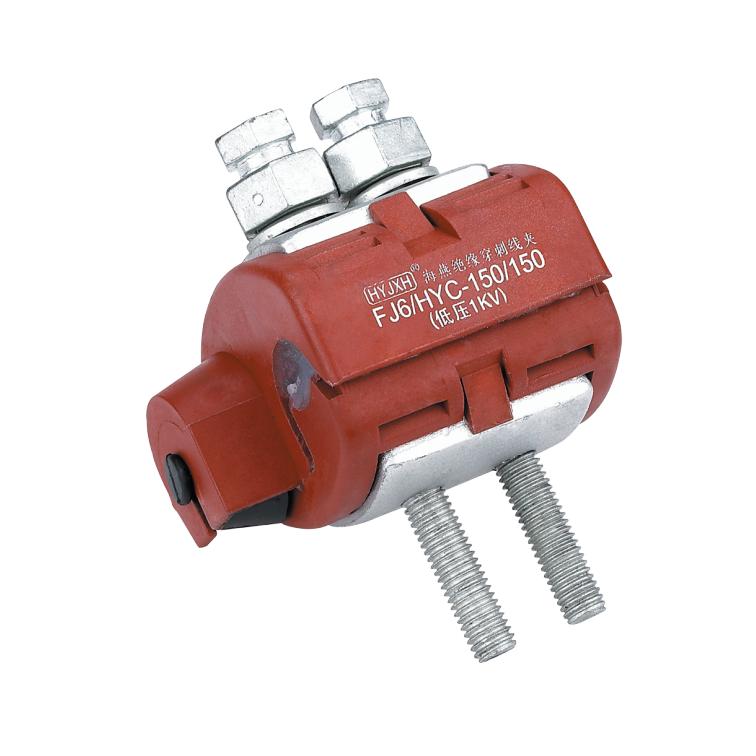

	FJ6/HYC/V0-150/150 Applicable Voltage: 1 kV Main Conductor Range (Input): 35-150 mm² Branch Conductor Range (Output):35-150 mm² Nominal Current: 342A Overall Dimensions: A59.5 × B68 × H93 mm Bolt Quantity: 2 pcs Order Number: 212593

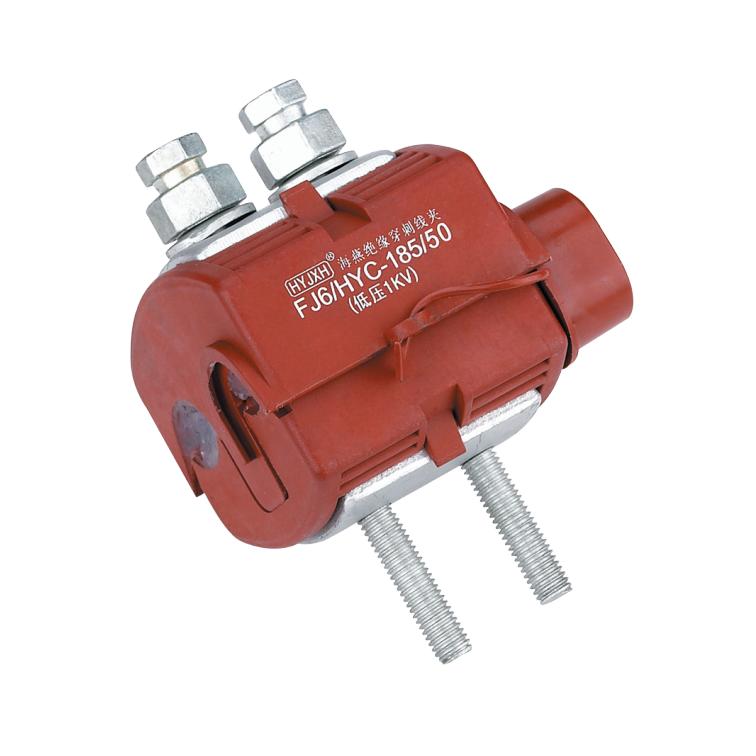

	FJ6/HYC/V0-185/50 Applicable Voltage: 1 kV Main Conductor Range (Input): 95-185 mm² Branch Conductor Range (Output):16-50 mm² Nominal Current: 162A Overall Dimensions: A78.5 × B80 × H113 mm Bolt Quantity: 2 pcs Order Number: 212594

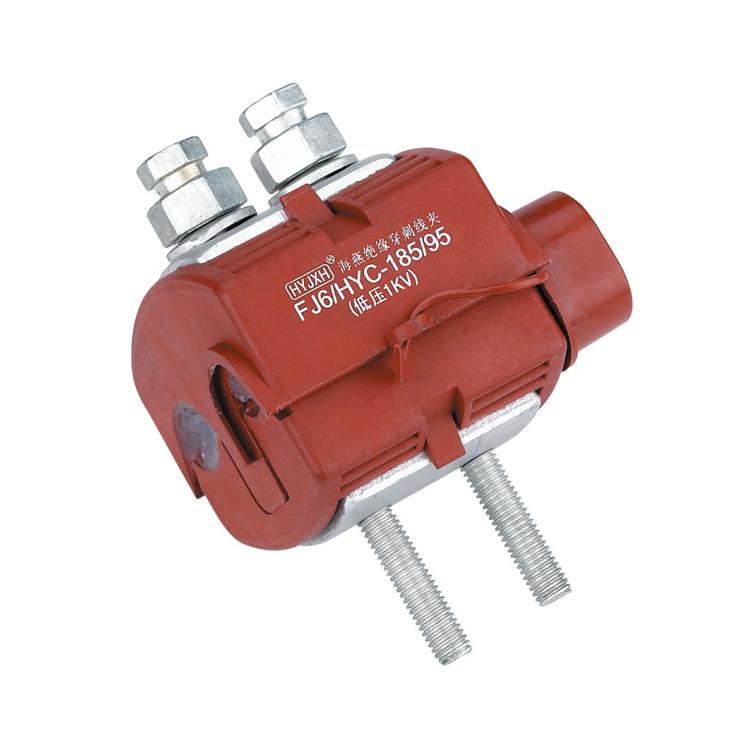

	FJ6/HYC/V0-185/95 Applicable Voltage: 1 kV Main Conductor Range (Input): 70-185 mm² Branch Conductor Range (Output): 16-95 mm² Nominal Current: 257A Overall Dimensions: A78.5 × B80 × H113 mm Bolt Quantity: 2 pcs Order Number: 212595
	FJ6/HYC/V0-240/150 Applicable Voltage: 1 kV Main Conductor Range (Input): 95-240 mm² Branch Conductor Range (Output): 50-150 mm² Nominal Current: 342A Overall Dimensions: A84 × B83 × H113 mm Bolt Quantity: 2 pcs Order Number: 212596

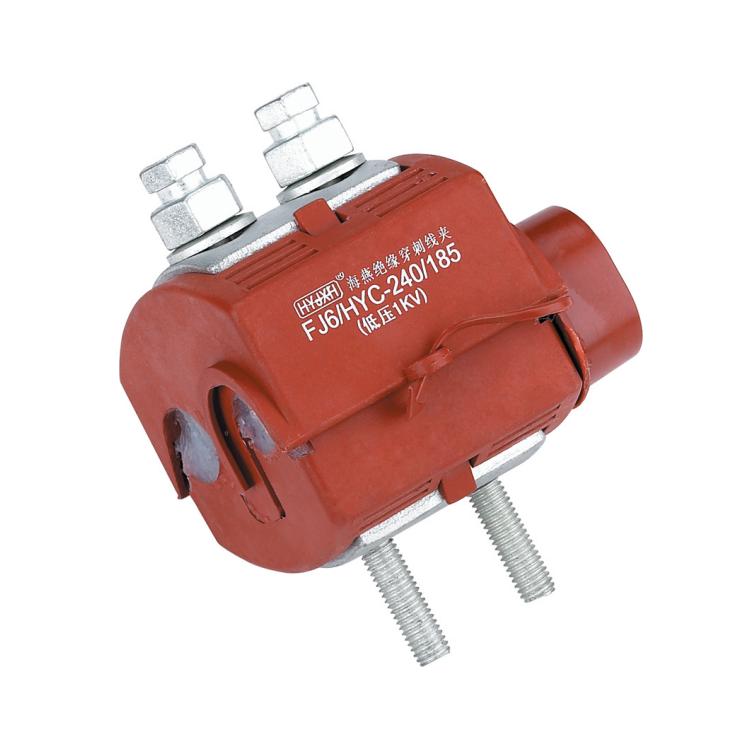

	FJ6/HYC/V0-240/185 Applicable Voltage: 1 kV Main Conductor Range (Input): 95-240 mm² Branch Conductor Range (Output): 70-185 mm² Nominal Current: 399A Overall Dimensions: A84 × B83 × H113 mm Bolt Quantity: 2 pcs Order Number: 212597

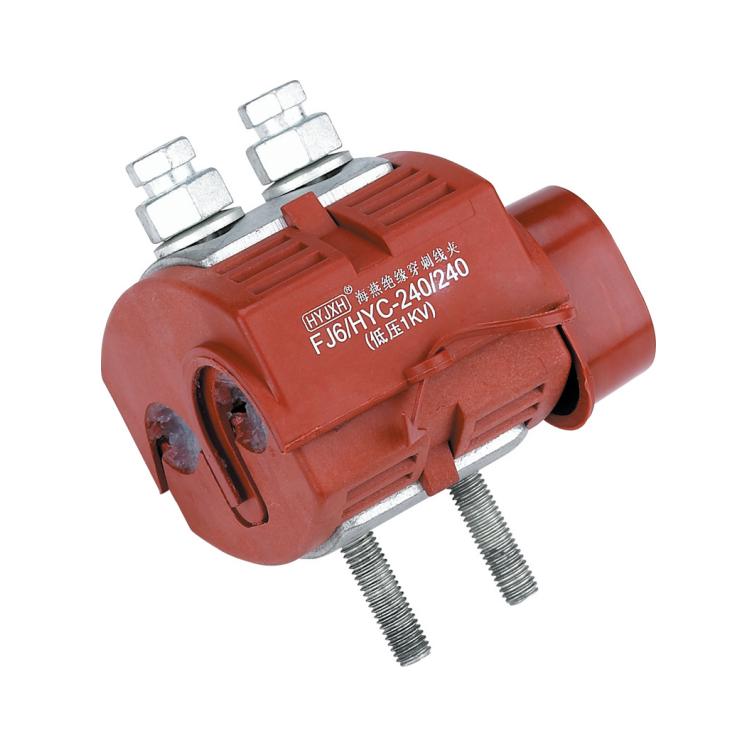

	FJ6/HYC/V0-240/240 Applicable Voltage: 1 kV Main Conductor Range (Input): 95-240 mm² Branch Conductor Range (Output): 95-240 mm² Nominal Current: 476A Overall Dimensions: A89 × B85.5 × H113 mm Bolt Quantity: 2 pcs Order Number: 212598

Installation and Operation

• Install and secure the medium-voltage insulated conductor using standard methods.
• Remove the required length of outer sheath at the branching position without damaging the insulation layer.
• Prepare the branch conductor and strip the sheath at both ends according to MV installation requirements.

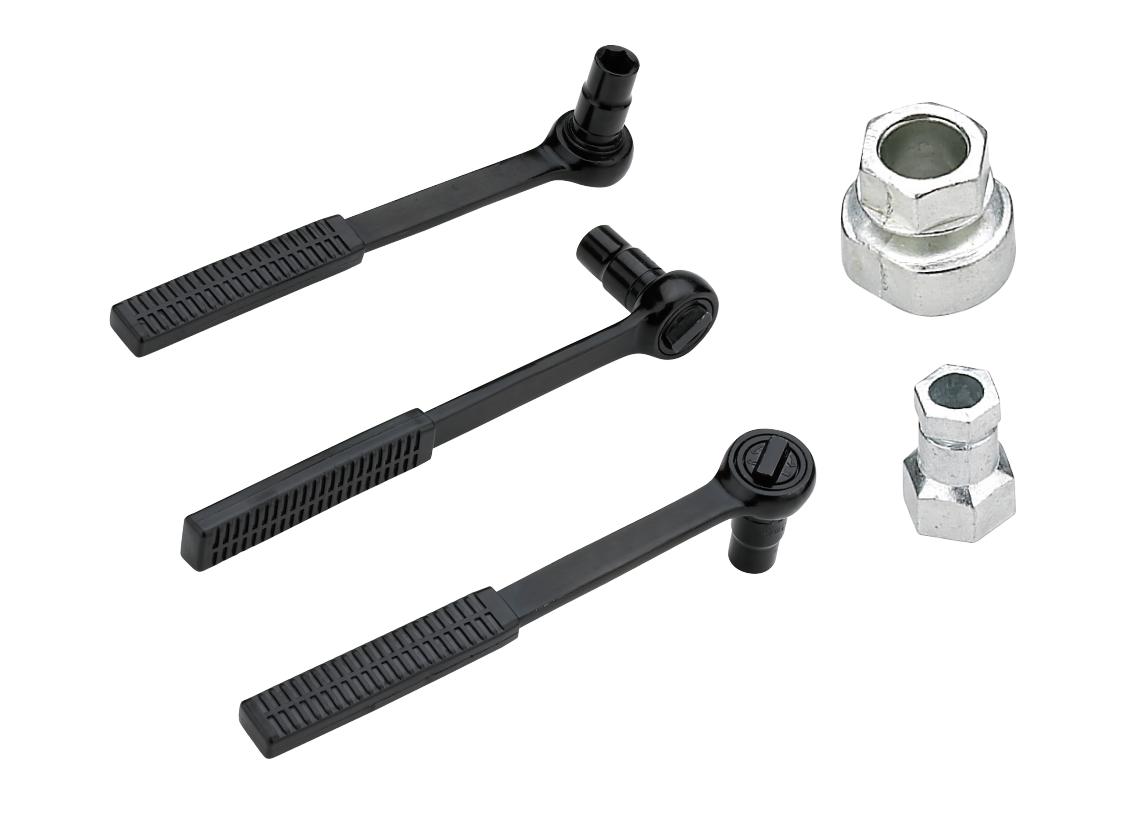

• Install the connector on the exposed section and tighten the shear-head bolts sequentially until they shear off.
